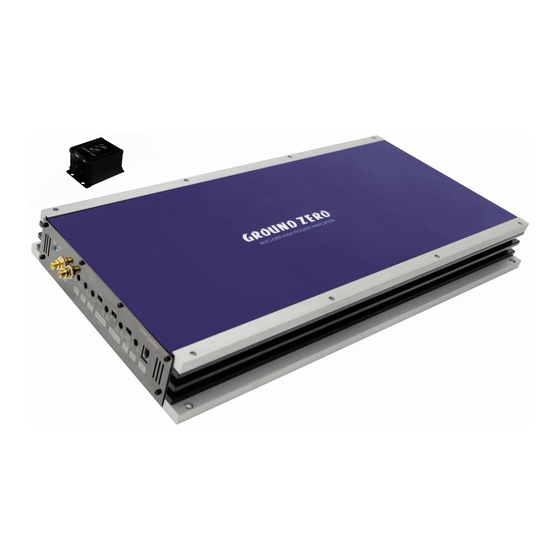

Amplifier
Owner's Manual
NUCLEAR
GZNA 2800XII
PLEASE READ BEFORE INSTALLATION
Thank you for selecting a Ground Zero amplifier.
We are providing a helpful hints list which should keep you from experiencing
unnecessary shut down.
Have fun with this high quality Uranium product.
Features
•
1 Ohm stable stereo (0,5 Ohm stable at music operation)
•
2 Ohm stable bridged (1 Ohm stable at music operation)
•
Dual Mosfet power supply
•
SMD Technology
•
Power & Protection indicator
•
Variable 12dB Bass Boost
•
High pass filter (Subsonic filter) with 1/10 switch variable to 4000Hz
•
Low pass filter with 1/10 switch variable to 4000Hz
•
Variable phase shift 0-180°
•
Adjustable input sensitivity
•
Soft delayed remote turn- on
•
Remote control
•
Thermal / Short / Overload protection
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ground Zero NUCLEAR GZNA 2800XII
Summary of Contents for Ground Zero NUCLEAR GZNA 2800XII
- Page 1 PLEASE READ BEFORE INSTALLATION Thank you for selecting a Ground Zero amplifier. We are providing a helpful hints list which should keep you from experiencing unnecessary shut down. Have fun with this high quality Uranium product. Amplifier Features Owner’s Manual •...
-
Page 2: Planning Your System
Nuclear amplifier Planning your system Due to their state- of- the- art technology and high efficiency, these amplifiers help your system to provide an Before beginning the installation, consider the following: impressive sound experience. The modern circuit technology of the power supply and the signal processing allows achieving maximum performance levels from the provided power. -
Page 3: Power Connection
Power connection Controls and functions... -
Page 4: Controls And Functions
Controls and functions Connecting the speaker Speaker terminals For connection of the speakers GND -> Ground connection Power terminals REM -> Remote antenna terminal BATT -> +12 Volt BLUE – OK Satus indication RED – Error Terminal for connection of the RCA wires. Cinch inputs To avoid failure, please use high quality RCA wires. -
Page 5: Specifications
Trimode operation Specifications Model GZNA 2800XII RMS Power @ 4 Ω 2 x 430W (1% THD+N) 2 x 520W CEA Standard CEA-2006-A (10% THD+N) RMS Power @ 2 Ω 2 x 800W (1% THD+N) 2 x 950W (10% THD+N) CEA Standard CEA-2006-A RMS Power @ 1 Ω... -
Page 6: Troubleshooting Guide
No power to the amplifier Check power wire or connections De Garantie bepalingen van alle door ground zero geleverde producten is volgens wettelijke Amp not switching on No power to remote wire with bepalingen geregeld, Een retourzending kan alleen na duidelijke afspraak en in de originele Check connections to radio verpakking plaatsvinden.SVP een aankoopbon en een duidelijke storingsomschrijving...
