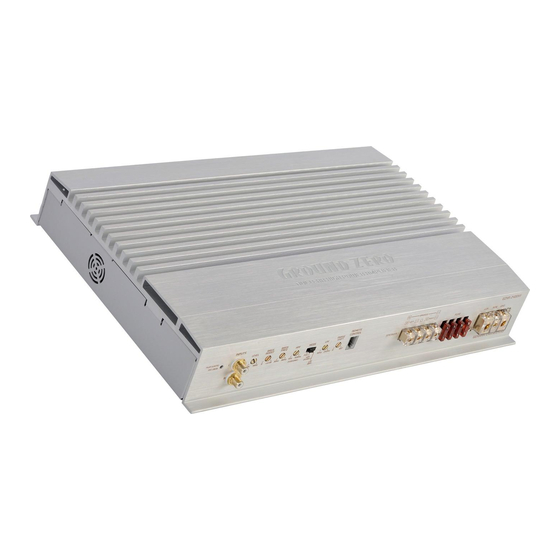

HYDROGEN-SERIES
GZHA 2400XII
1 Ohm stable Stereo
2 Ohm bridgeable
Mosfet power supply
SMD Technology
Power & Protection indicator
Variable 12dB bass boost (30 – 80 Hz)
Phaseshift variable 0 - 180°
Variable highpass / subsonic
Variable lowpass
Adjustable input sensitivity
Soft delayed remote turn- on
Bass remote control
Thermal / Short / Overload protection
AMPLIFIER
OWNER'S MANUAL

Features

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDROGEN GZHA 2400XII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ground Zero HYDROGEN GZHA 2400XII

  • Page 1 HYDROGEN-SERIES AMPLIFIER OWNER’S MANUAL GZHA 2400XII Features • 1 Ohm stable Stereo • 2 Ohm bridgeable • Mosfet power supply • SMD Technology • Power & Protection indicator • Variable 12dB bass boost (30 – 80 Hz) • Phaseshift variable 0 - 180° •...
  • Page 2 Tools and materials you need • Screwdriver • Electric drill, 3 mm / 0.12” carbide drill bit • Mounting screws • Power wire min. 25 mm² / 4AWG • Ground wire min. 25 mm² / 4AWG • Speaker wire min. 2 x 2,5 mm² / 13AWG Please note! •...
  • Page 3 Controls and functions - 3 -...
  • Page 4 Controls and functions Speaker terminals For connection of the speakers GND -> Ground connection Power terminals REM -> Remote antenna terminal BATT -> +12 Volt WHITE – OK Status indication RED – Error Terminal for connection of the RCA wires. RCA inputs To avoid failure, please use high quality RCA wires.
  • Page 5 Stereo wiring Mono wiring - 5 -...
  • Page 6 Trimode wiring Trimode crossover TRI MODE operation output allows a subwoofer to be operated in mono mode while the main speakers are playing in stereo. Leave the crossover switch on “Full” position. Use 100 volt, non-polar capacitors for a high pass crossover to filter out low frequencies and Air- core or Ferrit-core coils with a minimum diameter of 1 mm / 0.039”...
  • Page 7 Specifications Model GZHA 2400XII Type 2 Kanal Class AB RMS Power @ 4 Ω 2 x 270 W (1% THD+N) CEA Standard CEA-2006-A RMS Power @ 2 Ω 2 x 480 W (1% THD+N) CEA Standard CEA-2006-A RMS Power @ 1 Ω 2 x 750 W (1% THD+N) 2 x 900 W...
  • Page 8 We reserve the right to make needed change or improvement to the product without informing customer about this in advance. De Garantie bepalingen van alle door ground zero geleverde producten is volgens wettelijke bepalingen geregeld, Een retourzending kan alleen na duidelijke afspraak en in de originele verpakking plaatsvinden.SVP een aankoopbon en een duidelijke storingsomschrijving bijvoegen.Van garantie uitgesloten zijn defecten door...
