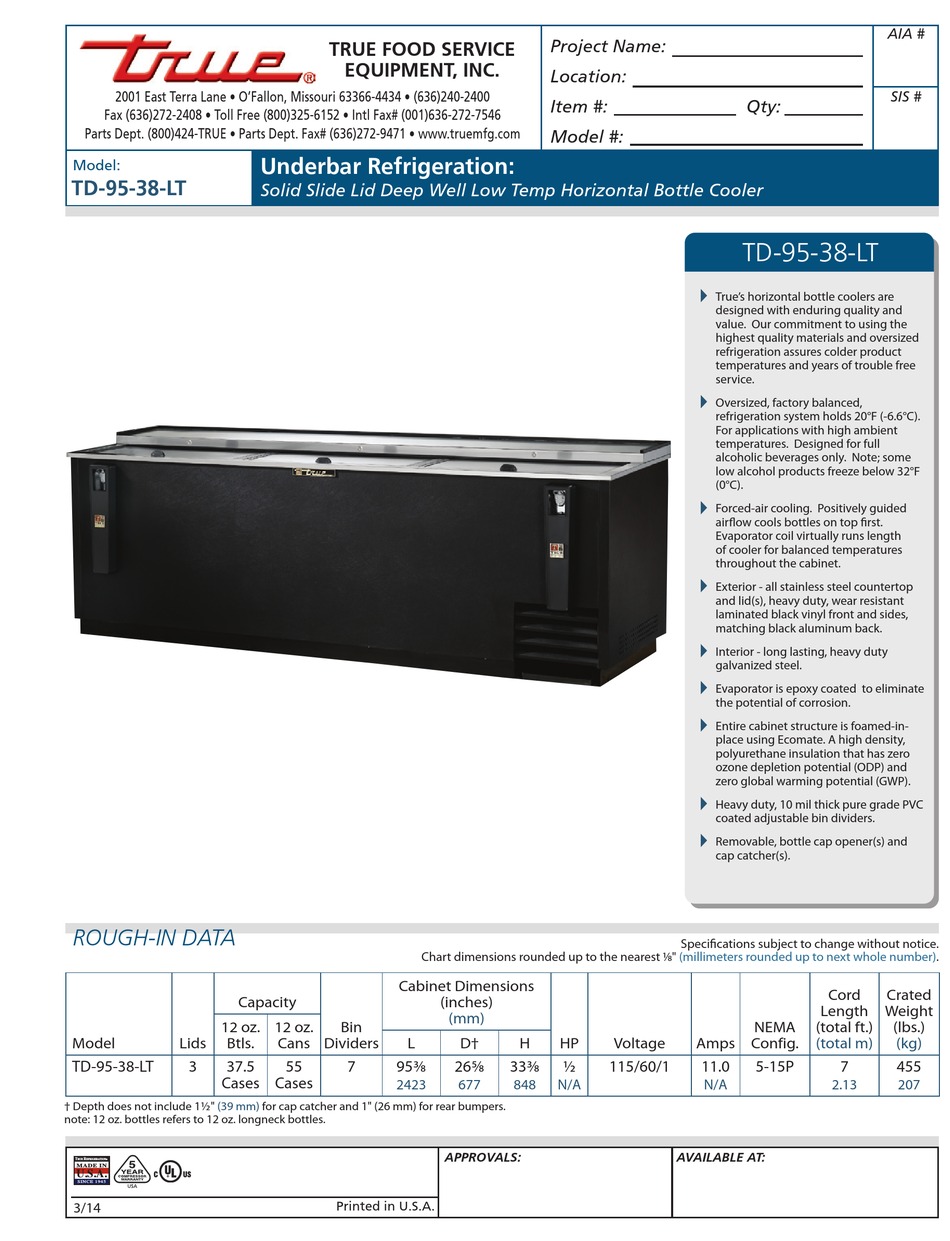

True TD-95-38-LT Specifications

2001 East Terra Lane • O'Fallon, Missouri 63366-4434 • (636)240-2400
Fax (636)272-2408 • Toll Free (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
TD-95-38-LT
ROUGH-IN DATA
Capacity
12 oz.
Model Lids Btls.
TD-95-38-LT 3 37.5
Cases
† Depth does not include 11/2" (39 mm)
note: 12 oz. bottles refers to 12 oz. longneck bottles.
T R
RUE EFRIGERATION
®
MADE IN
U.S.A.
SINCE 1945
3/14
TRUE FOOD SERVICE
EQUIPMENT, INC.
Underbar Refrigeration:
Solid Slide Lid Deep Well Low Temp Horizontal Bottle Cooler
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
12 oz. Bin
Cans Dividers L
55 7 953/8
Cases
2423
for cap catcher and 1" (26 mm) for rear bumpers.
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
(inches)
(mm)
D† H HP Voltage
265/8 333/8 1/2 115/60/1
677 848 N/A
APPROVALS:
Qty:
TD-95-38-LT

True's horizontal bottle coolers are
designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

Oversized, factory balanced,
refrigeration system holds 20°F (-6.6°C).
For applications with high ambient
temperatures. Designed for full
alcoholic beverages only. Note; some
low alcohol products freeze below 32°F
(0°C).

Forced-air cooling. Positively guided
airflow cools bottles on top first.
Evaporator coil virtually runs length
of cooler for balanced temperatures
throughout the cabinet.

Exterior - all stainless steel countertop
and lid(s), heavy duty, wear resistant
laminated black vinyl front and sides,
matching black aluminum back.

Interior - long lasting, heavy duty
galvanized steel.

Evaporator is epoxy coated to eliminate
the potential of corrosion.

Entire cabinet structure is foamed-in-
place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

Heavy duty, 10 mil thick pure grade PVC
coated adjustable bin dividers.

Removable, bottle cap opener(s) and
cap catcher(s).
Specifications subject to change without notice.
(millimeters rounded up to next whole
Cord
Length
NEMA (total ft.)
Amps Config. (total m)
11.0 5-15P 7
N/A 2.13
AVAILABLE AT:
AIA #
SIS #
number).
Crated
Weight
(lbs.)
(kg)
455
207
