Getting to know
the FD100 Terminal

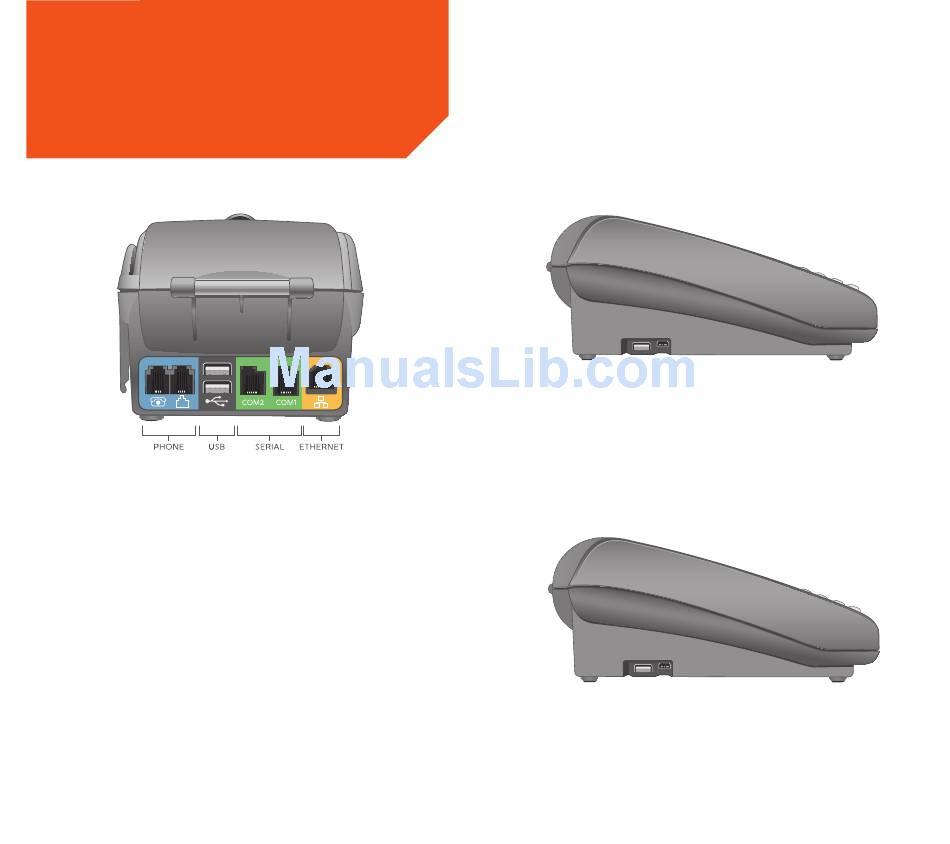

Port connections
The ports on the back of the FD100 Terminal enable you
to process transactions and add peripherals such as a
check reader.
Phone (blue)
For dial-up transactions using a phone line.
USB (gray) and Serial (green)
You may connect additional peripherals to the USB or COM
ports, such as the FD10 and/or FD10C, ViVOpay
MagTek MiniMICR, and MagTek
®
Ethernet (yellow)
For Internet transactions using Cable or DSL.
4
4000,
®
MICRImage.
®
Ports for additional peripherals
A third USB port and a mini USB port allow you to connect
additional devices, such as the FD10 and/or FD10C, ViVOpay
4000, MagTek MiniMICR, and MagTek
®
AC input
To connect your power supply to a wall outlet.
®
MICRImage.
®
