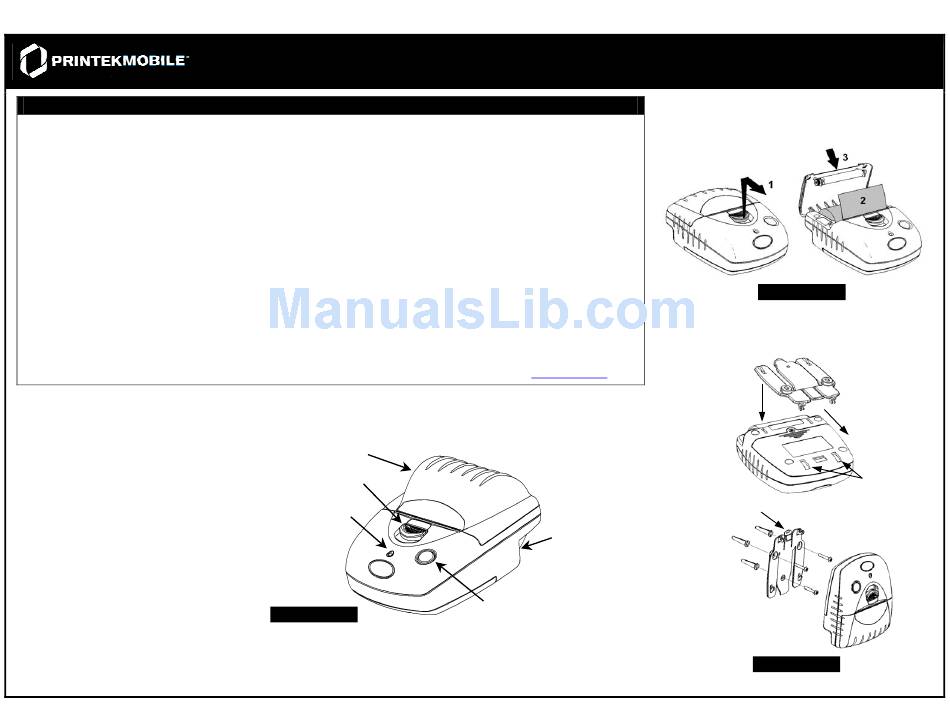

Printekmobile LCM25 Quick Setup Instructions

Before Using Your Printer:

• Refer to Figure A to become familiar with the features of the LCM25 Desktop printer.
• Attach the Wall Mount if Desired – (Sold Separately, Refer to Figure C):
1. Fasten the bracket to a wall using the supplied anchors and self tapping screws.
2. Remove the two "breakouts" using a small screwdriver.
3. Insert the Belt Clip/Wall Mount Bracket into the four holes on the back of the printer.
4. Slide the printer down onto the bracket until it "snaps" into place. The printer may be removed from the bracket by using
the Printer Release tab.
• Connect the Power Adapter
™
1. Connect a PrintekMobile power adapter (sold separately) to the appropriate power source and plug the cable into the printer's
Power Connector.
• Load Paper – (Refer to Figure B)
1. Slide the paper lid release button toward the front of the printer until the lid opens.
2. Place the paper in the paper compartment with a small amount of paper extending from the top of the printer.
3. Close the paper lid until it "snaps" closed.
• Perform a Self Test – "Double-click" the Paper Feed button.
Notes: • Use Only Printek Power Adapters.
• Always use Genuine Printek Paper & Labels to ensure optimal performance.
For more information, refer to the LCM25 Desktop Printer Operator's Manual. You may download this manual at www.printek.com.
Printek, Inc.
1517 Townline Road
Benton Harbor, MI 49022
800-368-4636
Printek is a registered trademark of Printek, Inc.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
IrDA is a registered trademark of the Infrared Data Assoc.
LCM25 Desktop Printer Quick Setup Instructions
Paper Lid
Paper Lid Release
Status Indicator
Figure A
Printer Release Tab
Power Connector
on Rear
Paper Feed Button
Figure B
3
4
2
1
Figure C
