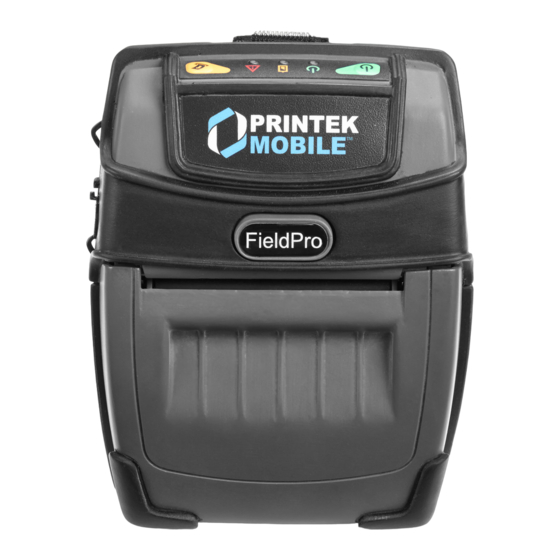

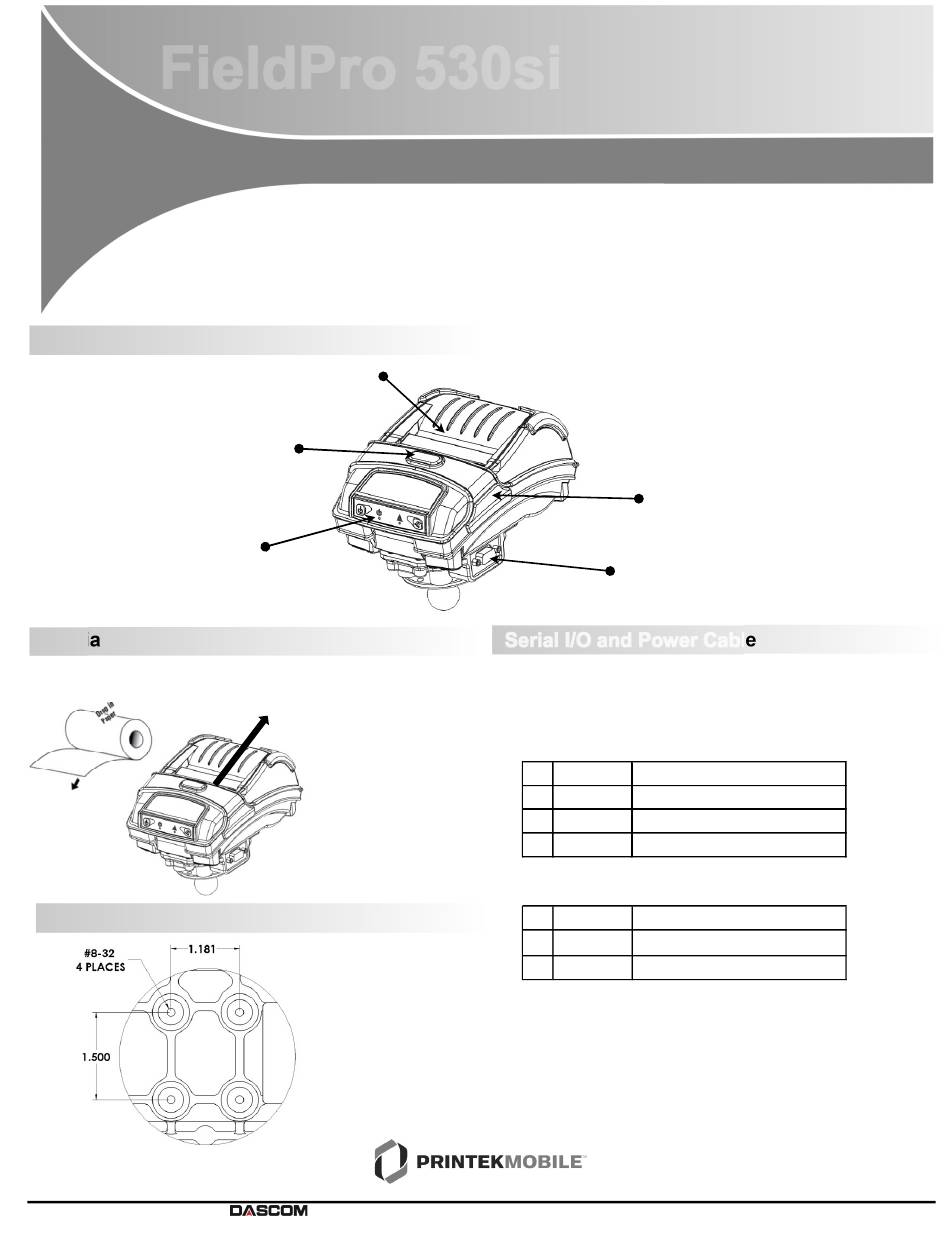

FieldPro 530si
This guide provides information on the daily use of the FieldPro 530si printer.
For additional information, please refer to the FieldPro 530si User Guide.
Printer features
Paper door release button
Control Panel
Media
Tear paper
towards back of
printer
Mount Dimensions
© 2015 Printek LLC. A
Quick Start Guide
Paper Door
Press Paper
door release
button to open
the paper
compartment.
Pull small
leader of paper
out and close
paper door. "
Clicks" when
properly
closed.
Drivers, User Manuals, and SW Utilities available @ www.printek.com
company. 3515 Lakeshore Drive, St. Joseph, MI 49085
USB connector
under I/O cover.
Serial I/O and
Power Connector
Serial I/O and Power Cable
Use table to connect Power and RS232 serial communication.
Serial Cable
Pin Color
Description
2 White
Receive data (from Host)
3 Red
Transmit data (from Printer)
5 Black
Ground
Power Cable
Pin Color
Description
5 Black
Ground
8 Red
Power
PH: 269-925-3200
Part 7661 Rev B
