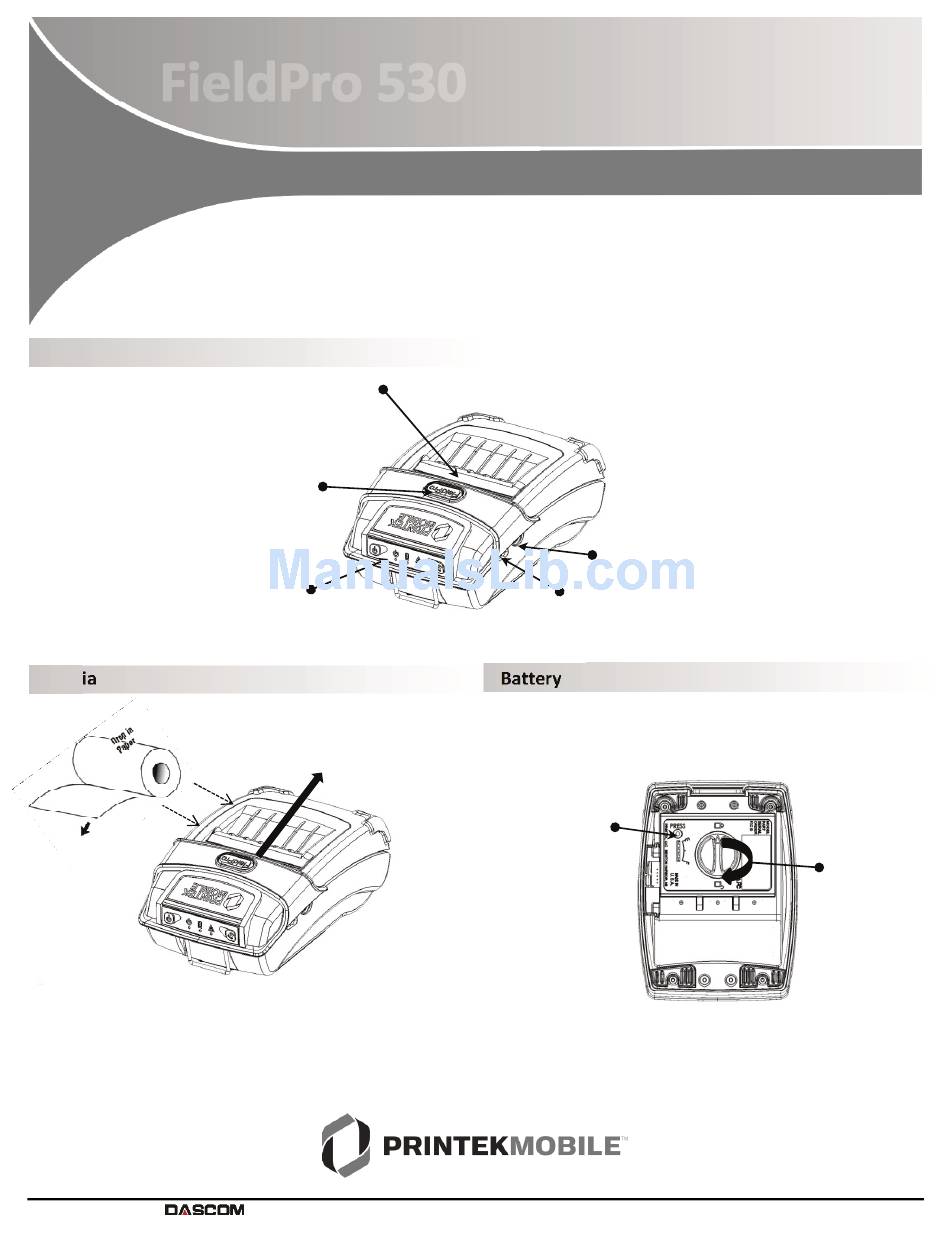

Printekmobile FieldPro 530 Quick Start Manual

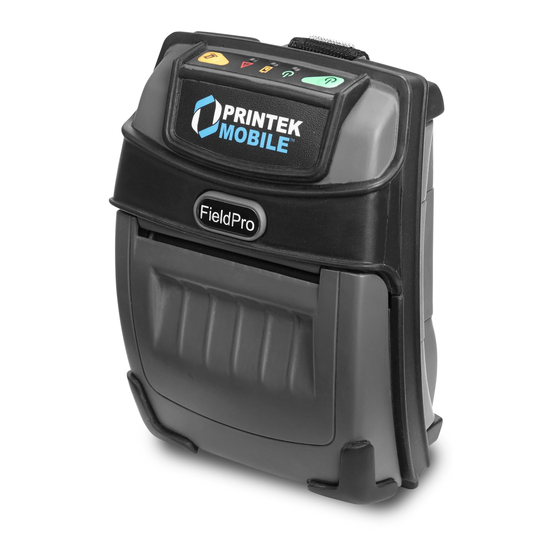

FieldPro 530
This guide provides information on the daily use of the FieldPro 530 printer.
For additional information, please refer to the FieldPro 530 User Guide.

Printer features

Paper door release button
Media
Press Paper door release button to
open the paper compartment door.
Pull small leader of paper out and
close paper door. " Clicks" when
properly closed.
© 2015 Printek LLC. A
Quick Start Guide
Paper Door
Control Panel
Tear paper
towards back of
printer
NOTE:
When using
2" paper,
install spacer
P/N: 93194
Drivers, User Manuals, and SW Utilities available @ www.printek.com
company. 1517 Townline Road, Benton Harbor, MI 49022 PH: 269-925-3200 FX: 888-211-3400
Power Port
USB Data Port
Battery
Press button to see
battery charge level.
4LED 100% charge
3LED 75%
2LED 50%
1LED 25%
Use Bay Chargers or
AC/DC Power
Adapter to charge.
Please contact your Printek
sales representative for
price and availability.
Loosen hand strap
(not pictured) to
access battery
door.
o
Rotate knob 180
to unlock battery
door.
Drop in battery.
Close battery door
and rotate knob
o
to lock.
180
Part 7267 Rev C
