Orion Multi Function Controller User Manual page 11

New Multi Function Controller

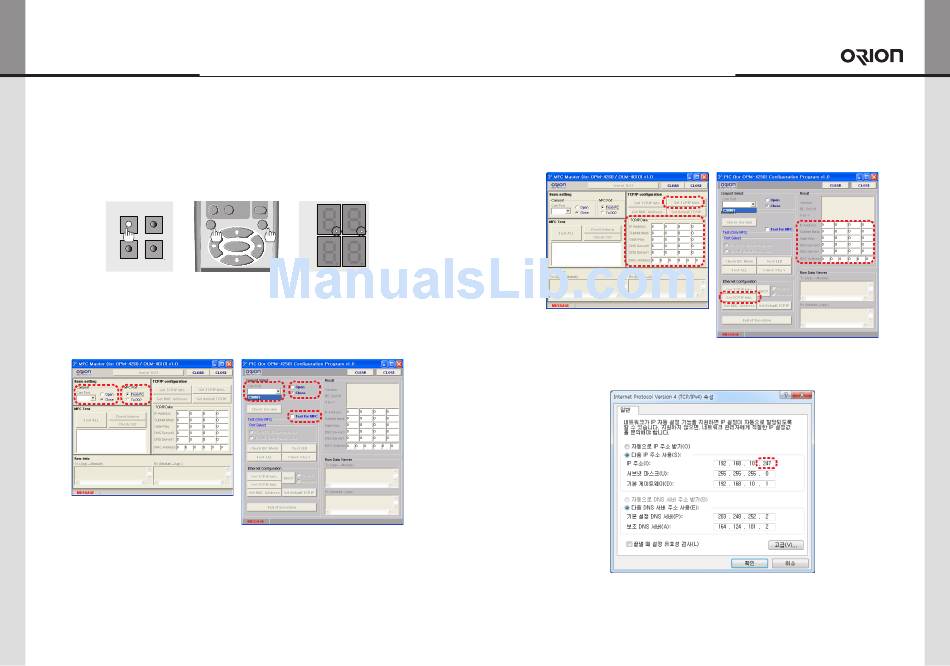

„ IP address (In case of connecting directly to user's computer)
1
1) Change to IR mode and press B>B>A>A buttons in the remote controller sequentially.
4
When the two LED dots in upper 7-segment are turned on, test mode is started.
7
IR ETHERNET
SET
A
RS232 USB
DVI
VIDEO
2) Load the provided program by executing "MFC Master.exe" in your computer.
(MFC-4250 : PIC Configuration.exe)
DVIC1
Match the Com Port and press "OPEN" and click "From PC"
Match the Com Port and press "OPEN" and click "Test for MFC"
REMOTE CONTROL
18 | ORION CO., LTD.
ON OFF
BROADCAST
ON
2 3
OFF
5 6
DVI 1
8 9
DVI 2
0
HOR
B
INFO
VER
INPUT SELECT
PC DTV HDMI
S-VIDEO HDSDI
DVIC2 INFO AUTO
OUTPUT FUNCTION
(MFC-4250)
(MFC-4250)
3) Click "GET TCP/IP Info." and check the network informations.
4) Input the network information of the user's PC to be identical with MPDP set.
However, the final digit of the IP address must be different.
(MFC-4250)
ORION CO., LTD. | 19
