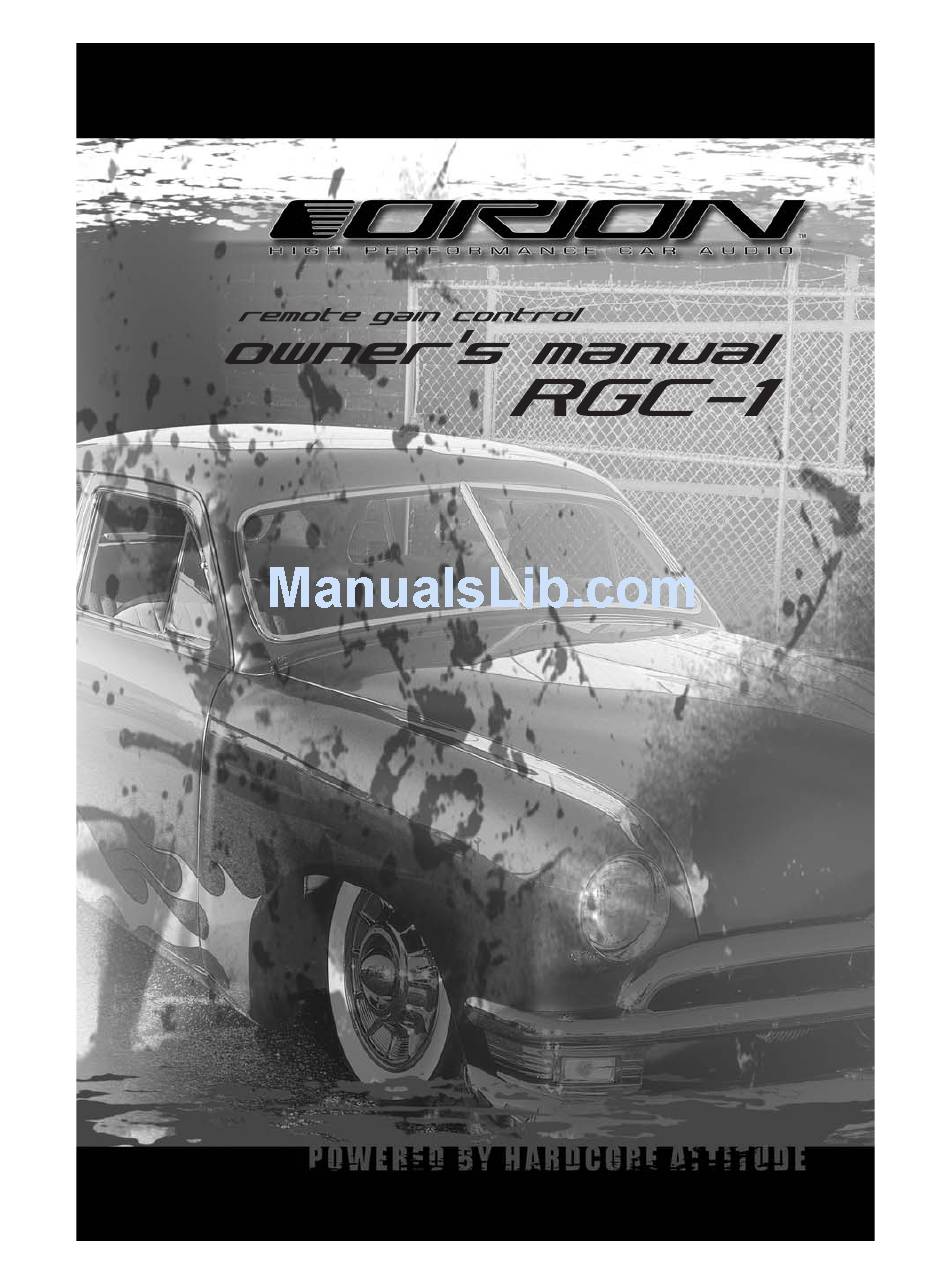

Orion RGC-1 Owner's Manual

Remote gain control

Table of Contents

Need help?

Do you have a question about the ORION RGC-1 and is the answer not in the manual?

Page 2 INTRODUCTION The RGC-1 remote gain control is specifically designed for use with ORION amplifiers. The RGC-1 allows dashboard control to your current Orion amplifier or earlier XTR, XTR Pro or HCCA amplifier. Used on subwoofer amplifiers, it provides subwoofer level control. Used on the first amplifier in a daisy-chain, it works as a remote pre-amp volume control.
Page 3 Under Dash Mounting In-Dash Mounting Note: There must be enough clearance behind the dash-panel before selecting the location to mount the RGC-1. A 1/2-inch hole must be drilled to mount the RGC-1 in the dash panel. Side in the control from the rear of the dash panel and place the trim label on the threaded shaft.
Page 4 ADJUSTMENT PROCEDURE 1. Set the gain controls of the amplifier according to the “Adjusting the Sound of Your System” in your owner’s manual. The amplifier primary gain controls determine the maximum allowed output level that the amplifier. 2. Set the control knob of the RGC-1 to its mid-rotation position. 3.
Page 5 Warranty LIMITED TWO YEAR CONSUMER WARRANTY: Directed Electronics, Inc. promises to the original purchaser, to replace this product should it prove to be defective in workmanship or material under normal use, for a period of two years from the date of purchase by the dealer as indicated by the date code marking of the product PROVIDED the product was installed by an authorized Directed dealer.
