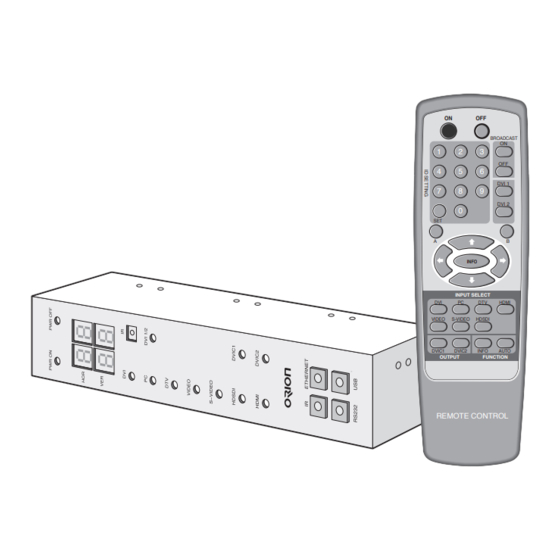

New Multi Function Controller
Thank you for purchasing our New Multi Function Controller.
Please read through this user's manual for safety before installing this product.
This product is manufactured for Multi Plasma display model only.
ON
OFF
BROADCAST
ON
1
2
3
OFF
4
5
6
DVI 1
7
8
9
DVI 2
0
SET
A
B
INFO
INPUT SELECT
DVI
PC
DTV
HDMI
VIDEO
S-VIDEO
HDSDI
DVIC1
DVIC2
INFO
AUTO
OUTPUT
FUNCTION
REMOTE CONTROL
User's Manual
Advertisement
Table of Contents
Related Manuals for Orion Multi Function Controller
Summary of Contents for Orion Multi Function Controller
- Page 1 Tel : +82-2-6678-8533, Fax: +82-2-6678-8599 OUTPUT FUNCTION REMOTE CONTROL User's Manual Thank you for purchasing our New Multi Function Controller. Please read through this user's manual for safety before installing this product. This product is manufactured for Multi Plasma display model only.
-
Page 2: Table Of Contents
New MFC ..................7 REMOTE CONTROL 04. New MFC Installation ............9 05. How to use Remote Controller ........11 Remote Controller : 1EA Multi Function Controller : 1EA 05-1. Power ON/OFF ..............11 05-2. BROADCAST ..............11 05-3. AUTO Tracking ............12 (MFC-4250) 05-4. DVI Selector ............12... -
Page 3: Safety Precautions
New Multi Function Controller Safety Precautions Cautions for New MFC Cautions for Adapter ƒ Please do not use at the places of hot ƒ Do not touch the power cable with wet ƒ Do not store or use flammables like a ƒ... -
Page 4: Introduction
Introduction Remote Controller (For MFC-4250) New MFC (Multi Function Controller) is designed for functional expansion and compensation * This Remote Controller is only for the MFC-4250. in communication and users’ convenience. It provides various communicational interfaces * This Remote Controller can control the OPM-4250 and DVI-Converter. -
Page 5: New Mfc
New Multi Function Controller Remote Controller (For MFC-4260, MFC-MLCD) New MFC 1. Front side * This Remote Controller is only for the MFC-4260. * This Remote Controller can control the OPM-4260, MLCD and e-Board. POWER ON/OFF Turn on/off product. - Page 6 New Multi Function Controller New MFC Installation 2. Rear side 1. Connect RS-232C cable and a power adapter and install at the location of good remote control reception. Use L-brackets to install at the side of the set. 2. Connect a computer and the New MFC with at least one of Ethernet, RS-232C, and USB port and connect the product to the RS-232C output in the New MFC.
-
Page 7: How To Use Remote Controller
New Multi Function Controller How to use Remote Controller DVI-D_1 DVI-D_1 DVI-D_1 RS-232C RS-232C RS-232C OUTPUT INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT OUTPUT OUTPUT 05-1. Power ON/OFF ID 1 ID 2 ID 3 Every command is executed on all product sets. -
Page 8: Auto Tracking (Mfc-4250)
New Multi Function Controller BROADCAST DVI 1 DVI 2 05-3. AUTO Tracking 05-7. Communication Mode change (MFC-4250) INFO It is available only with PC mode. When it is connected with DVI converter, There are four interface, Ethernet, USB, RS-232C, and IR (Remote control). - Page 9 New Multi Function Controller 2. Ethernet mode „ IP address (In case of connecting to a LAN HUB) BROADCAST 1) Change to IR mode and press B>B>A>A buttons in the remote controller sequentially. Ethernet interface is based on TCP/IP Protocol. According to DHCP setting, it can be When the two LED dots in upper 7-segment are turned on, test mode is started.
- Page 10 New Multi Function Controller 3) Match the Com Port and press "OPEN" and click "From PC" 5) Click "SET TCP/IP Info". Match the Com Port and press "OPEN" and click "Test for MFC" (MFC-4250) (MFC-4250) 6) Click "GET TCP/IP Info." and Confirm the IP Address.
- Page 11 New Multi Function Controller „ IP address (In case of connecting directly to user's computer) 3) Click "GET TCP/IP Info." and check the network informations. BROADCAST 1) Change to IR mode and press B>B>A>A buttons in the remote controller sequentially.
- Page 12 New Multi Function Controller 3. Serial mode 4. USB mode Serial communication is performed based on RS-232C specification. New MFC allows USB communication is performed based on RS-232C specification too. The external interface long distance communication by compensating communication signals, because the signal is USB type and it is converted to RS-232C internally.
-
Page 13: Input Selection
New Multi Function Controller 05-8. Input Selection „ How to install USB driver (MFC-4260, MFC-MLCD) 1) Download a proper driver that fits FT232R type from http://www.ftdichip.com/Drivers/VCP. 1) When the input source of the product is selected by MSCS program on the computer or htm. - Page 14 New Multi Function Controller BROADCAST DVI 1 Input Selection „ Input Selection (MFC-4250) DVI 2 All inputs are executed as full screen mode. 1) When the input source of the DVI converter is selected by MSCS program on the computer or the remote controller of New MFC, the corresponding LED is turned on.
-
Page 15: X X Y Configuration (E.g. Horizontal 5 Sets X Vertical 6 Sets)
New Multi Function Controller BROADCAST DVI 1 DVI 2 INFO 05-9. X x Y Configuration 4. VIDEO (e.g. Horizontal 5 sets x Vertical 6 sets) 1) Press VIDEO button. INPUT SELECT The screen setting will be turned into full screen mode automatically after the configuration... -
Page 16: Baud-Rate Configuration
New Multi Function Controller BROADCAST 05-10. Baud-Rate Configuration „ Vertical configuration DVI 1 1) Press SET button. DVI 2 1) New MFC can be used as a communicational distributor for any devices with its various 2) Press Up and Down buttons sequentially to enter the vertical communicational speeds. -
Page 17: Before Calling For Service
New Multi Function Controller Before calling for service Specification Before calling for service, check the following and then contact the dealership Product Name Specification where you purchased this product. Name REMOTE CONTROL Power 1.5V Battery(AAA) 2EA 1. New MFC is not turned off even after product power cable is... - Page 18 New Multi Function Controller MEMO | ORION CO., LTD.
