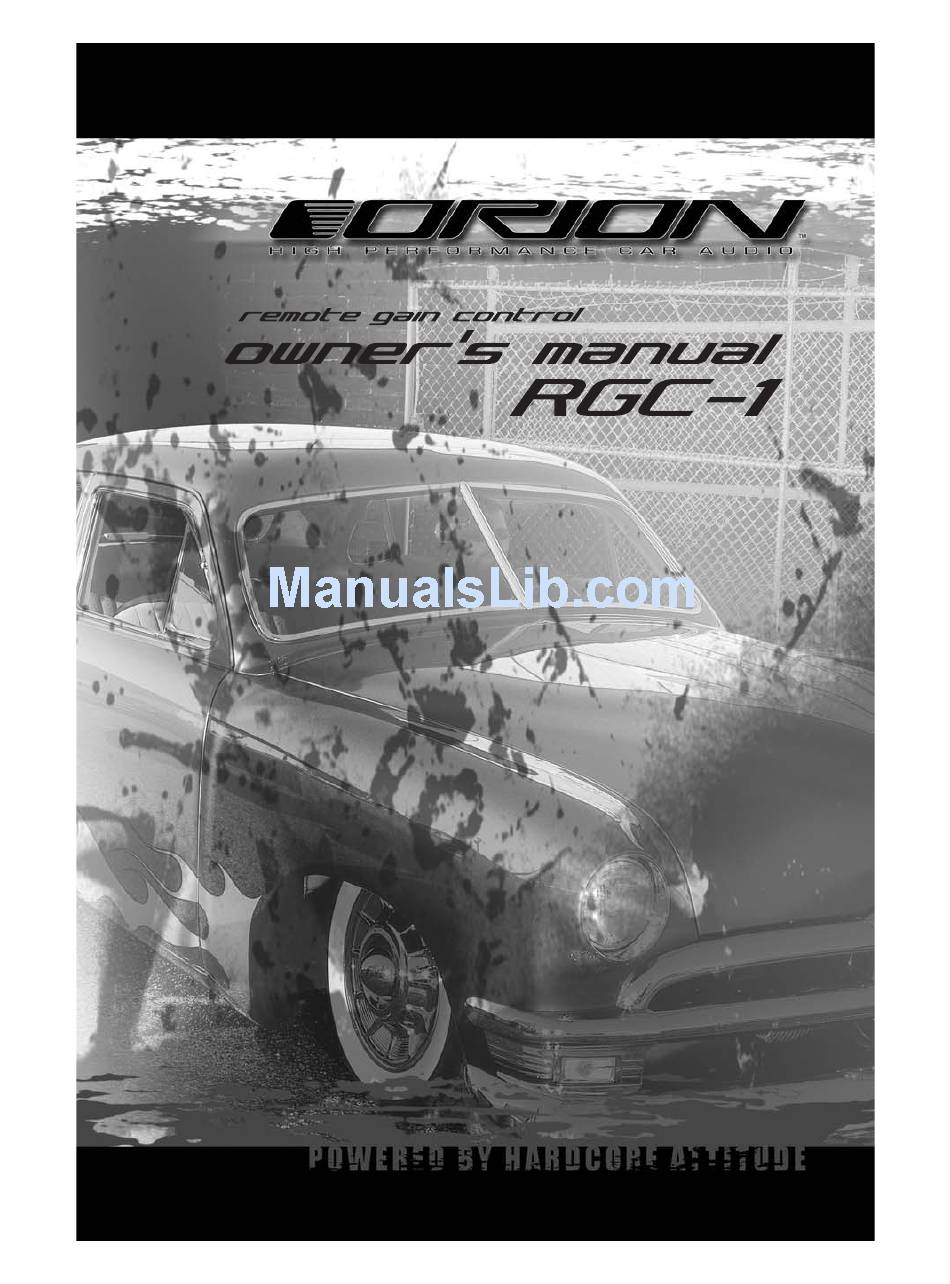

Orion RGC-1 Owner's Manual

Remote gain control
Hide thumbs


Advertisement

Advertisement

Table of Contents
loading

  Related Manuals for Orion RGC-1

  Summary of Contents for Orion RGC-1

  • Page 2: Operation

    INSTALLATION Under Dash Mounting To mount the RGC-1 under the dash or in an area that cannot be drilled through to accom- modate the control, use the supplied under dash mounting bracket. Find a suitable location which will not interfere with driving that is easy to reach. Mount the bracket in place using the 2 screws and secure the RGC-1 to the bracket as shown below.
  • Page 3: In-Dash Mounting

    RGC-1. A 1/2-inch hole must be drilled to mount the RGC-1 in the dash panel. Side in the control from the rear of the dash panel and place the trim label on the threaded shaft. Secure the...
  • Page 4: Adjustment Procedure

    System” in your owner’s manual. The amplifier primary gain controls determine the maximum allowed output level that the amplifier. 2. Set the control knob of the RGC-1 to its mid-rotation position. 3. Check the output level of the subwoofer. The amount of bass can be adjusted for the type of music and individual preference.
  • Page 5: Limited Two-Year Consumer Warranty

    Warranty LIMITED TWO YEAR CONSUMER WARRANTY: Directed Electronics, Inc. promises to the original purchaser, to replace this product should it prove to be defective in workmanship or material under normal use, for a period of two years from the date of purchase by the dealer as indicated by the date code marking of the product PROVIDED the product was installed by an authorized Directed dealer.
