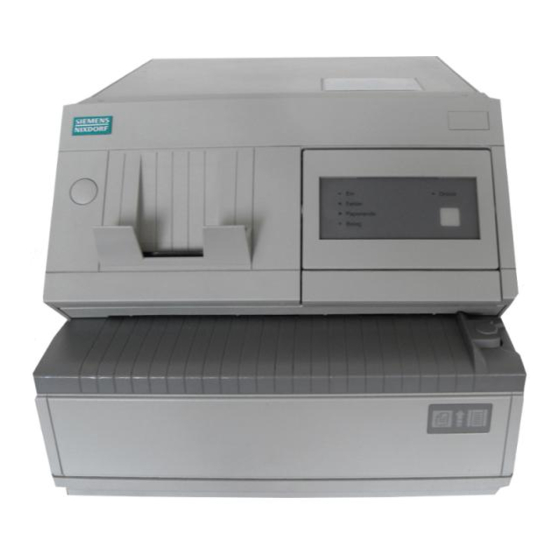

Wincor Nixdorf ND69 User Manual

Modular pos printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ND69
Modular POS Printer
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ND69 and is the answer not in the manual?

Questions and answers

Related Manuals for Wincor Nixdorf ND69

Summary of Contents for Wincor Nixdorf ND69

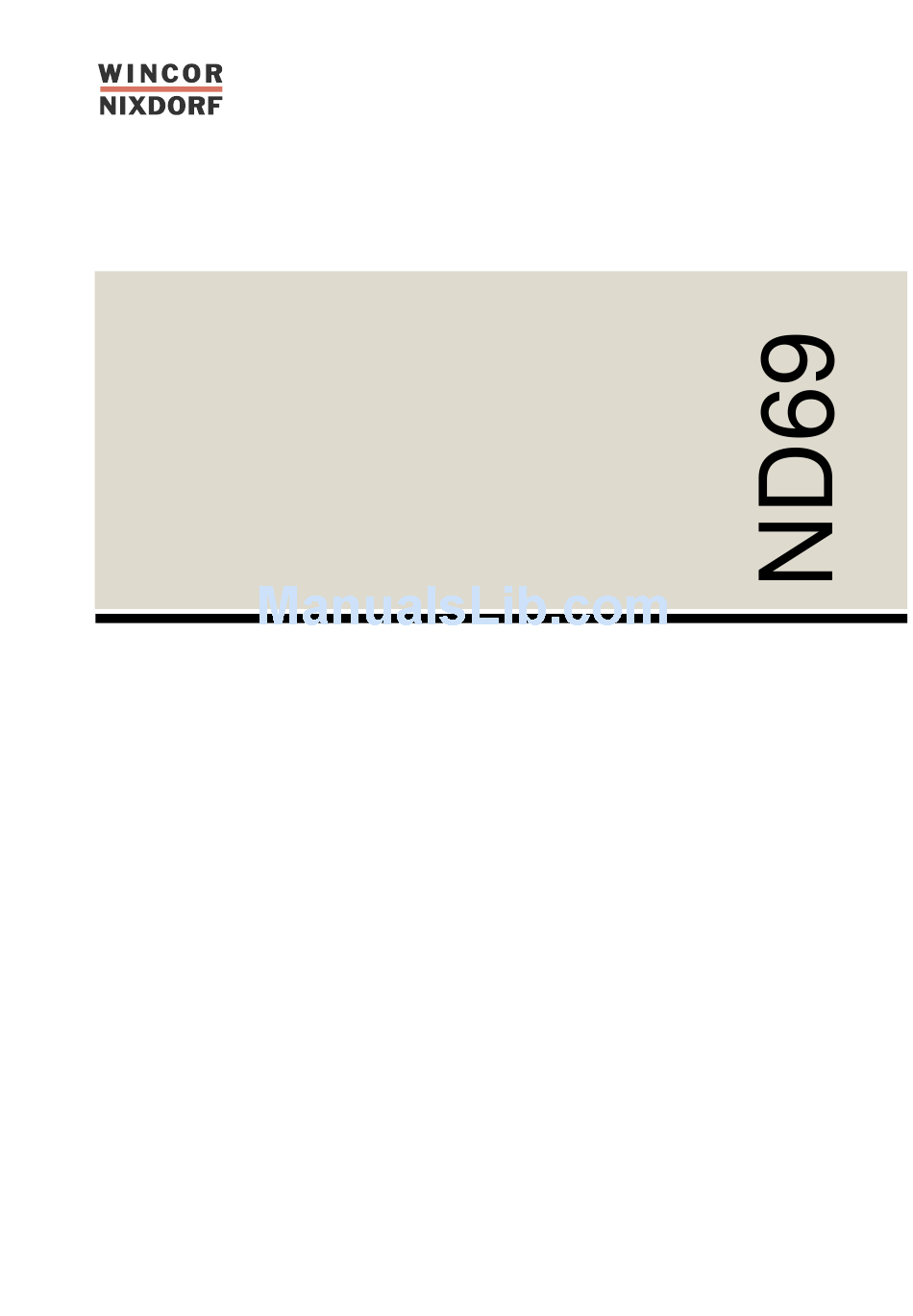

  • Page 1 ND69 Modular POS Printer User Guide...
  • Page 2 ND69 Modular POS Printer User Guide Edition July 2000...
  • Page 3 BEETLE ® is a registered trademark of the Wincor Nixdorf GmbH & Co. KG (WN). MS-DOS ® and Microsoft ® are registered trademarks of the Microsoft Corporation. SINIX ® is a registered trademark of the Wincor Nixdorf GmbH & Co. KG .

  • Page 4: Table Of Contents

    Tested Safety ........................1 Important Notes........................2 Introduction ........................3 About this manual ........................3 Care of the ND69 .........................3 Recycling the ND69 POS Printer ..................4 Installation ..........................5 Before Switching On ......................5 Unpacking and Checking the Scope of Supply ...............5 Setting up the Device ......................5 Cabling of the ND69......................5...
  • Page 5 Operation of the ND69 POS printer ................19 Inserting the Spacers ......................20 Document Processing ....................... 21 Changing the Receipt and Journal Paper ................. 22 Green Paper Feed Button .................... 23 Changing the Receipt Roll....................23 Remove the remaining receipt paper ................24 Inserting the Receipt Roll .....................

  • Page 6: Manufacturer's Certification

    édicté par le ministère des Communications du Canada. Tested Safety The ND69 has been provided with the symbol for “Tested Safety”. In addition, the ND69 has received the cUL symbol, the UL/CSA symbol and the CE symbol.

  • Page 7: Important Notes

    Manufacturer’s Certification Important Notes The modular ND69 POS Printer complies with the relevant safety regulations for data- processing equipment, including electronic office machines, for use in the office environment. Should you have any doubts about the permissibility of installation in a certain environment, please contact Wincor Nixdorf Customer Service.

  • Page 8: Introduction

    About this manual About this manual This manual provides you with all the information you require to ensure that your ND69 Printer operates without a single hitch. It tells you everything you need to do before switching on the printer, how to connect additional devices, and which adjustments might be necessary from time to time to ensure that your ND69 operates reliably.

  • Page 9: Recycling The Nd69 Pos Printer

    KG guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified according to ISO 9001. So don’t just throw your ND69 on the scrap heap when it has served its time. Make use of our environmentally sound and up-to-date recycling methods! The operation of your printer also generates waste material that should be disposed of in an ecologically sound manner.

  • Page 10: Installation

    (protection against knocks and bumps). Setting up the Device Set up the ND69 system where it will not be exposed to extreme environmental conditions. Protect the device against vibrations, dust, moisture, heat and strong magnetic fields.

  • Page 11: Securing The Data Communication Cable

    The settings require no additional alteration on the part of the user as the adapter on the printer adapts automatically to the local mains voltage. You can now switch on the ND69 by means of the switch on the back of the housing. GB - 6...

  • Page 12: Disconnecting Cables

    Installation POS System On/Off switch Disconnecting Cables POS System Never unplug a cable by pulling at the cable itself; always take hold of the actual plug body. Follow the procedure described below when disconnecting cables: Switch off all power and device switches. Unplug all data communication cables from the sockets of the data networks.

  • Page 13: Connecting To The Pos System

    DIP Switches DIP Switches The DIP switches make it possible for the ND69 to be operated in the ND69 mode or to be compatible with other printers so that existing application software can be used. The DIP switches are located on the terminal strip on the underside of the ND69, on the right, beside the V.24 interface.
  • Page 14 Moreover, the switches are used to execute an AUTOFEED, i.e. an automatic line feed with the control character CR. Switch 2 off and The ND69 is in the ND69 mode and CR is executed without a Switch 3 off line feed...

  • Page 15: Compatibility

    Compatibility Compatibility The combined controller is executed in such a way that the ND69 - depending on the position of two DIP switches (see Chapter DIP Switches) - either works in the ND69 mode, is compatible with the BEETLE/60 printer or with the EPSON-TM930 printer and thus understands the control characters and sequences that apply in each case.

  • Page 16: Data Retention And Loss When Opening Cover

    (see control sequence ESC + 1 and ESC v). In ND69 mode and in EPSON-TM930 mode, paper end is reported when there is no paper present at the selected station. All subsequent data and commands remain stored in the reception buffer.

  • Page 17: Customer Display

    Customer Display The customer display is connected to the serial interface. The interface connection on the ND69 is a 9-pin D-sub connector. To prevent possible malfunctions, make sure that the connector for the customer display is plugged firmly into the socket. The power is supplied via this jack.

  • Page 18: The Operator Control Panel

    “online” mode. This mode cannot then be changed by means of the online button. After switching on the ND69 in the BEETLE /60 mode, the online key is locked because the BEETLE /60 printer itself does not have an online key.

  • Page 19: Journal Line Feed Button

    The Operator Control Panel Installation Journal Line Feed Button A line feed at the journal station is executed when this button is pressed. The line spacing corresponds to either the default value of 1/6", or it depends on the last command it received, ESC 2 or ESC 3.

  • Page 20: Self Test

    Installation Self Test Self Test Self Test The printer executes a self test if either the receipt or journal line feed button is pressed while the device is being switched on. Depending on the pressed button the following printout is produced either at the journal station or the receipt station. The power-up diagnosis is started.
  • Page 21 Cash drawer 2 is closed or not installed. The configuration and parameters for the customer display are printed. The following appears on the customer display: ** ND69 SELF TEST ** ******************************* Following this, a document is requested (see example on following page).
  • Page 22 Installation Self Test After the print-out of the self test on receipt or journal paper, the following A4 print-out is produced; this print-out can take place on either an A4 sheet or is printed in lettersize- format. GB - 17...

  • Page 23: Hexadecimal Dump Function

    Hex-Dump is activated by switching on the printer and, at the same time, holding down the on-line key. As soon as the ND69 is in the Hex-Dump mode, it prints out a heading on the receipt. Characters below 20 Hex are represented in the ASCII field as decimal points.

  • Page 24: Operation Of The Nd69 Pos Printer

    9 dot matrix, depending on the character types selected in your application software. The ND69 provides you with the possibility of controlling the line feed of the receipt and journal paper via two buttons on the front cover of the printer. There is a green line feed button inside the housing for changing the receipt and journal paper.

  • Page 25: Inserting The Spacers

    For further information, read the chapter on “Changing the Ribbon Cassette”. As the ND69 allows different paper widths for receipt and journal paper, it might be necessary to reduce the size of the paper reception compartments so that they can accommodate narrower rolls of paper.

  • Page 26: Document Processing

    Then, as can be seen in the illustration, the appropriate adapter is inserted in the paper feed magazine. Document Processing Document Processing The ND69 prints documents up to a size of DIN A4. Consult the appendix for the print area and the paper specifications. GB - 21...

  • Page 27: Changing The Receipt And Journal Paper

    In ND69 and EPSON-TM930 modes, take out the document and insert a second document sheet if the yellow LED flashes. The printing can now be continued or completed, as the case may be.

  • Page 28: Green Paper Feed Button

    Operation of the ND69 POS printer Changing the Receipt and Journal Paper Green Paper Feed Button When the cover of the printer is open, the green paper feed button for the receipt and journal stations can be used. This button makes the inserting of a new roll of paper much easier in that it changes the location of the feed rolls mechanically - in addition to the electrically induced line feeds.

  • Page 29: Remove The Remaining Receipt Paper

    Changing the Receipt and Journal Paper Operation of the ND69 POS printer Remove the remaining receipt paper Pictograms for handling Lift up the paper compartment cover to Paper line feed button gain access to the paper roll. You can re- move the remaining paper by means of the line feed button.

  • Page 30: Inserting The Receipt Roll

    Operation of the ND69 POS printer Changing the Receipt and Journal Paper Draw the green lever backwards to raise the printing mechanism. Now pull the receipt paper straight up- wards and out of the paper magazine. Do not pull the remaining paper out of the paper magazine while it is still fitted in the paper guide! The printing mechanism must be in the raised position.
  • Page 31 Changing the Receipt and Journal Paper Operation of the ND69 POS printer Next, place the end of the paper on the gui- de in the paper feed magazine. The correct position has been reached when the paper feed motor goes on for a short time.

  • Page 32: Changing The Journal Roll

    Operation of the ND69 POS printer Changing the Receipt and Journal Paper Changing the Journal Roll From time to time, carry out checks as to whether there is sufficient journal paper in the paper compartment. If you see a red stripe on the journal paper through the journal window on the printer, or if the “paper end”...
  • Page 33 Changing the Receipt and Journal Paper Operation of the ND69 POS printer A further possibility is to remove the still unused journal paper without the automatic paper feed. Open the upper part of the printer by lifting it backwards while pressing the release but- ton.

  • Page 34: Inserting The Journal Paper

    Operation of the ND69 POS printer Changing the Receipt and Journal Paper Do not pull the remaining paper out of the paper magazine while it is still fitted in the paper guide! The printing mechanism must be in the raised position.
  • Page 35 Changing the Receipt and Journal Paper Operation of the ND69 POS printer The journal paper is drawn in when the green button is pressed. Keep the button pressed until the paper protrudes sufficiently from the journal opening to allow it to be threaded into the spool.
  • Page 36 Operation of the ND69 POS printer Changing the Receipt and Journal Paper Rotate the spool backwards several times in order to ensure a secure seating. Then place the spool in its reception slot and press the green button again until the journal paper is tensioned and there is no more paper slack.

  • Page 37: Changing The Ribbon Cassette

    Changing the Ribbon Cassette Operation of the ND69 POS printer Changing the Ribbon Cassette Changing the Ribbon Cassette Open the upper part of the printer by lifting it backwards while pressing the release but- ton. Document plate with integrated ribbon Draw back the green lever to raise the prin- ting mechanism (see illustration).
  • Page 38 Operation of the ND69 POS printer Changing the Ribbon Cassette The ribbon cassette is located on the un- derside of the document plate. Now remove the ribbon cassette. For the sake of the environment, ensure that the ribbon cassettes are disposed of in an...
  • Page 39 Changing the Ribbon Cassette Operation of the ND69 POS printer Replace the document plate in the printer housing. Ensure that the guide pins are correctly in place. Press the document plate gently until it clicks into place. Now lower the printing station again by drawing the green release lever forwards. Close the housing until you hear it click into place.

  • Page 40: Clearing Paper Jams

    Operation of the ND69 POS printer Clearing Paper Jams Clearing Paper Jams Clearing Paper Jams A paper jam can be cleared in the following manner: First, open the upper part of the printer by pressing the release lever on the left beside the receipt output.
  • Page 41 Clearing Paper Jams Operation of the ND69 POS printer First, place an A4 sheet under the printer mechanism; in this way, you protect the rib- bon cassette against paper dust. Insert the residual paper remover into the paper feed magazine until the paper resi- dues fall out.

  • Page 42: Replacing The Print Head

    Operation of the ND69 POS printer Replacing the Print Head Replacing the Print Head Replacing the Print Head The print head can be replaced as follows: First, switch off the power switch at the back of the printer housing and unplug the device from the mains supply.
  • Page 43 Replacing the Print Head Operation of the ND69 POS printer Caution! The print head could be hot! Leave it to cool for a while before touching it. Position the print head directly in front of Online the gap in the metal plate.

  • Page 44: Control Sequences Of The Nd69 Printer

    This occurs with the aid of the ESC v con- trol command. The command set of the ND69 represents an upper quantity limit of command sets of the BEETLE /60 and of the EPSON-TM930. The individual modes (BEETLE /60, ND69 and EPSON- TM930) provide more ESC sequences than the individual printers permit, for ex- ample, ESC c 6.
  • Page 45 Control Sequences Code Function Page Mode Journal Tab ESC SP Select Character Spacing ESC ! Select Print Mode (All Stations) B E N ESC Y 1 Select Print Mode (Individual Station) B E N ESC * Activate Graphic Printing ESC 2 Set 1/6"...

  • Page 46: Notation Of The Command Description

    -> the control command is compatible (but must not necessarily be available in the BEETLE /60!), B E N -> the control command is not compatible, “B”, “E” and “N” stand for BEETLE/60, EPSON-TM930 and ND69 compatibility. Control Sequences Notation of the Command Description...

  • Page 47: Description Of The Control Characters And Sequences

    The command only functions when the document station has been activated; otherwise, it is ignored. ND69 Mode and EPSON-TM930 Mode If no control command ESC C n or one with n=0 has been received, the document is only transported out. Depending on the set compatibility,...
  • Page 48 Control Sequences Description ND69 Mode receipt station EPSON-TM930 Mode receipt and journal station If a control command ESC C n or one with n>0 has been received, the document is transported out by the number of lines indicated. After the transport, the station remains selected.
  • Page 49 Description Control Sequences Function: Horizontal Tabulating Code: <09> H Description: Addresses the next horizontal tab. Remarks: This command is only executed if the next tab position is actually set. Tab positions can be set with the control sequence ESC D. Function: Journal Tab Code:...
  • Page 50 The same mode is set for all stations. In the case of BEETLE/60 or ND69 mode, if the value of the lower 3 bits for n>3, only the wide print is switched off/on. e. g. n = <24>H switch on wide print (character density unchanged) n =<04>...
  • Page 51 If the receipt and journal station is selected, the character density for the receipt station will be used. Default: in BEETLE/60 or ND69 mode, all stations 14 cpi, in EPSON-TM930 mode, all stations 11.7 cpi. ESC * m n1 n2 data...
  • Page 52 Control Sequences Description 1 ≤ k ≤ 1117 ≤ data≤ 255 Description: Activates the graphic printing ( 8 pins ) and prints a graphic line in the resolution specified by m. m determines the resolution of the graphic printing: m = 0-> simple graphic density ( 70 dpi, corresponds to full dot ) m = 1->...
  • Page 53 Description Control Sequences ESC 2 Function: Set 1/6" Line Spacing Code: <1B> H <32> H Description: The line spacing for the subsequent line feeds and for the automatic line break of lines which are too long is set at 1/6". Remarks: The line spacing is only set for the station(s) previously selected with the control command ESC c 1.
  • Page 54 Time for inserting a document: unlimited n = 10 Waiting time after recognition of document: 1 second Print stop Receipt end, journal end sensors (BEETLE/60 mode) Sensors: Receipt end, journal end and document end sensors (ND69- and EPSON-TM930-mode) GB - 49...
  • Page 55 Description Control Sequences Tab positions : Interval of 8 characters (character no. 8, 16, 24...) With default character density 14 cpi in the ND69 mode and BEETLE/60 mode, and 11.7 cpi in the EPSON-TM930 mode. Paper widths : Receipt and Journal 76mm, Document 210mm...
  • Page 56 When switching on the printer, or after entering ESC @, tabs are set at intervals of 8 characters (11.7 cpi in Epson- TM930 mode, 14 cpi in BEETLE/60 and ND69 mode). The positions are shown as number of characters (with current charac- ter density) between the beginning of a print line and the tab position.
  • Page 57 Description Control Sequences regarded as finished and the n value and the subsequent characters are interpreted as print characters or new control commands. Tab positions that lie outside the printing field are regarded as lying directly behind the last character of the printing field, which means that a compulsory line break is executed when a print character follows the corresponding HT.
  • Page 58 Great Britain Denmark I Sweden Italy Spain I Japan Norway Denmark II Spain II Latin America Standard Value: n = 2 Germany (compatible with BEETLE/60 printer and ND69 printer) n = 0 USA (compatible with EPSON-TM930 printer) GB - 53...
  • Page 59 Description Control Sequences ESC % n Function: Activate User-Defined Character Set Code: <1B> H <25> H <n> 0≤ n ≤ 255 Range: Description: This command selects either the internal set of characters or the set of characters defined by the user. Using ESC &, the user can define a set of characters.
  • Page 60 Control Sequences Description ESC & 02 m n data Function: Load User-Defined Characters Code: <1B> H <26> H <02> H <m> <n> (<a> (<p> )k1)k2 21H ≤ m ≤ n ≤ FFH Range: a = 7 or a = 9 k1 = 2*a k2 = n - m +1 0 ≤...
  • Page 61 Description Control Sequences Remarks: The character representation must be selected in such a way that no two horizontally consecutive dots are set. If this rule is breached, the printer will remove every second dot to avoid mechanical malfunctions. ESC U n Function: Unidirectional Print ON/OFF Code:...
  • Page 62 LED off. Default: n = 2 Receipt (compatible with BEETLE/60 printer and ND69 printer) n = 3 Receipt and Journal (compatible with EPSON-TM930 printer) GB - 57...
  • Page 63 Description Control Sequences ESC c 1 n Function: Select Station to Set Line Spacing Code: <1B> H <63> H <31> H <n > 1≤ n ≤7 Range: Description: Selects the station(s) for placement of the next sequence (ESC 2 , ESC 3) - setting the line spacing.
  • Page 64 To select the document paper end, you need only set bit 4 or bit 5 to 1. Default: n = 13 H Journal end, receipt end, document end (compatible with ND69 printer) GB - 59...
  • Page 65 Description Control Sequences n = 03 H Journal end, receipt end (compatible with EPSON-TM930 printer) ESC c 4 n Function: Select Paper Sensors for Print Stop Code: <1B> H <63> H <34 >H <n > 0 ≤ n ≤ 255 Range: Description: This command selects the sensor which produces a print stop.
  • Page 66 Default: n = 13 H Document end, journal end, receipt end (compatible with ND69 and EPSON-TM930 printer). n = 11 H Document end, Journal end (compatible with BEETLE /60 printer).
  • Page 67 Description Control Sequences ESC d n Function: Print and Execute n Line Feeds Code: <1B> H <64> H <n> 0 ≤ n ≤ 255 Range: Description: Prints the contents of the data buffer, then executes n line feeds. This command sets the next printing position at the left edge of the selected printing station.
  • Page 68 Further functions of the printer start after after a delay of n * 100ms following insertion of a document. Default: m = 1, n = 10 (compatible with BEETLE/60 printer and ND69 printer) m = 0, n = 10 (compatible with EPSON-TM930 printer) ESC i...
  • Page 69 Description Control Sequences ESC m Function: Cut Receipt Code: <1B>H <6D>H Description: The command means that the receipt is cut. Remarks: The command only applies at the beginning of a line. The command only applies when the receipt station has been selected. In BEETLE /60 mode the command applies for every station.
  • Page 70 255 is placed after the sequence as a stop command. The start command passes on a data byte which determines the hori- zontal position of the logo. ND69 mode/EPSON mode: The contents of this data byte determine the column number of the first column of the logo in the printing area, beginning with 1.
  • Page 71 Description: With this command, the following n bytes are transmitted to the sub- channel. The ND69 has only the sub-channel 0, which is the V.24 interface for connection to the customer display. The data transmission is transparent, i.e. the n bytes can have arbitrary values, which means they may also contain control commands (for the customer display).
  • Page 72 Control Sequences Description ESC t n Function: Select Character Set Page Code: <1B>H <74>H <n> Range: Currently, only n = 0. Description: The command selects page n of the character set. Only page 0 of the character set is implemented. Default: n = 0 ESC u n...
  • Page 73 V.24 interface. After the system has indicated that it is able to receive, the printer transmits a byte (status byte). Depending on the position of DIP switches 2 and 3, which determine the compatibility of the ND69, the status byte contains the following: Value Meaning (BEETLE /60 mode, ND69 mode)
  • Page 74 Control Sequences Description Remarks: every time an ESC sequence is received (if at this time an error bit of the extended error message (ESC + <01>H) is set). Bit 0, “Begin of Docu- ment”, remains to be set in the BEETLE /60 mode after inserting the paper as long as another station is selected.
  • Page 75 Description Control Sequences Commands with m = 2 and m = 5 ... 127 are ignored. The message sequence has the following configuration: ESc r n1 n2 data <1B>H <72>H <n1> <n2> (<p>)k This command only applies when the serial interface has been selected.
  • Page 76 Number of Description Bytes Text ESC[? 1B,5B,3F 1, 2, 3 Start sequence 4, 5 42, 35 Ident.No. for ND69 Separator 7, 8 Program version Separator 10, 11 Program sub-version Separator Characters/line of the selected 13, 14 paper width and character density...
  • Page 77 Bit 1, cover error In the EPSON-TM930 and ND69 modes, Bit 1 always equals 0. A cover error is reported when a print job cannot be carried out with open cover. Bit 2, user error User error is reported when no document has been inserted within the time specified by ESC f.
  • Page 78 In the EPSON-TM930 and ND69 operating modes, bit 6 is always equal to 1. In BEETLE/60 mode, job loss error is reported when the ND69 receives printing data in the following states: in all off-line states (e.g. device fault, open cover);...
  • Page 79 Description Control Sequences Byte 2 Parameter Value Explanation switched off Wide print switched on undefined switched off Unidirectional printing switched on Journal selected Receipt & Journal 4, 3 station Receipt Document 7, 6, 5 fixed 111 not used Byte No.: 3 Bit 0-3 : international character set (see ESC R) Bit 4-7 : not used, fixed 0000 Byte No.: 4 Print stop sensors...
  • Page 80 Control Sequences Description Byte No.: 2 Switches Function 0="0" Carrier in home position 1="0" Cutter in home position 2="0" Cover open 3="1" DIP1 on 4="1" DIP2 on 5="1" DIP3 on 6="1" DIP4 on 7="1" not used Byte No.: 3 to 7 not used, fixed 0 ESC + 5 A power failure can be detected.
  • Page 81 Description Control Sequences ESC z n Function: Switch On/Off Parallel Print on Receipt + Journal Code: <1B>H <7A>H <n> 0 ≤ n ≤ 255 Range: Description: This command switches the parallel printing (printing of the same data) on the receipt and journal on or off. Only Bit 0 of n is relevant;...
  • Page 82 This command only applies when the V.24 interface and the data transmission control are selected with DTR/DSR. In addition, either the EPSON-TM930 or the ND69 mode is to be set. When the parallel interface or the XON/XOFF control for V.24 interface or BEETLE /60 mode are selected, this command is ignored.

  • Page 83: Character Set

    Character Set Control Sequences Character Set Control SequencesCharacter Set The basis for the character set is the character set table 437 (USA/IBM standard) The characters in the halftone fields can be changed according to the requirements of specific countries. The character set of a certain country can be selected by means of ESC R.
  • Page 84 Control Sequences Character Set Store of country-specific characters GB - 79...

  • Page 85: Appendix

    Appendix Technical Data Footprint Width 280 mm Depth 367 mm Overall Height 222 mm Weight 13.5 kg Climatic Category IEC 721-3-3 Class 3K3 Operating Temperature 5 - 40 ° C Input Voltage 88 - 132 V and 176 - 264 V AC autoranging Power 80 Watts Power Consumption...
  • Page 86 Appendix Technical Data AppendixTechnical Data Basic Line Spacing 4.23 mm Blank Line Feed Receipt 30 lines/sec. Journal 30 lines/sec. Number of Characters 15.6 14 11.7 [in cpi] 40.0 mm Receipt/Journal 45.0 mm Receipt/Journal 58.0 mm Receipt/Journal 64.0 mm Receipt/Journal 69.0 mm Receipt/Journal 76.2 mm Receipt/Journal...

  • Page 87: Paper Specifications

    Paper Specifications Appendix Paper Specifications Receipt/Journal paper (single-ply) Paper Specifications Outside Roll Diameter max. 100 mm (Journal max. 80mm) Cover Diameter 12 mm (+ 0 mm;- 2 mm) (2,22 ± 1mm) Roll Width 40 mm +- 1 mm (2,33 ± 1mm) (min.

  • Page 88: Useable Surface

    Appendix Paper Specifications Useable Surface The minimum edge spacing is 0,7mm 3,8 ± 1,8 3,7 ± 0,7 202,4 4,2 ± 0,3 1st line Print range DIN A4 document 4 ± 2 4 ± 2 Receipt 76mm wide 4 ± 2 4 ±...

  • Page 89: Print Range (Backside Receipt/Journal)

    Paper Specifications Appendix Print range (backside Receipt/Journal) If you intend to use the backside of the receipt and journal paper for advertising purposes, please note that the marked area (11 mm) must not be printed on! 11 20 Journal Receipt GB - 84...

  • Page 90: Interfaces

    Appendix Interfaces Interfaces AppendixInterfaces Standard PC cables can be used for the connections. Parallel Interface to the System The parallel interface to the system is a Centronics interface; it corresponds to the uni- directional LPT interfaces of PCs, i.e. the printer does not transmit replies. Technical Data : Data Transmission: 8 bit parallel, unidirectional...
  • Page 91 Interfaces Appendix Name Direction Description of Signal ACKNLG/N Output This signal indicates that the printer is ready to receive data. Under normal conditions, it is “high” and goes to"low" for about 10us. BUSY Output This signal indicates whether the printer can receive data or not.
  • Page 92 Appendix Interfaces Name Direction Description of Signal INIT/N Input This is the reset signal for the combination controller. The printer is normed (as after the power supply is switched on when it receives an INIT/N “Low” impulse lasting at least 50us). ERROR/N Output This signal indicates whether the printer is in an error...

  • Page 93: Serial Interface To The System

    Interfaces Appendix Serial Interface to the System The serial interface to the system is a V.24 (RS-232C) interface. It corresponds to the COM interfaces on PCs. Technical Data : Data Transmission: serial, full duplex Synchronization: synchronous Handshaking: DTR / DSR or XON / XOFF control (can be selected by DIP switch 4) Neither DTR / DSR nor XON/XOFF handshaking have effect on the data transmission from the printer to the system.

  • Page 94: Connecting Cable

    Connecting Cable A standard cable for connecting printers to the serial interface is used to connect the ND69 to a PC or PC-compatible unit (e.g. BEETLE). In the case of the connection to a BEETLE /60 with voltage-supplied COM interface, your local branch office can supply the appropriate cable.

  • Page 95: Serial Interface To The Customer Display

    (e.g. for 64 bytes). Serial Interface to the Customer Display The serial interface for connecting a Wincor Nixdorf customer display (e.g. BA 63) is a V.24 (RS-232C) interface. Technical Data :...
  • Page 96 Appendix Interfaces Allocation of Connectors and Description of Signals: Name Direction Description of Signal +12 V Output supply voltage, max. 500 mA Input reception data Output transmission data signal ground Input This signal indicates whether the customer display data can be received or not. RTS = “0"...

  • Page 97: Cash Drawer Connection

    DIP Switches DIP Switches The DIP switches make it possible for the ND69 to be operated in the ND69 mode or to be compatible with other printers so that existing application software can be used. The DIP switches are located on the terminal strip on the underside of the ND69, on the right, beside the V.24 interface.
  • Page 98 Moreover, the switches are used to execute an AUTOFEED, i.e. an automatic line feed with the control character CR. Switch 2 off and The ND69 is in the ND69 mode and CR is executed without a Switch 3 off line feed...

  • Page 99: Possible Problems

    Possible Problems Appendix Possible Problems ... Possible Problems Problem Description Recommended Action The printer does The ON lamp does not light up. Ensure that the power cable is connected not switch on. to the mains and to the printer. Make sure that the printer power switch is Make sure that there is power at the socket where the printer is connected.
  • Page 100 Appendix Possible Problems Problem Description Recommended Action Red error lamp The cutter does not cut, or the Remove the paper jam (see Page 35). print head does not move. flashes. Red error lamp The receipt or journal roll is Change the receipt or journal roll (see used up.

  • Page 101: Cleaning Instructions

    Possible Problems Appendix Cleaning Instructions Cleaning the Transport Axles of the Print Head In order to prevent a transport fault of the print head, the transport axles should be cleaned from time to time. Switch the device off and disconnect it from the mains supply. Use a clean, soft, lint-free cloth to clean the transport axles;...

  • Page 102: Glossary

    This concerns the speed of data transmission between the printer and the computer. One Baud equals one Bit/s. The Baud rate for the ND69 is 9600 Baud. Bidirectional Printing During this printing process, the print head prints from left to right and from right to left in turn.
  • Page 103 The printing speed is considerably lower than with bidirectional printing, but the vertical positioning of the print image is more precise. With your ND69 you can print graphics and logos both using the unidirectional and the bidirectional printing process.
