CDX-GT317EE/GT360
SERVICE MANUAL
Ver. 1.1 2007.03
• The tuner and CD sections have no adjustments.
CD player section
Signal-to-noise ratio
120 dB
Frequency response
10 – 20,000 Hz
Wow and flutter
Below measurable limit
Tuner section
FM
Tuning range
GT317EE:
FM1/FM2: 87.5 – 108.0 MHz
FM3: 65 – 74 MHz (at 30 kHz step)
GT360:
87.5 – 108.0 MHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity
9 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
67 dB (stereo), 69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo), 0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
Sony Corporation
9-887-460-02
eVehicle Division
2007C04-1
Published by Sony Techno Create Corporation
© 2007.03

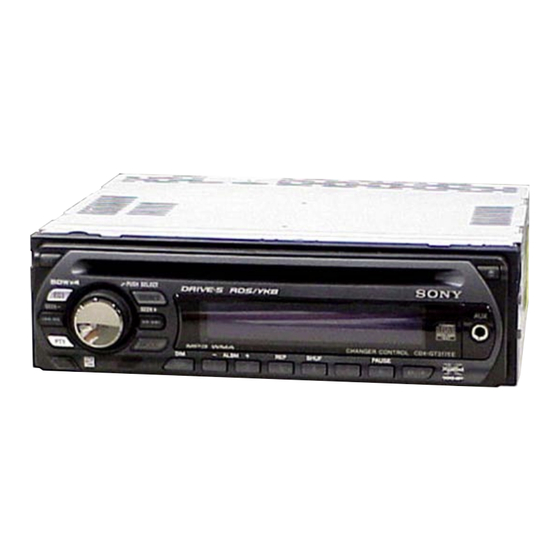

(Photo: CDX-GT317EE)
SPECIFICATIONS
(at 50 kHz step)
FM/MW/SW COMPACT DISC PLAYER
East European Model
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
MW/LW (GT317EE)
Tuning range
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
MW: 30 µV, LW: 40 µV
Sensitivity
MW/SW (GT360)
Tuning range
MW: 531 – 1,602 kHz
SW1: 2,940 – 7,735 kHz
SW2: 9,500 – 18,135 kHz
(except for 10,140 – 11,575 kHz)
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
30 µV
Sensitivity
Power amplifier section
Outputs
Speaker outputs (sure seal connectors)
Speaker impedance
4 – 8 ohms
Maximum power output
GT317EE: 50 W × 4 (at 4 ohms)
GT360: 52 W × 4 (at 4 ohms)
FM/MW/LW COMPACT DISC PLAYER
Saudi Arabia Model
CDX-GT360
CDX-GT317EE
CDX-GT262/GT217
MG-101TA-188//Q
DAX-25A
– Continued on next page –
CDX-GT317EE
CDX-GT360
