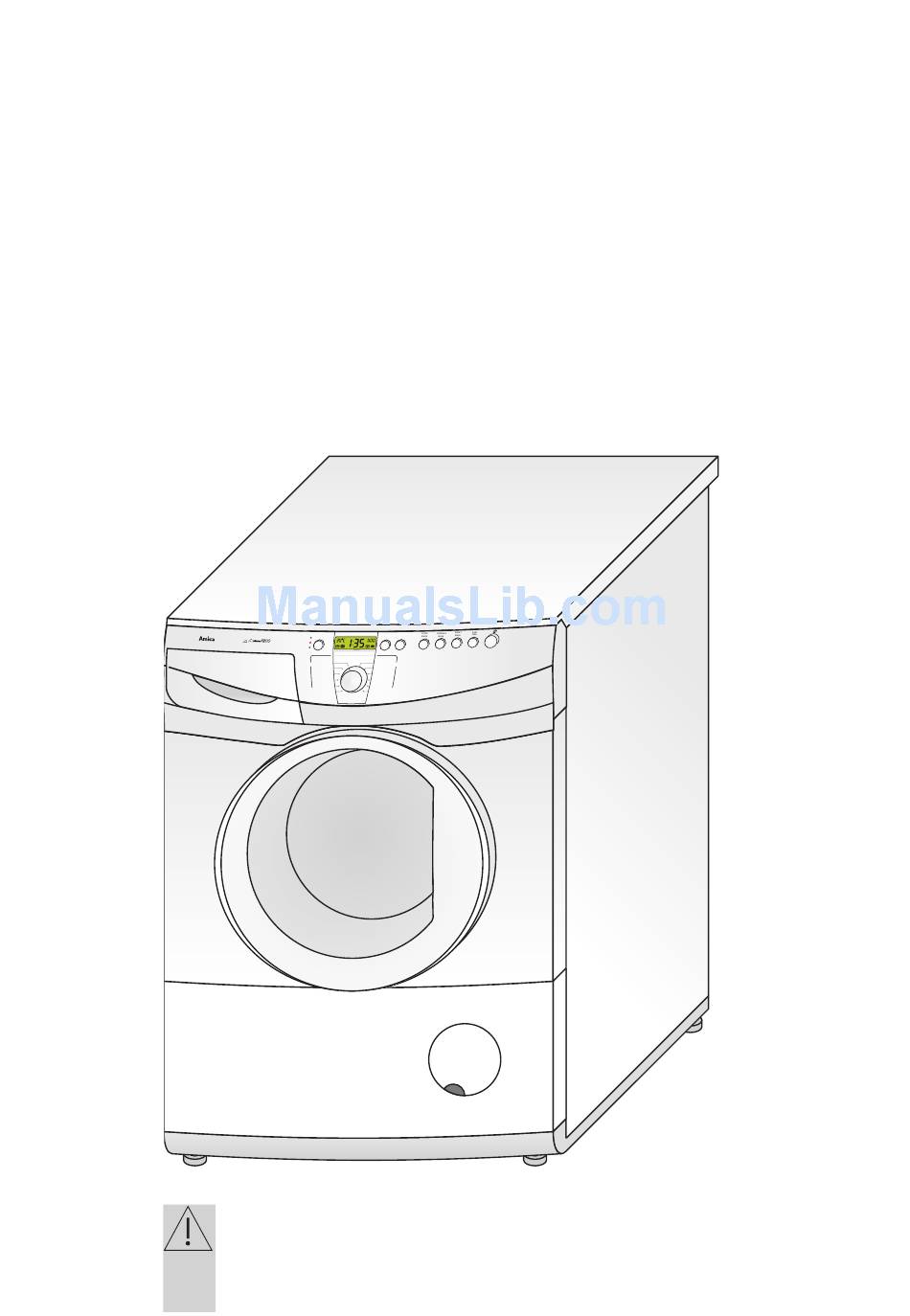

Operating manual

Washing machine

AWSM12D

READY

RUN

END

WOOL

WHITES

DELICATE

COTTON

HAND WASH

COLOURS

SYNTHETICS

EVERYDAY

REFRESH

EFFECT PLUS

RINSING

AUTO DRAIN

SPINNING

Start up your washing machine only once you've read the

Manual and the abridged Instructions for Use!

Table of Contents

Need help?

Do you have a question about the AWSM12D and is the answer not in the manual?

Questions and answers

Summary of Contents for Amica AWSM12D

Page 1: Washing Machine
Operating manual Washing machine AWSM12D READY WOOL WHITES DELICATE COTTON HAND WASH COLOURS SYNTHETICS EVERYDAY REFRESH EFFECT PLUS RINSING RINSING AUTO DRAIN SPINNING Start up your washing machine only once you’ve read the Manual and the abridged Instructions for Use!
Page 2: Table Of Contents
TAble of conTenTS General information......................3 Safety instructions ......................4 Installation........................5 Troubleshooting guide....................7 Care labels symbols......................10 Maintenance and cleaning....................11 Practical washing hints....................11 Technical data........................16 Guarantee and service....................16...
Page 3 DeAr cuSToMer By reading this Manual you will become a conscious user of new washing machine, a mod ern and technologically advanced product. The new automatic washing machine has been designed by technicians and en gi neers working in constructional and research forces, using the latest technical knowl edge and modern designing tools.
Page 4: Safety Instructions
SAfeTy inSTrucTionS burns The window and door of your washing machine are hot during op eration. Do not allow children in the vicinity of the appliance. Use only those washing agents and bleaches that are appropriate for washing in automatic washing machines. Washing agents Do not use any solventcontaining washing agents as they may dam...
Page 5: Installation
inSTAllATion i. remove all the packing materials (keep them for future use!) lUnscrew the screws using a scre Unscrew the bolt lRemove the transport guard toge wdriver. ther with sleeves and bolts. lRemove the sleeve and bolt. lUnscrew the bolts that fix the guard.
Page 6 iii.Water supply Inlet hose with seals. Water pressure min.1bar, max. 8 bar. Feed the appliance only with cold water! iV.Water outlet max 100 cm min. 50 cm Secure the drain hose so it does not move dur ing operation! Do not insert the drain hose too dip into the water pipe! V.Power supply lThe connection must be made with a correctly installed, earthed...
Page 7: Troubleshooting Guide
TroubleShooTing guiDe Flashing signal light SPIN TEMPERATURE SPEED READY Shining signal light Some faults and defects are signalised by E 01 – E 99 error code, flashing READY light and lighted FINISH light. Faults that may be remedied by the user. The appliance will not operate Now display ! lProperly insert the power plug in the...
Page 8 no water in the washing machine lTurn the tap on completely. lClean the mesh filter on the water supplying hose. Washing interrupted VII. lClean the pump filter. lClean the drain hose. lWater was not pumped out. .Water under washing machine VIII lTighten the pump filter.
Page 9: Care Labels Symbols
Poor rinsing results lAdjust the dose of the washing agent to XIII. the degree of soiling and water hardness (see re com men da tions on the washing agent packaging). lSelect appropriate programme. The appliance remembers the last error. To cancel the error sign press START button for approx. 3 sec.
Page 10: Maintenance And Cleaning
MAinTenAnce AnD cleAning Never use solvents or sharp, abrasive cleaning agents (for example cleaning powders) to clean the cover and plastic parts! Clean the appliance using delicate, liquid cleaning agents. Clean the filter periodically, after approx. 20 washing cycles. I. . Pump filter Forgetting to clean the filter may cause diffi- culties in draining water from the appliance! lOpen the door...
Page 11: Practical Washing Hints
PrAcTicAl WAShing hinTS If you want to stop a programme, keep pressing START I. Cancelling and changing the pro- button until READY lamp is lighted. gramme If you want to change a programme when the appliance is in operation, first stop the current pro gramme by press ing START button (see above) and then select an other pro gramme.
Page 12 V. Displayed information Roughly estimated time remaining till the end of the washing process (depending on some ex ter nal con ditions, like temperature and pressure of water, load etc.), or Setup time for the delayed washing cycle. Displayed key sign means that the door lock Selected tem pera...
Page 13 Warning! The more delicate textile, the lower temperature and spin rotations should be selected. For silk, wool and other delicate textiles “Stop with water” option is the most ap propriate. The range of max. temperature and spin rotations adjustments for the respective programmes is specified in the “Programme table”...
Page 14 VI. Load Load articles into the drum observing the following in structions: cotton – maximally full drum (do not force articles into the drum as it may reduce the washing efficiency!). synthetic – maximally 1/2 drum wool, silk, delicate fabrics maximally 1/3 drum Warning! Do not overload the appliance! Overloading may cause dam...
Page 15 X. Dosage Insufficient dose of the washing agent may cause: Grey laundry. Pellets of oil, built up scale. Overdosing the washing agent causes: Excessive foaming. Reduced washing efficiency, poor rinsing results. XI. Savings Energy Wash lightly soiled linen in low washing temperatures. Use Refreshing programme, activate “short wash”...
Page 16: Technical Data
C pro gramme): water consumption during one washing cycle is 54,5 l power consumption is 1,02 kWh *AWSM12D washing machines, guarantee Guaranteed services according to the Guarantee Card The manufacturer will not be held responsible for any damages resulting from inappropriate usage of the appliance.
