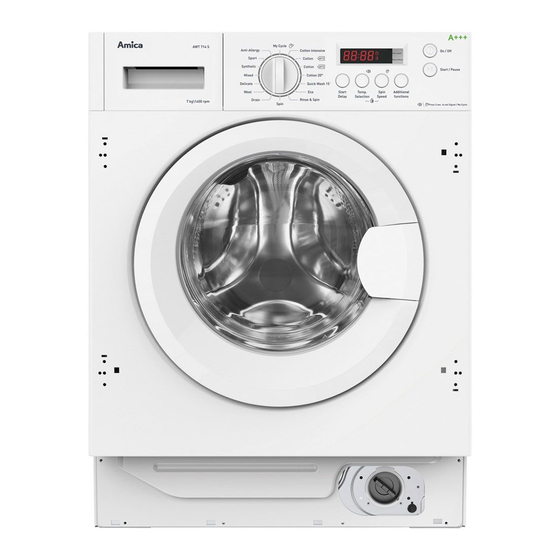

Amica AWT714S/1 Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATING
INSTRUCTIONS
EN
IO-WMS-1954
(09.2020/1)
AWT714S/1
ONLY USE THE APPLIANCE WHEN YOU
HAVE READ AND UNDERSTAND THE
WASHING MACHINES
OPERATING
INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the AWT714S/1 and is the answer not in the manual?

Questions and answers

Related Manuals for Amica AWT714S/1

Summary of Contents for Amica AWT714S/1

  • Page 1 OPERATING INSTRUCTIONS IO-WMS-1954 (09.2020/1) AWT714S/1 ONLY USE THE APPLIANCE WHEN YOU HAVE READ AND UNDERSTAND THE WASHING MACHINES OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    CONTENTS ECOLOGY IN PRACTICE BASIC INFORMATION SAFETY AND GERMENT CARE LABELS INSTALL THE APPLIANCE PRODUCT DESCRIPTION TROUBLESHOOTING PRACTICAL TIPS ON WASHING In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container.

  • Page 3: Ecology In Practice

    ECOLOGY IN PRACTICE For many years, Amica has consistently pursued pro-ecological policy. Concern for the environment is as important for us as the use of modern technology. The development of technology has enabled our factories to become more environmentally friendly – we use less and less water, electricity and less waste water and solid waste is gener- ated in the production.
  • Page 4 Dear customer! Thank you for choosing an Amica product. For years we have deliv- ered high-quality appliances, so that household chores become a real pleasure. Before being packaged and leaving the manufac- turer, the appliance was thoroughly checked with regard to safety and functionality.

  • Page 5: Basic Information

    BASIC INFORMATION This washing machine is intended for domestic use only to wash tex- tiles and clothes designed to be machine washed in a detergent bath. Before plugging the washing machine into the mains, remove the safety packaging and ensure the machine is level. The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.

  • Page 6: Safety And Germent Care Labels

    SAFETY AND GERMENT CARE LABELS The risk of death! This appliance should not be used by children under 8 years of age, persons with reduced physical or mental capabilities, and persons who do not have sufficient skills to use this type of appliance. Such persons should be offered proper supervision or instructions on safe handling of appliance and related...
  • Page 7 SAFETY AND GERMENT CARE LABELS Risk of burns! If laundry is washed at high tem- perature, door glass becomes hot. Prevent children from touching the hot door. Eye/skin irritation! Contact with detergents and softeners may cause eye or skin irritation. In case of eye/skin contact, thoroughly rinse eyes/ skin to remove fabric detergent/ softener.
  • Page 8 SAFETY AND GERMENT CARE LABELS Risk of electric shock. The power cord and the ground- Risk of fire/damage to ed wall socket fit together and property/appliance! the grounding system has been properly installed. Power cord cross section is suf- ficient. Power plug is always accessible.
  • Page 9 SAFETY AND GERMENT CARE LABELS Risk of fire/damage to The use of extension cords or property/appliance! splitters may result in fire due to overheating or short circuit. Connect the appliance directly to a properly grounded wall socket. Do not use extension cords, splitters or power strips.
  • Page 10 SAFETY AND GERMENT CARE LABELS Risk of injury! This appliance has sharp edges that can cause a hand injury. Do not hold the appliance by sharp edges. Only lift the appliance after you put on the gloves. If the hoses or electrical cables are not routed properly, you can trip and sustain an injury.
  • Page 11 SAFETY AND GERMENT CARE LABELS Important! Use only hoses supplied with Damage to property/appli- the appliance, or the original ance hoses up designed for the appli- ance. The appliance is secured for transport with transit bolts. If you don’t remove transit bolts before using the appliance, the appliance may be damaged.
  • Page 12 SAFETY AND GERMENT CARE LABELS Risk of poisoning! Cleaning agents containing solvents may give off poisonous vapours. Do not use cleaning agents con- taining solvents. Risk of injury! Do not lean against/sit on open appliance door as this can lead to the appliance tipping over.
  • Page 13 SAFETY AND GERMENT CARE LABELS Eye/skin irritation! Fabric detergents and soften- ers may splash, if the detergent drawer remains open during operation. In case of eye/skin contact, thoroughly rinse eyes/skin to remove fabric detergent/sof- tener. In the event of accidental in- gestion, consult your doctor.
  • Page 14 SAFETY AND GERMENT CARE LABELS SAFETY AND GERMENT CARE LABELS The risk of death!! The appliance is powered by electricity. Touching live ele- ments poses a risk of electric shock. Therefore, remember: Turn off the appliance: Unplug the appliance from the wall outlet.
  • Page 15 SAFETY AND GERMENT CARE LABELS SAFETY AND GERMENT CARE LABELS Risk of poisoning! Cleaning agents containing solvents may give off poisonous vapours. Do not use cleaning agents con- taining solvents. Risk of electric shock / dam- If water penetrates into the age to property / appliance! appliance, it may cause a short circuit.
  • Page 16 SAFETY AND GERMENT CARE LABELS Important! Make sure there is no contact Damage to property/appli- with the appliance surface. ance Clean the appliance with a damp cloth only. UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS Washing boil at 90°C normal wash at 60°C normal wash at 40°C Do NOT wash! delicate...

  • Page 17: Install The Appliance

    INSTALL THE APPLIANCE Remove the transit bolts (keep the bolts for future use, e.g. when moving house). stop up the holes with the stoppers enclosed unscrew the 4 transit bolts in the accessories bag. with a spanner, remove the rubber and plastic transport brackets from the sockets along with the washers and bolts.
  • Page 18 Connect the water supply Use only the new hoses supplied with the machine. Do not re-use hoses. A supply hose with seals is inside the drum of the machine. Water pressure min 0.05 MPa (0.5 bar), max 1 MPa (10 bar). 1).
  • Page 19 Connect to power supply Electrical wall outlet where the appliance is connects must be in a visible and accessible place, Only plug the appliance into a properly installed socket with an earthing pin, Do not use an extension cord to connect the appliance, in the event of the power cord being damaged, it must be replaced by an authorised service...

  • Page 20: Product Description

    FEATURES AND COMPONENTS DESCRIPTION OF THE APPLIANCE 1. Detergent drawer 2. Drum 3. Control Panel 4. Door handle 5. Pump filter cover Accessories: Transport Hole plug Inlet pipe Inlet pipe H Outlet hose hole plug (optional) (optional) support (optional)
  • Page 22 DISPLA Y AND CONTROL PANEL ■ ■ ■ ■ ■ ■ ■ ■ ■ 1. Programme button 2. Display 3. On/Off button 4. START/PAUSE 5. Button for the additional function Start delay 6. Button for the selection of the Temperature 7.
  • Page 23 Programme selector dial The user can select an appropriate wash programme according to the degree of soiling, the type and amount of the laundry in order to ensure a better and more efficient result. Once the programme has started, the parameters of the selected wash programme can no longer be changed by setting the programme button in a different position.
  • Page 24 Temperature selection button The button serves to set the temperature for the respective washing pro- grammes. When pushing the button , the display shows the available water temperature settings or cold water options (without preheating) for the relevant wash pro- gramme.
  • Page 25 Switching the sound signal on/off In order to activate this function, keep the button pressed for about 3 seconds. The sound signal confirms the activation of this function. In order to re-enable the function, push the button and hold it for about 3 seconds. This setting remains saved until the next change.
  • Page 26 DESCRIPTION OF THE APPLIANCE SPECIAL PROGRAMMES Wash programme Anti-Allergy: This wash programme is intended for children and persons with sensitive skin. The main wash is always at 60°C (possible temperatur settings are 90/60/40/30/20—“cold”). Wash programme Mixed laundry: Standard wash programme at a standard temperature of 40°C with a standard spin speed of 1000 rotations/minute.
  • Page 27 USING THE APPLIANCE Select Programme Set the programme selector turning it left or right. Customize the programme to your needs – you can change the temperature, spin speed, or enable additional features. Press the Start/ Pause button Time Remaining To set the Time Remaining: Close the appliance door.

  • Page 28: Troubleshooting

    TROUBLESHOOTING Problem Probable cause/Solution The washing machine is not working Open the water supply tap. - clean the mesh filter on the supply hose - close the door - press the Start/ Pause button Water Leakage - Properly connect the water supply hose. The load in the appliance has not been - Replace the load evenly in the drum, clean the pump filter.
  • Page 29 Problem Probable cause/Solution Appliance vibrating - Check if transit bolts are removed - level the washing machine, - lock the washing machine feet by tightening the nuts. Foam leaks from the detergent drawer. - Reduce the amount of detergent used - Check the water hardness and the amount of detergent used, - Use detergent according to manufacturer instruction on the box indicated for your water hardness.
  • Page 30 THE FAUL T INDICATOR LIGHTS The washing machine has an alarm system, which helps solving minor problems connected with incor- rect operation by means of “ERROR CODES” indicated in the display. With the ERROR CODES you can locate the defect and establish the cause. If an error is found, the display shows information in accordance with the following table: Display Reason...
  • Page 31 TROUBLESHOOTING MAINTENANCE AND CLEANING Never clean the appliance body or plastic parts using solvents or harsh, abrasive deter- gents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges. Clean the pump filter Clean the pump filter every 20 washes or so.

  • Page 32: Practical Tips On Washing

    PRACTICAL TIPS ON WASHING DETERGENTS AND LAUNDRY ADDITIVES It is recommended to use a general-purpose laundry detergent powder or liquid for the full range of temperatures according to the manufacturer's instructions on the detergent packaging. Detergents Pour the detergent into the drawer compartment marked Pour the pre-wash detergent into the drawer compart- ment marked...
  • Page 33 FIRST WASH Before washing for the first time, put the appliance through one high temperature cycle without a load, according to the following procedure: 1). connect the washing machine to the power supply, 2). open the water valve, 3). set the programme selector dial to washing at high temperature, add a suitable detergent and press Start/Pause.
  • Page 34 WATER HARDNESS Hard water causes scale deposition. Information about water hardness is available from the nearest water works. We recommend that you use water softener for each washing. POWER OUTAGE (PROGRAMME MEMORY) Power outage or unplugging the appliance does not cancel the set programme. The programme is memorised and resumes when power is restored.
  • Page 35 DOOR LOCK The washing machine is equipped with a lock which prevents the door from being opened during wash cycle. Once a wash cycle is complete, the door lock is automatically released. In order to open the door during the wash program, press PAUSE button and wait to unlock the door.
  • Page 36 LOAD DISTRIBUTION CONTROL BUILT-IN INSTALLATION Overview Before you install the washing machine, please read these instructions carefully and keep them for future reference. This appliance has been designed to be built into the kitchen furniture. The recess should have the dimensions shown in Fig. WARNING When installing the appliance into the kitchen furniture, ensure that the hoses are placed in either of the two recesses on the back of the appliance.
  • Page 37 Preparation and assembly of the door The appliance is originally prearranged for the assembly of a door opening from right to left or from left to right. The door is open from left to right The door is open from right to left...
  • Page 38 Appendix 1.Self-tapping screws (ST4*12) 2.Self-tapping screws (M5*12) 3.Hinges 4.Counter magnet 5.Spacer 6.Fixed position paper Tools 1.Screw Driver 2.Automatic Driver 3.Ruler 4.Pencil Preparation the Fixed position paper Make the mark on the door according to the cupboard and washing machine height.
  • Page 39 Fixed position paper on the door. Paste on the Door(The Shear fixed position Paste on the Door(The door on the left) paper door on the right) Drill hole on the door Drill the hole on the door according to the fixed position paper. Installation the hinges and spacer Fix the hinges to the machine by means of the ST4*12 screws.
  • Page 40 Installation the counter magnet The appliance is prearranged for a magnetic closure of the door. To enable a correct operation of this device, it is necessary to screw the counter-magnet into the inner side of the door. Installation the door WARNING: Maxiumim allowed mass of fornt furniture front panel is 7,5 kg.
  • Page 41 For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more informa- tion, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/ WARRANTY AND AFTER SALES SERVICE...
  • Page 44 For the UK: please call 01949 862012 01 88 2010 09.2020./1...
