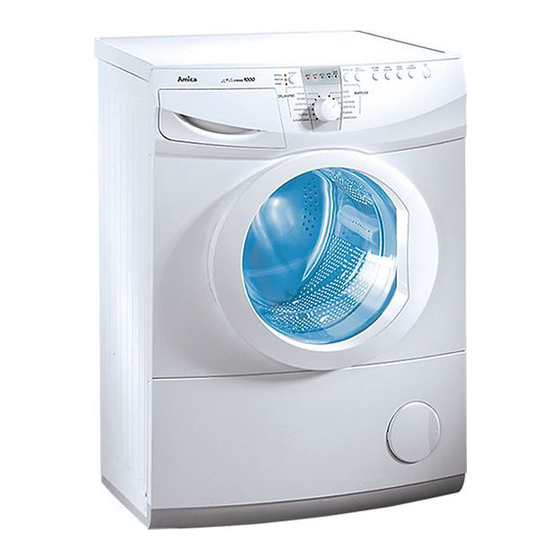

Operating manual
Washing machine
AWCM 10L
STANDBY
+
ZIMNA
RUN
COLD
95 C 60 C 40 C 30 C
WODA
END
WOOL
DELICATE
HAND WASH
SYNTHETICS
EVERYDAY
REFRESH
EFFECT PLUS
RINSING
RINSING
AUTO DRAIN
SPINNING
Start up your washing machine only once you've read the
Manual and the abridged Instructions for Use!
1000
1000
400
400
0
0
WHITES
COTTON
COLOURS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amica AWCM 10L
Summary of Contents for Amica AWCM 10L
- Page 1 Operating manual Washing machine AWCM 10L STANDBY 1000 1000 ZIMNA COLD 95 C 60 C 40 C 30 C WODA WOOL WHITES DELICATE COTTON HAND WASH COLOURS SYNTHETICS EVERYDAY REFRESH EFFECT PLUS RINSING RINSING AUTO DRAIN SPINNING Start up your washing machine only once you’ve read the...
-
Page 2: Table Of Contents
TAbLe of ConTenTs General information......................3 Safety instructions ......................4 Installation........................5 Troubleshooting guide....................7 Care labels symbols......................10 Maintenance and cleaning....................11 Practical washing hints....................11 Technical data........................16 Guarantee and service....................16 Disposing of the device When disposing of the device, do not bring it to regular municipal waste containers. Instead, bring it to electrical and electronic waste recycling and reuse center. - Page 3 DeAr CusToMer By reading this Manual you will become a conscious user of new washing machine, a mod ern and technologically advanced product. The new automatic washing machine has been designed by technicians and en gi neers working in constructional and research forces, using the latest technical knowl edge and modern designing tools.
-
Page 4: Safety Instructions
sAfeTy insTruCTions burns The window and door of your washing machine are hot during op eration. Do not allow children in the vicinity of the appliance. Use only those washing agents and bleaches that are appropriate for washing in automatic washing machines. Washing agents Do not use any solventcontaining washing agents as they may dam... -
Page 5: Installation
insTALLATion i. remove all the packing materials (keep them for future use!) Unscrew the screws using a Unscrew the bolt Remove the transport guard screwdriver. together with sleeves and bolts. lRemove the sleeve and bolt. Unscrew the bolts that fix the guard. - Page 6 iii.Water supply Inlet hose with seals. Water pressure min.1bar, max. 8 bar. Feed the appliance only with cold water! iV.Water outlet max 100 cm min. 50 cm Secure the drain hose so it does not move dur ing operation! Do not insert the drain hose too dip into the water pipe! V.Power supply The connection must be made with a correctly installed, earthed...
-
Page 7: Troubleshooting Guide
TroubLeshooTing guiDe Flashing signal light SPIN TEMPERATURE SPEED STANDBY 1000 COLD Shining signal light The washing machine has been equipped with a system that with use of “Temperature” LEDs per forms signalling in case of some problems related with the incorrect operation. Reason of displaying a code What you should do by yourself The appliance will not operate... - Page 8 no water in the washing machine Open the tap. Clean the mesh filter on the water TEMPERATURE STANDBY supplying hose. COLD Code: shinning signal light 95 o C + 60 o C + CoLD Washing interrupted VII. Clean the pump filter. Clean the water outlet hose.
-
Page 9: Care Labels Symbols
Poor rinsing results Adjust the dose of the washing agent to XIII. the degree of soiling and water hardness (see re com men da tions on the washing agent packaging). Select appropriate programme. The appliance remembers the last error. To cancel the error sign press START button for approx. 3 sec. -
Page 10: Maintenance And Cleaning
MAinTenAnCe AnD CLeAning Never use solvents or sharp, abrasive cleaning agents (for example cleaning powders) to clean the cover and plastic parts! Clean the appliance using delicate, liquid cleaning agents. Clean the filter periodically, after approx. 20 washing cycles. I. Pump filter Forgetting to clean the filter may cause diffi... -
Page 11: Practical Washing Hints
Load Maximum drum capacity: 6,0 kg for AWCM 10L type washing machine Load clothes into the drum observing the following in- structions: cotton - full drum (do not force clothes into the drum as it may reduce the washing efficiency!). - Page 12 V. Displayed information Shining signalling lamp indicates spin speed setting SPIN TEMPERATURE SPEED STANDBY 1000 COLD Temperature Spin speed Shining signalling light indicated adjustment adjustment washing temperature setting Temperature correction Pressing continually “TEMPERATURE” pushbutton causes cyclical setting changes. The following temperature setting is possible: for programme COTTON WHITE, EFFECT PLUS 90 o C, 60 o C, 40 o C, 30 o C, COLD for programme COTTON COLOUR, REFRESHING MANUAL, COT-...
- Page 13 Warning! The more delicate textile, the lower temperature and spin rotations should be selected. For silk, wool and other delicate textiles “Stop with water” option is the most ap propriate. The range of max. temperature and spin rotations adjustments for the respective programmes is specified in the “Programme table”...
- Page 14 Vi. Door lock The appliance is equipped with a door lock, which prevents opening the appliance door during the washing process. In case after interrupting the cycle or after finishing washing you cannot open the door it means that the door lock is still active.
- Page 15 iX. Dosage Insufficient dose of the washing agent causes: Grey laundry. Pellets of oil, built up scale. Overdosing the washing agent causes: Excessive foaming Reduced washing efficiency, poor rinsing results. X. savings Energy and water Wash lightly soiled linen applying Refreshing, Every Day programme or activate „short wash”...
-
Page 16: Technical Data
C pro gramme): water consumption during one washing cycle is 54,5 l power consumption is 1,02 kWh *AWCM 10L washing machine, guarantee Guaranteed services according to the Guarantee Card The manufacturer will not be held responsible for any damages resulting from inappropriate usage of the appliance.
