Summary of Contents for Amica AWM712D
-
Page 1: Instruction Manual

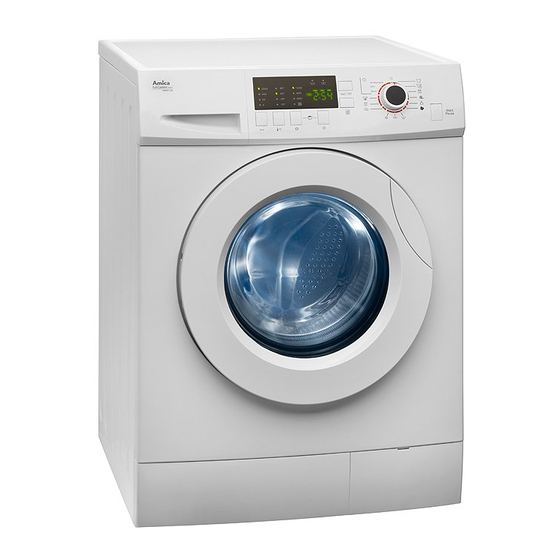

AWM712D INSTRUCTION MANUAL WASHING MACHINE Please read this instruction manual carefully before using the appliance! IO 00405/3 (02.2011) -
Page 2: Table Of Contents
CONTENTS Basic Information....................3 Notes on Safety........................4 Installing the Washing Machine.................6 Understanding the symbols on clothes labels..........8 Description of the appliance.....................8 Description of control panel..............9 Using the appliance...................12 Special programs................13 Table of programmes................14 Tr o u b l e s h o o t i n g ................1 6 Maintenance and Cleaning..............18 Practical Hints on Washing..............19 Specification....................22... -
Page 3: Basic Information
DEAR CUSTOMER From today, washing will be easier than ever before. The Amica washing machine combines exceptional ease of use with excellent effectiveness. Once you have read the instructions, operating the washing machine will not be a problem. Before being packed and leaving the factory, the safety and functions of this washing machine were carefully tested. -
Page 4: Notes On Safety
NOTES ON SAFETY Cleaning agents Use only those cleaning and purifying agents which are designed for automatic washing machines, particularly on the COTTON 90° setting. Do not use any agents containing solvents, as these may damage certain parts of the machine, or cause them to emit poisonous gases. There is also a risk of ignition and explosion. - Page 5 NOTES ON SAFETY Checking stability Once the washing machine is in position and levelled, it must be checked to ensure it is standing stably on all four legs. This is checked by pressing down each corner in turn and seeing if the machine moves. Safe, long-term and reliable operation of the washing machine depends on it being correctly positioned and level.
-
Page 6: Installing The Washing Machine
INSTALLING THE MACHINE I. Remove the transport protection (keep the blocking bolts for future use, e.g. when moving house). Unscrew the 4 blocking bolts with a spanner. Stop up the holes with the stoppers Remove the rubber and plastic transport included in the bag of accessories. - Page 7 INSTALLING THE MACHINE III. Connecting the water supply Use the new hoses sup- plied with the machine. Do not re-use hoses. A supply hose with seals is inside the drum of the machine. Water pressure min 0.1 MPa (1 bar), max 0,8 MPa (8 bar). Supply the machine with cold water Important points: after connecting, make sure the hose is not twisted after connecting the hose and the valve, check they are sealed tight...
-
Page 8: Understanding The Symbols On Clothes Labels
UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS I. Washing boiling temp normal temp normal temp DO NOT 60°C 40°C wash! 90°C delicate handwash II. Chemical cleaning all solvents all except TRI petrol only DO NOT dry clean! III. Spin dryer DO NOT normal high dry! -
Page 9: Description Of Control Panel
DESCRIPTION OF CONTROL PANEL 1. Display The display shows the following symbols: ([PRE], [WASH], [RINSE], [SPIN]) to signal the appropriate phases of the washing programme. Approximate washing time Time displayed is an estimate only. It can differ from the actual washing time depending on temperature, water pressure, quantity of laundry loaded, and quantity of washing powder used. -
Page 10: Programme Selector Knob
DESCRIPTION OF CONTROL PANEL 2. Programme selector knob Choose the appropriate cleaning wash programme as required, depending on the degree of dirt, and type and amount of laundry loaded, which ensures better results and more ef- fective washing. Once the cleaning programme is started, turning the programme selector knob to another position is indicated by an acoustic signal however it does not change the previously selected programme. - Page 11 DESCRIPTION OF CONTROL PANEL 8. Quick access button Quick access function allows the door to be opened immediately during wash cycle in order to add laundry. Press this button to unlock the door within several seconds. After adding laundry close the door and press the Start button. The appliance will resume a washing program.
-
Page 12: Using The Appliance
Using the appliance I. Programme selection 1.Set the programme selector knob to the desired programme (see the table further on). 2.Change the quantity of water, temperature, spin speed or activate available additional functions to modify the programme to your individual needs. 3.Press the button. -
Page 13: Special Programs
Special programs I. Self Clean programme High temperature cleaning is a special programme for cleaning the appliance’s drum and tank. This programme uses 95°C high temperature sterilisation to ensure more effective washing of clothes during subsequent washing cycles. Do not load any laundry when using the self-cleaning programme. -
Page 14: Table Of Programmes
TABLE OF PROGRAMMES Programme name Recom- Max. tem- Max. Maxi- Additional functions mended perature spin available tempera- speed load Extra Prewash ture C [rpm] [kg] Rinse Cottons 1200 Option Option Quick Wash 1200 Option None Cottons-Stains* 1200 Option Option Wool Option None Synthetics... - Page 15 Detergent drawer Time Instructions regarding types of load [h:min] Pre- Basic Fabric wash wash softener Heavily or moderately soiled bed linen, table linen, underwear, 1:37 towels, shirts, cotton or linen 0:28 A very short programme for lightly soiled laundry 2:54 ...
-
Page 16: Tr O U B L E S H O O T I N
TROUBLESHOOTING Problem Probable cause/Solution The washing machine is not -Turn the tap on. -Clean the mesh filter on the supply hose. working -Close the door of the appliance. -Press the [Start/ Pause] button. Water leaks -Properly connect the water intake. The load in the appliance has not -Replace the load evenly in the drum, clean the pump filter. - Page 17 TROUBLESHOOTING The Fault Indicator Lights The washing machine has a system of CODES shown on the display, which helps to locate minor operating faults and identify their cause. Fault is indicated by the symbols: Display Reason Solution indication Low pressure, no Unscrew the water valve, check the water inlet hose and water in the filter, check the water pressure.
-
Page 18: Maintenance And Cleaning
MAINTENANCE AND CLEANING Never clean the product’s casing or plastic parts using solvents or strong, abrasive cleaning agents (e.g. washing powders or creams)! Only use delicate liquid cleaning agents and soft cloths. Do not use sponges. Clean the pump filter every 20 wa- I. -
Page 19: Practical Hints On Washing
PRACTICAL ADVICE REGARDING WASHING I. Cleaning and Cleaning agents purifying agents Follow the manufacturer’s instructions. Pour the cleaning agent into the container chamber marked Pour the pre-wash cleaning agent into the container chamber marked Fabric softeners added to the rinse Follow the manufacturer’s instructions. - Page 20 PRACTICAL ADVICE REGARDING WASHING V. Water hardness Hard water causes stone sediment to form. Information about water hardness is available from the nearest water works. It is advised that water softeners are used for every wash. Power outage or unplugging the machine does not cancel the VI.
- Page 21 PRACTICAL ADVICE REGARDING WASHING According to the cleaning agent manufacturer’s instructions. X. Dosing Too little cleaning agent The washing turns grey. Lumps of grease form, stone sediment builds up. Too much cleaning agent Strong foaming. Ineffective washing, detergent incompletely rinsed from fabrics.
-
Page 22: Specification
SPECIFICATION -Type AWM712D -Voltage rating 230V / ~50Hz. -Power rating 2200 W -Power overload protection 10 A -Drum capacity max 7,0 kg -Water pressure min 0,1 MPa (1 bar) max 0,8 MPa (8 bar) Dimensions: -Depth/Height/Breadth 565 / 840-855 / 595... -
Page 23: Technical Description
TECHNICAL CHARACTERISTICS (in accordance with the Regulation of the Minister of the Economy of 20 May 2005 on the requirements for technical documentation, labelling, specification and label templates for appliances) AWM712D TYPE Energy efficiency class 1) 2) Power consumption [kWh/cycle]...
