Page 1: Instruction Manual

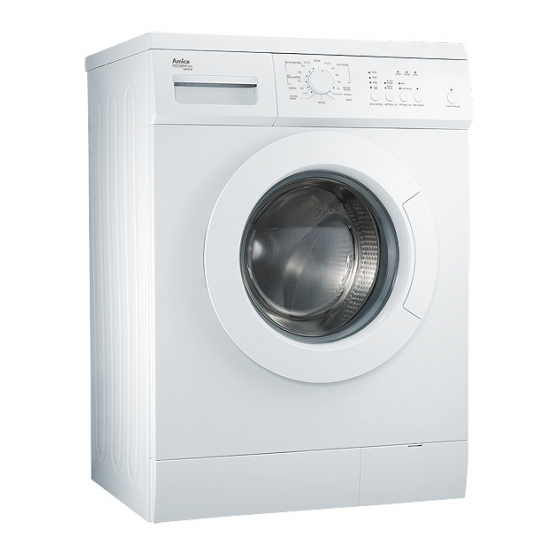

AWP510L AWP512L INSTRUCTION MANUAL Washing machine Please read these instructions carefully before use. IO 00433/4 (02.2011) -
Page 2: Table Of Contents
CONTENTS Basic Information........................3 Notes on Safety........................4 Installation of the Washing Machine.................6 Understanding the symbols on clothes labels................8 Description of control panel....................9 Using the appliance......................11 Table of programs....................12 Troubleshooting.....................14 Maintenance and Cleaning..................15 Practical Hints on Washing....................16 Service........................18 Technical Specification..................18 In accordance with European Directive 2002/96/EC and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. -
Page 3: Basic Information
DEAR CUSTOMER From today, washing will be easier than ever before. The Amica washing machine combines exceptional ease of use with excellent effectiveness. Once you have read the instructions, operating the washing machine will not be a problem. Before being packed and leaving the factory, the safety and functions of this washing machine were carefully tested. -
Page 4: Notes On Safety
NOTES ON SAFETY Cleaning agents Use only those cleaning and purifying agents which are designed for automatic washing machines, particularly on the COTTON 90° setting. Do not use any agents containing solvents, as these may damage certain parts of the machine, or cause them to emit poisonous gases. There is also a risk of ignition and explosion. - Page 5 NOTES ON SAFETY Checking stability Once the washing machine is in position and levelled, it must be checked to ensure it is standing stably on all four legs. This is checked by pressing down each corner in turn and seeing if the machine moves. Safe, long-term and reliable operation of the washing machine depends on it being correctly positioned and level.
-
Page 6: Installation Of The Washing Machine
INSTALLATION OF THE WASHING MACHINE I. Removing the transport protection (keep the blocking bolts for future use, e.g. when moving house). Unscrew the blocking bolts with a spanner. Stop up the holes with the stoppers Remove the rubber and plastic transport included in the bag of accessories. - Page 7 INSTALLATION OF THE WASHING MACHINE III. Connecting the water supply Use the new hoses sup- plied with the machine. Do not re-use hoses. A supply hose with seals is inside the drum of the machine. Water pressure min 0.1 MPa (1 bar), max 0.8 MPa (8 bar). Supply the machine with cold water Important points: after connecting, make sure the hose is not twisted after connecting the hose and the valve, check they are sealed tight...
-
Page 8: Understanding The Symbols On Clothes Labels
UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS I. Washing boiling temp normal temp normal temp DO NOT 60°C 40°C wash! 90°C delicate handwash II. Chemical cleaning all solvents all except TRI petrol only DO NOT dry clean! III. Spin dryer DO NOT normal high dry! -
Page 9: Description Of Control Panel
DESCRIPTION OF CONTROL PANEL AWP510L AWP512L 1. Program selection knob Choose the appropriate cleaning wash programme as required, depending on the degree of dirt, and type and amount of laundry loaded, which ensures better results and more ef- fective washing. Once the cleaning programme is started, turning the programme selector knob to another position is indicated by an acoustic signal however it does not change the previously selected programme. -
Page 10: Extra Rinse/Easy Iron
DESCRIPTION OF CONTROL PANEL 3. Option button - Extra Rinse / Easy Iron Press Option 1/2 button to acitivate Extra Rinse or Easy Iron functions or both of these functions at the same time. Activation of function is indicated by a LED lighting up next to the function symbol. -
Page 11: Using The Appliance
USING THE APPLIANCE I. Programme selection 1.Set the programme selector knob to the desired programme (see the table further on). 2.Change spin speed or activate available additional functions to modify the programme to your individual needs. 3.Press the START/PAUSE button. II. -
Page 12: Table Of Programs
TABLE OF PROGRAMS AWP510L AWP512L Additional Detergen functions available Programe Temp. Max. Max. Max. Extra Easy Pre- Main name [C°] Spin Speed Spin Speed load [kg] Rinse Iron Wash [rpm] [rpm] Cottons cold * (cold water) 1000 1200 Cottons 40 40°... - Page 13 TABLE OF PROGRAMS Additional Detergent drawer functions available Intensive Pre- Main Fabric Time Instructions regarding type of Wash Wash Wash softener [h:min] load 01:30 Lightly or medium soiled sheet linen tablecloths, linen, towels, cotton or linen shirts, etc. 01:20 Medium soiled sheet linen tablec- ...
-
Page 14: Troubleshooting
TROUBLESHOOTING The fault indicator lights The washing machine has a system of Codes, which helps to locate minor operating faults and identify their cause. Fault is indicated by LED’s [Wash, Rinse, Spin] on the panel. Alarm Code Status of corresponding Reason Solution LED indicators... -
Page 15: Maintenance And Cleaning
MAINTENANCE AND CLEANING Never clean the product’s casing or plastic parts using solvents or strong, abrasive cleaning agents (e.g. washing powders or creams)! Only use delicate liquid cleaning agents and soft cloths. Do not use sponges. Clean the pump filter every 20 washes or so. I. -
Page 16: Practical Hints On Washing
PRACTICAL HINTS ON WASHING I. Cleaning and Cleaning agents purifying agents Follow the manufacturer’s instructions. Pour the cleaning agent into the container chamber marked Pour the pre-wash cleaning agent into the container chamber marked Fabric softeners added to the rinse Follow the manufacturer’s instructions. - Page 17 PRACTICAL HINTS ON WASHING Power outage or unplugging the machine does not cancel the VI. Power cut setting. This has been memorised and the cycle will continue (programme once the power is restored. Do not open the doors of the wa- memory) shing machine during a power cut.
-
Page 18: Service
TECHNICAL DATA -Type AWP510L / AWP512L -Voltage rating 230V / ~50Hz -Power rating 2100 W -Power overload protection 10 A -Maximal load max 5,2 kg -Water pressure min 0,1 MPa (1 bar) max 0,8 MPa (8 bar) -Dimensions W x D x H... -
Page 19: Technical Specification
TECHNICAL SPECIFICATION (In accordance with the Regulation of the Minister of Economy of 20 May 2005 on the requirements for technical documentation, labelling, specification and label templates for appliances). AWP510L AWP512L TYPE Energy efficiency class 1) 2) Power consumption [ kWh/cycle ]... - Page 20 Service Help Line 0844 815 8880 For the UK: please call 0818 46 46 46 For Ireland: please call...
