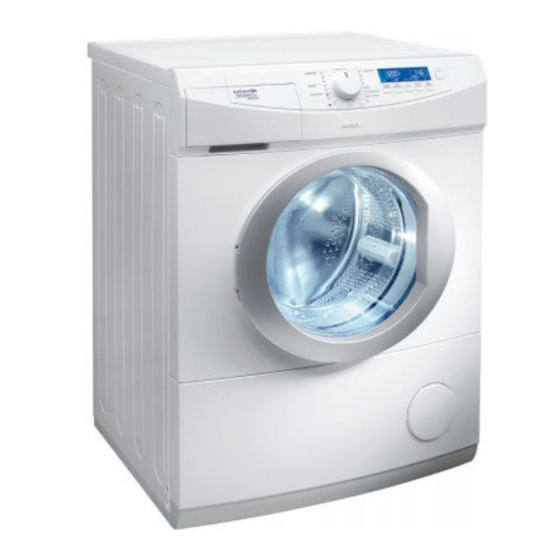

Page 1: Washing Machine
AWSN 10DA AWSN 12DA AWCN 10DA AWCN 12DA AWCN 14DA AWCN 12DAB Operating manual Washing machine Start up your washing machine only once you’ve read the Manual and the abridged Instructions for Use! IOAP-240 (11.2009./1) -
Page 2: Table Of Contents
Table of conTenTs General information......................3 Safety instructions ......................4 Installation..........................6 Display of the washing machine..................8 Care labels symbols......................10 Maintenance and cleaning....................11 Practical washing hints.....................12 Technical data........................18 Guarantee and service......................18 Disposing of the device When disposing of the device, do not bring it to regular municipal waste con- tainers. -
Page 3: General Information
Dear cusTomer Washing gets simpler than ever from today. The automatic washing machine is an as so cia- tion of an extremely easy operation and a perfect washing effect. After the use in struc tions have been read, the operation of the appliance is no more problem. Before the automatic washing machine could leave the manufacturer work, it was tho ro ugh ly checked for safety and function at test beds before packing. -
Page 4: Safety Instructions
safeTy insTrucTions The window and door of your washing machine are hot during op eration. burns Do not allow children in the vicinity of the appliance. Use only those wash- ing agents and bleaches that are appropriate for washing in automatic washing machines. - Page 5 safeTy insTrucTions stability control When the washing machine is installed and levelled, make sure that all four feet are resting firmly on the floor by pressing down each corner and checking if the appliance stands still. Never allow children to remain unattended near the cooktop nor to play with the control panel.
-
Page 6: Installation
insTallaTion of THe WasHinG macHine i. remove all the packing materials (keep them for future use!) Unscrew the screws using a Unscrew the bolt Remove the transport guard toge- screwdriver. ther with sleeves and bolts. Remove the sleeve Unscrew the bolts that fix and bolt. -
Page 7: Installation Of The Washing Machine
insTallaTion of THe WasHinG macHine III. Water connection Use new complete hoses supplied together with the equipment. Do not apply the already used hoses. Connection of the supply hose with Aqua the inlet hose with seals is in the drum of Stop the washing machine Water pressure min. -
Page 8: Display Of The Washing Machine
DisPlay of THe WasHinG macHine error coDes In the case of occurrence of minor problems related to the improper operation of the washing machine, it s equipped with a system, which helps to localise these problems and establish their cause by means of “CODES” shown on the LCD display. The appearance of Exx or Err with one of the three symbols signals the detection of an error ”clogged pump”... - Page 9 DisPlay of THe WasHinG macHine error coDes V. The washing machine is overloaded Clean the pump filter Reduce the load KoD: Screw the pump filter Check the drain hose and fasten VI. Water under the washing machine it, if necessary Check the water supplying hose Remove the transport protec- VII.
-
Page 10: Care Labels Symbols
DisPlay of THe WasHinG macHine error coDes ATTENTION! The washing machine saves the latest CODE. To cancel the displayed CODE push pushbutton for approximately 2 seconds, (see programme cancelling). In case the problem occurred the washing machine door remains blocked. care label symbols boiling Do not... -
Page 11: Maintenance And Cleaning
mainTenance anD cleaninG Never use solvents or sharp, abrasive cleaning agents (for example cleaning pow- ders) to clean the cover and plastic parts! Use only a mild liquid detergent applied with a soft, damp cloth. Do not use sponges. I. . Pump filter Clean the filter periodically, after approx. -
Page 12: Practical Washing Hints
PracTical WasHinG HinTs I.Cancelling and In order to stop the programme, press the button to turn the washing machine off and on. changing the programme If the wrong programme has been set by mistake, it is possible to change it: Firstly, stop the currently selected programme by turning the washing machine off and on, and select a different programme. -
Page 13: Additional Functions
PracTical WasHinG HinTs V. Control elements of the washing machine Door interlock spin rotations re- Errors Time section (the rough time gulation section necessary to finish or to start the washing) Additional functions Delayed washing Washing program symbol progress level Roughly estimated time until the end of a washing cycle Time displayed on the clock is only a forecast and may be different from the real washing time, depending on water temperature and pressure, load size and amount... - Page 14 PracTical WasHinG HinTs “Easy iron” After the last spin, the drum of the washing machine performs additional movements for a few minutes, reducing the creases. The speed of spinning is automatically reduced to 800 rotations. “Spin off ” The washing machine does not spin after washing and rinsing. The function is ap- plicable in the case of washing the fabrics, for which spinning is not recommended by the manufacturer.
- Page 15 PracTical WasHinG HinTs DELAYED WASH This function enables pre-programming of the washing machine, so that the programme could be started automatically at a later userdefined time (from 0.5 to 24 hours). Within 0.5 to 3 hours, it is possible to set the delay time every 30 minutes. Within 3-24 hours it is possible to set the delay time every hour.
- Page 16 PracTical WasHinG HinTs VI. Load Maximal drum capacity: 5.0 kg for washing machines of AWSN type 6.0 kg for washing machines of AWCN type Load the clothes into the drum of the washing machine following the recommendations stated below: cotton – full drum (do not force clothes into the drum, as it worsens the quality of wash) synthetics –...
- Page 17 PracTical WasHinG HinTs Pour a dose of the washing agent into the chamber as recommen- ded by the manufacturer. The washing agent may also be poured directly into the washing machine drum. IX. Delicate Programme Select an appropriate washing programme (SYNTHETICS, WOOL, fabrics DELICATE).
-
Page 18: Technical Data
TecHnical sPecificaTion Type aWsn xxDa/aWcn xxDa/aWcn xxDab Rated voltage 230V / 50Hz. Rated power 2300 W. Overcurrent protection 10 A. Maximal load max 5,0 kg*/6,0 kg** Water pressure min 0,1 MPa (1 bar), max 0,8 MPa (8 bar). Overall dimensions 425*, 505**/ 850 / 595 Weight 61 kg*/65 kg**... - Page 19 (In accordance with the Regulation of the Minister of Economy, Labour and Social Policy dated April 2003 on the requirements regarding the energy efficiency). Type Manufacturer name AMICA WRONKI S.A. Energy efficiency class 1) 2) Electric power consumption in 0,85...
- Page 20 Service Help Line 0844 815 8880 For the UK: please call 0818 46 46 46 For Ireland: please call...
