  • Page 1 Operator and Parts Manual Blower Kit 48" Collection System 966004501...

  • Page 2: Table Of Contents

    KNOW YOUR BLOWER SYSTEM READ THIS OPERATION MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR BLOWER SYSTEM. Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the assembly. Study the operating instructions and safety...

  • Page 3: Safety Rules

    SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS DANGER ! THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. GENERAL OPERATION • Read, understand and follow all instructions in the manual and on the machine before starting.

  • Page 4: Children

    SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS DO NOT • Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible. • Do not mow near drop-off, ditches, or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.
  • Page 5 SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS • Keep machine free of grass, leaves, or other debris buildup. Clean oil or fuel spillage. Allow machine to cool before storing. • Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting. • Never make adjustments or repairs with the engine running. •...
  • Page 6 BEFORE ASSEMBLING GRASS CATCHER TO MOWER: • Set parking brake. • Place motion control levers in “NEUTRAL” position. • Turn ignition key “OFF” and remove key. • Make sure the blades and all moving parts have completely stopped. • Disconnect spark plug and place wire where it cannot come in contact with plug. CONTAINER CONTENTS • • Blower Assembly • • Belt Shield • • Mounting Bracket • Weight Upper Chute Middle Chute Belt Cover Drive Pulley Belt Bag of Hardware Blower Housing...

  • Page 7: Assembly

    7. Reinstall the nut on the spindle and torque to 55- 75 ft/lbs. 8. Reinstall the deck belt. Drive Pulley ASSEMBLY MOUNTING BLOWER ASSEMBLY 1. Position blower over the discharge tabs on the deck and set blower onto the deck. 2. Be sure the blower is sitting flush against the outside of the deck. Deck Height Adjustment Contact Area Belt Cover 3. Install the front mount bracket to the deck with the...
  • Page 8 Hood Latch Weld Nut Twist in Belt Lock Washer Flat Washer Latch Location INSTALLING MIDDLE CHUTE 1. Place middle chute over the top end of the blower assembly. 2. Latch middle chute to blower assembly. Retainer Machine Screw Trim Line Middle Chute...
  • Page 9 INSTALLING BAGGER MOUNT 1. To select the right support straps to use, measure the mower frame just behind the casters, as shown. For frames measuring 26" use support straps A, for frames measuring 23" use support straps B. ASSEMBLY 2. Install the bagger mount tube to the rear guard with -18 x 3¼ bolts and flange nuts from kit.
  • Page 10 INSTALLING CHUTE SUPPORT 1. Position upper chute support against bagger inlet, flush at outer edges. See Illustration. 2. Using support as a template, drill two bagger hood. Upper Chute Support Bagger Hood Bagger Inlet 3. Secure upper chute support to hood with hex bolts, washers and nyloc nuts. Flat Washers Hex Bolt ASSEMBLY...

  • Page 11: Tips For Improved Bagging

    INSTALLING SPACER PLUGS Remove plastic end caps from the center two bag support arms. Fully insert spacer plugs into the ends of the support tubes. It may be necessary to tap the spacers into place with a hammer or mallet. Replace the plastic end cap back over the spacer.

  • Page 12: Operation

    • If the grass catcher fails to pick up cut grass or leaves, it is an indication that clogging has occurred in the system or that the grass catcher containers are full. a. Disengage blades, place motion control levers in neutral position. - Unlatch and raise cover. - Slide out containers and dispose of clippings.

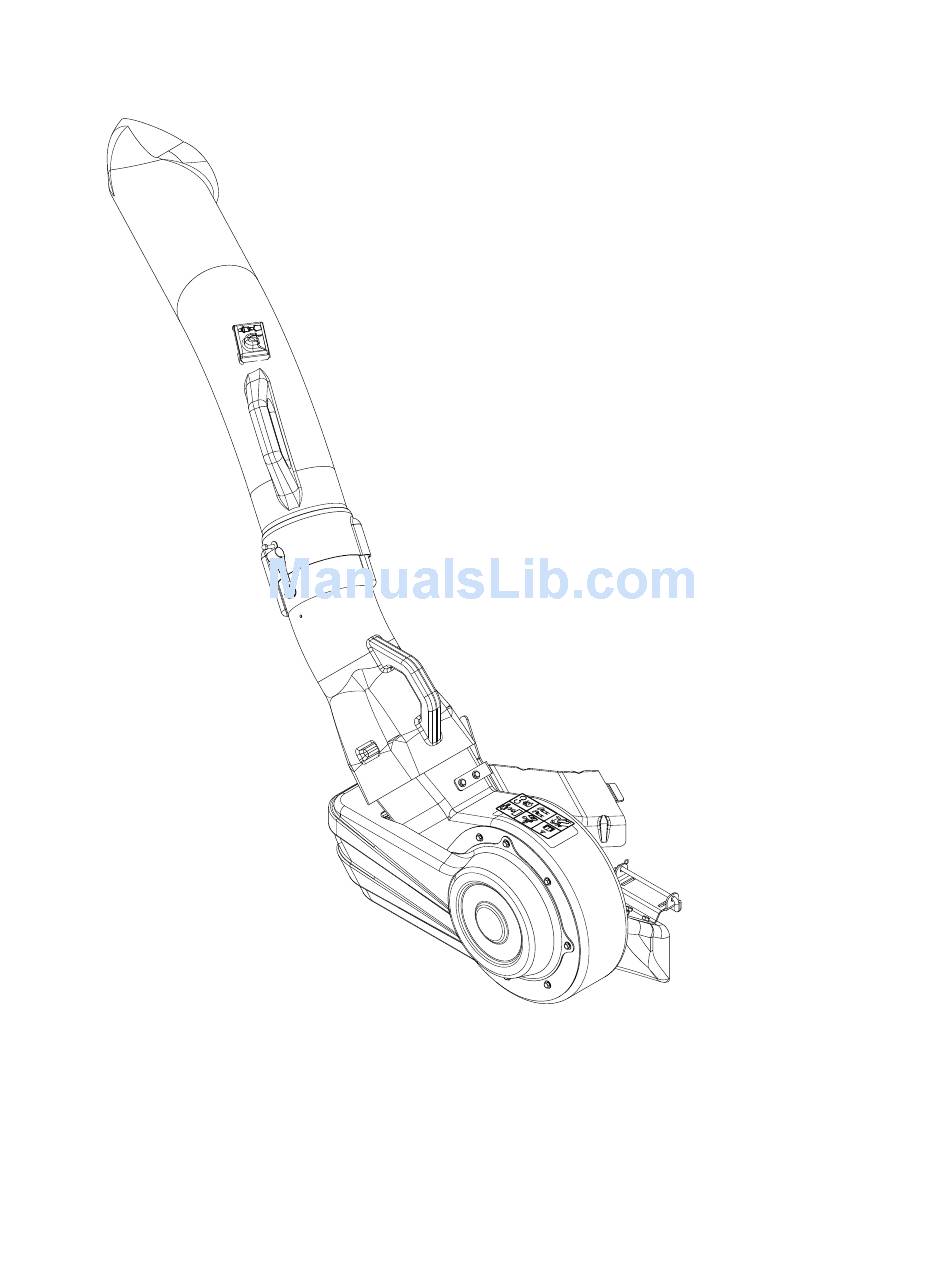

  • Page 13: Repair Parts

    Torque to 30 ft/lbs REPAIR PARTS...
  • Page 14 ITEM PART NO. QTY. DESCRIPTION 539 101977 ... 1 ... TRACTION SPRING 539 976952 ... 1 ... SCREW 10-24 x .625 RD 539 104411 ... 1 ... KNOB W/STUD 539 104763 ... 1 ... RETAINER U TYPE 539 105785 ... 1 ... DECAL, WARNING 539 106741 ...
  • Page 15 REPAIR PARTS...
  • Page 16 ITEM PART NO. QTY. DESCRIPTION 539 108081 ... 1 ... SCREW, SPEC 10-14 x ½ 539 108082 ... 1 ... INDICATOR, BAG DUMP 539 108083 ... 2 ... SCREW 10-24 x 1 539 108084 ... 3 ... WASHER 539 108085 ...
  • Page 17 REPAIR PARTS...
  • Page 18 ITEM PART NO. QTY. DESCRIPTION 532 192709 ... 1 ... SCREEN, COVER 532 195373 ... 1 ... COVER 539 976952 ... 6 ... SCREW #10-24 x 539 108096 ... 2 ... HAIR PIN 539 108097 ... 4 ... PLUG, TUBING END 532 176990 ...
  • Page 19 REPAIR PARTS...
  • Page 20 ITEM PART NO. QTY. DESCRIPTION 539 111587 ... 1 ... WEIGHT PLATE 522 923202 ... 2 ... WEIGHT BRACKET 521 996501 ... 8 ... NUT -16 HEX FLANGE 539 108271 ... 4 ... HCS -16 x 3½ 539 101341 ... 4 ... HCS -16 x 3 539 130306 ...
  • Page 21 P/N 115 145127 R01 05/09/09...
