Ikegami ICD-48 Quick Manual

1/2" CCD Multi-Function DSP Monochrome Camera
ICD-48
ICD-48E

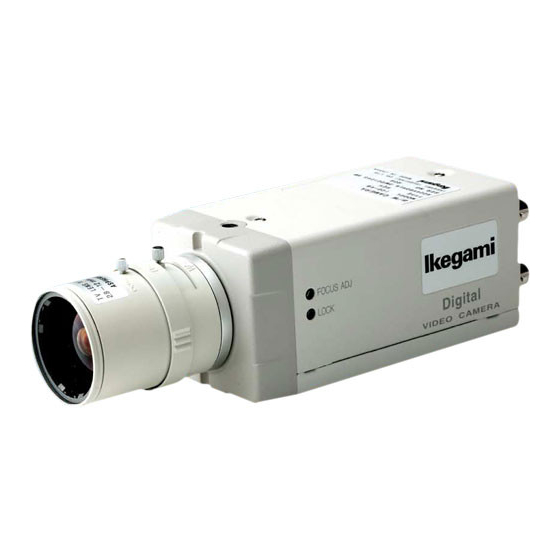

The ICD-48/ICD-48E is a 1/2" CCD Multi-Function DSP Monochrome Camera,
which is High Sensitivity ( 0.0075 lux at F1.2 ) and High Resolution ( Horizontal Resolution 570 TV Lines [ EIA ] /
560 TV Lines [ CCIR ]) . Furthermore it is a high performance of Digital Signal Processing
and remote set up is available even if a camera is installed at the height.

High Sensitivity

It is suitable for an outdoor surveillance, which requires 24 hours surveillance
continuously, with its high sensitivity performance of 0.0075 lux at F1.2.
Furthermore its sesitivity reaches to near-infrared range ( 800nm to 1000nm
approx. ) , which is about five times higher than conventional IT CCD camera.
Conventional Camera
High Resolution and High Quality Picture
It has a high horizontal resolution of more than 570 TV Lines ( EIA ) / 560 TV
Lines ( CCIR ) and realizes a high quality picture of Signal to Noise ratio
more than 50 dB.
Low Smear Level
It is a low smear design of -120dB. Even if there are headlights of car on the
scene at the parking lot, natural image can be taken.
Conventional Camera
[EIA]
[CCIR]

Remote set up is available

Not only by pushing buttons on the rear panel of
camera for set up, but remote set up by RS-485 is
also available. It is available to change set up
from a PC through RS-485 connection after
installation, even if it is installed at the height and
the distance.
OSD Set Up Items
Camera ID set up, AES/Electronic Shutter selection, BLC ON/OFF/SPOT selection and level
adjustment, DC Iris level adjustment, AGC/Hyper-AGC selection and GAIN LOW/MID/HIGH
( AGC OFF ) selection, INTERNAL LOCK/LINELOCK selection and phase adjustment, GENLOCK
phase adjustment, DETAIL level adjustment, PEDESTAL level adjustment, MENU LOCK
ICD-48/ICD-48E
BLC ( Back Light Compensation ) function
In addition to a common BLC function, it has a SPOT BLC function which
adjusts the selected area with appropriate brightness.

Electronic Shutter

It has 9 steps of manual electronic shutter from 1/60 ( CCIR 1/50 ) to 1/
100,000 seconds. And it also has a variable shutter function which can
change its shutter speed variably with its range from 1/60 ( CCIR 1/50 ) to 1/
100,000 seconds.

Fulfilling functions are equipped.

It has fulfilling functions like an AES ( Automatic Electronic Shutter )
function, 2 ways of Auto Iris Functions; VIDEO Iris and DC Iris, and a LINE
LOCK function.
ICD-48/ICD-48E
