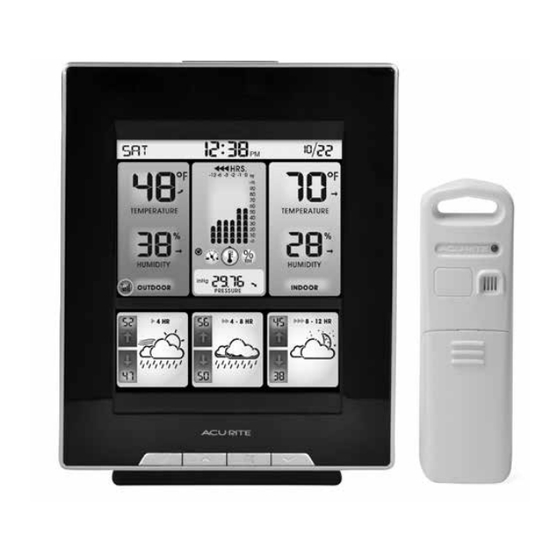

AcuRite 2007 Instruction Manual
  1. Manuals
  2. Brands
  3. AcuRite Manuals
  4. Weather Station
  5. 2007
  6. Instruction manual
AcuRite 2007 Instruction Manual

AcuRite 2007 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CONTENTS
Package Contents .................. 2
Product Registration ............... 2
Setup .................................... 6
Sensor Setup ......................... 6
Display Setup ........................ 7
Setup Preferences .................. 8
Intelli-Time Clock .................... 8
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Backlight Settings ................... 9
Placement Guidelines ............10
Troubleshooting ....................12
Care & Maintenance .............13
Calibration ...........................14
Specifications ........................15
FCC Information ...................15
Customer Support .................16
Warranty..............................16
Contact Customer Support at
Instruction Manual

Weather Station

model 02007
Battery....14
®

Advertisement

Table of Contents
loading

Related Manuals for AcuRite 2007

Summary of Contents for AcuRite 2007

  • Page 1: Table Of Contents

    Sensor Setup ......6 Specifications ......15 Display Setup ......7 FCC Information ....15 Setup Preferences ....8 Customer Support ....16 Intelli-Time Clock ....8 Warranty......16 Questions? Contact Customer Support at (877) 221-1252 or visit www.AcuRite.com. SAVE THIS MANUAL FOR FUTURE REFERENCE.

  • Page 2: Unpacking Instructions

    Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product.

  • Page 3: Features & Benefits: Display

    Features & Benefits 10 11 BACK OF DISPLAY UNIT FRONT OF DISPLAY UNIT 6. A-B-C Switch 14. HISTORY CHART Mode ID code that must match sensor’s Press to toggle between pressure, A-B-C switch to ensure outdoor temperature or outdoor units synchronize. humidity on History Chart.
  • Page 4 Features & Benefits...
  • Page 5 DISPLAY UNIT 1. Day of the Week 18. Indoor High Humidity Record 2. Current Outdoor Temperatur Indicates highest indoor humidity Arrow icon indicates direction recorded since midnight. temperature is trending. 19. Indoor Low Humidity Record 3. Outdoor High Temperature Record Indicates lowest indoor humidity Indicates highest outdoor temperature recorded since midnight.

  • Page 6: Setup

    Take note of the A-B-C switch setting Install or Replace Batteries inside the battery compartment AcuRite recommends high quality for display unit setup. alkaline or lithium batteries in 2. Insert 2 x AA batteries into the outdoor sensor for the best the battery compartment, as product performance.

  • Page 7: Display Unit Setup

    Display Unit Setup Set the A-B-C Switch 2. Insert 3 x AA alkaline batteries into the battery Locate the A-B-C switch inside compartment, as shown. the battery compartment. Set Follow the polarity the A-B-C switch to A, B or C. (+/-) diagram in the battery You must select the same letter compartment.

  • Page 8: Setup Preferences

    Setup: Geographic Region Select your geographic region according to the map (pictured right) by pressing the “GEO” button, located on the back of the unit in the battery compartment. The letters for each corresponding GEO region are shown on the display screen.

  • Page 9: Backlight Settings

    Display Backlight Settings This weather station’s color display features three different lighting settings: High (100%) brightness, Medium (60%) brightness and Low (30%) brightness Using battery power alone, the backlight is available momentarily for 10 seconds by pressing the “BACKLIGHT” button. When display is powered with the power adapter, backlight remains on at 100% brightness.

  • Page 10: Placement Guidelines

    Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and outdoor sensor are critical to the accuracy and performance of this product. Display Unit Placement Place display unit in a dry area free of dirt and dust. Display stands upright for tabletop use or is wall-mountable.

  • Page 11: Using The Weather Station

    Using the Weather Station Precision Weather Forecasting AcuRite’s Precision Forecasting provides your personal forecast of morning, noon & night (4 hour, 4 to 8 hour and 8 to 12 hour) weather conditions. The patent-pending technology combines regional weather patterns with data measured by a sensor in your yard.

  • Page 12: Troubleshooting

    Troubleshooting If the wireless signal indicator shows no bars: • Relocate the display unit and/or the outdoor sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) No outdoor sensor away from electronics that may interfere with the wireless communication (such as TVs, microwaves,...

  • Page 13: Care & Maintenance

    If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call (877) 221-1252 for assistance. Care & Maintenance Display Unit Care Clean with a soft, damp cloth.

  • Page 14: Replace Intelli-Time ® Battery

    Replace Intelli-Time Clock Battery Intelli-Time technology is powered by a pre-installed coin-cell battery that stores CR2032 the time and date settings. The battery has a shelf life of several years. To replace the Intelli-Time battery: 1. Locate the coin cell battery compartment door on the back of the display unit.

  • Page 15: Specifications

    Specifications Outdoor: -40ºF to 158ºF; -40ºC to 70ºC TEMPERATURE RANGE Indoor: 32ºF to 122ºF; 0ºC to 50ºC Outdoor: 1% to 99% RH HUMIDITY RANGE Indoor: 1% to 99% RH 330 ft / 100 m WIRELESS RANGE depending on home construction materials 433 MHz OPERATING FREQUENCY Display: 5v power adapter...

  • Page 16: Customer Support

    Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 info@chaney-inst.com AcuRite 24/7 support at www.
  • Page 20 Plan your day with confidence ™ www.AcuRite.com ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights are the property of their respective owners. AcuRite uses patented...
