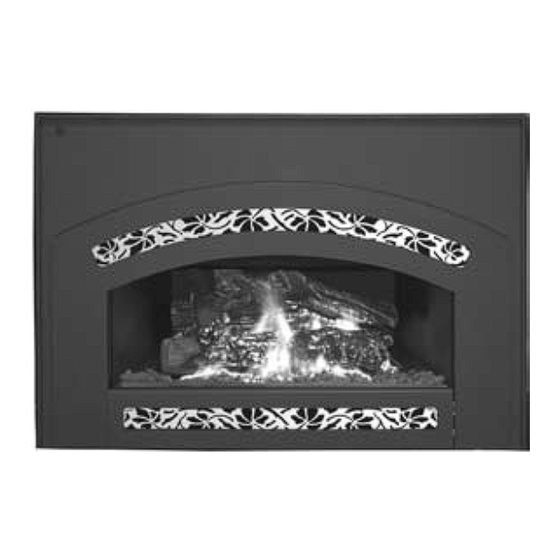

Medina direct-vent gas fireplace inserts
Hide thumbs
Also See for Merit Series:
- Installation instructions (2 pages) ,
- Installation manual (28 pages)
Table of Contents
Advertisement
Quick Links
I
n the Commonwealth of Massachusetts:
• Installation must be performed by a licensed plumber or gas fitter
• See Table of Contents for location of additional Commonwealth of
Massachusetts requirements
•
Hot! Do not touch! The glass and surfaces of this appliance will be hot during operation and will retain heat
for a while after shutting off the appliance. Severe burns may result.
• Carefully supervise children in the same room as appliance. If small children are present in the home, it is
recommended that this appliance be fitted with a barrier screen kit. See Page 21 for ordering information.
•
Suitable for installation into masonry or factory built fireplaces. These appliances may be installed in an after-
market permanently located, manufactured (mobile) home (USA only), where not prohibited by local codes. This
appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible
for use with other gases unless a certified kit is used.
•
Lennox Hearth Products gas-burning appliances are designed for use as a supplemental heater. They are not
intended for continuous use as a primary heat source.
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may
result causing property damage, personal injury
or death.
- D o not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• D o not try to light any appliance.
• D o not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier fr
neighbor's phone. Follow the gas supplier's
instructions.
• I f you cannot reach your gas supplier, call the
fire department.
- I nstallation and service must be performed by
a qualified installer, service agency or the gas
supplier.
INSTALLATION AND OPERATION MANUAL
Direct-Vent Gas
Fireplace Inserts
Installer: Leave This Manual With The Appliance.
Consumer: Retain This Manual For Future Reference.
P/N 775,221M Rev. C, 06/2009
A French manual is available upon request. Order P/N 775,221CF.
Ce manuel d'installation est disponible en francais, simplement
en faire la demande. Numéro de la pièce 775,221CF.
m a
o
Portland
US
Report No. 050-S-18b-5
WARNINGS
AVERTISSEMENT: Assurez-vous de bien suivre les instruc-
tions données dans cette notice pour réduire au minimum
le risque d'incindie ou d'explosion ou pour éviter tout
dommage matériel, toute blessure ou la mort.
- N e pas entreposer ni utilizer d'essence ni d'autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucan interrupteur. Ne pas vous servir
des téléphones se trouvant dans le bâtiment où vous
trouvez.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du fournis-
seur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindie.
- L 'installation et l'entretien doivent être assurés par un
installateur ou un service d'entretien qualifié ou par
le fournisseur de gaz.
™
Medina™ (MED)
Advertisement
Table of Contents
Related Manuals for Lennox Hearth Products Merit Series
Summary of Contents for Lennox Hearth Products Merit Series
- Page 1 INSTALLATION AND OPERATION MANUAL Direct-Vent Gas ™ Fireplace Inserts Installer: Leave This Manual With The Appliance. Consumer: Retain This Manual For Future Reference. P/N 775,221M Rev. C, 06/2009 A French manual is available upon request. Order P/N 775,221CF. Ce manuel d’installation est disponible en francais, simplement en faire la demande.
- Page 2 Failure to use manufacturer provided parts, variations IMPORTANT SAFETY AND WARNING in techniques and construction materials or practices INFORMATION other than those described in this manual may create a fire hazard and void the limited warranty. FOR YOUR SAFETY do not install or operate your Your Lennox Hearth Products gas insert must be Medina™ gas insert without first reading and under- equipped for the proper fuel type and altitude at which standing this manual. Any installation or operation of it will be operated. Any operation outside the param- the appliance deviating from that which is stated in this eters outlined in this manual may result in a hazardous manual WILL void the warranty and may be hazard- condition and will void the warranty. Please carefully ous.
-
Page 3: Table Of Contents
CONGRATULATIONS! Gas Line Installation ..........1 Gas Pressure Requirements ........1 When you purchased your new gas fireplace insert, you joined LP and Natural Gas Supplies .......1 the ranks of thousands of individuals whose answer to their home Air Shutter Adjustment ..........1-13 heating needs reflects their concern for aesthetics, efficiency and our environment. We extend our continued support to help Operating Instructions ..........13-16 you achieve the maximum benefit and enjoyment available from Pre-Lighting Checklist ........13 your new gas fireplace insert. Lighting Instructions .........13 Thank you for selecting a Lennox Hearth Products gas fireplace Flame Color and Behavior ........15 insert as the answer to your home heating needs. Paint Curing ...........15 Quiet Operation ..........15 Blower Operation ..........15 TABLE OF CONTENTS Optional Wall Thermostat ........15 Operating Options ..........16 Cautions and Safety ............ Millivolt Control System ........16 Orifice Size / Altitude Adjustment ........4 Maintenance and Servicing ........17-18 Fireplace Requirements ..........4 Maintenance Checklist ........17 Codes and Approvals ........... 5 Glass Maintenance ...........17 New York City, New York (MEA) ........ -
Page 4: Orifice Size/Altitude Adjustment
Fireplace Requirements ORIFICE SIZE/ALTITUDE ADJUSTMENT These heaters are designed to be installed into an existing masonry For altitudes above 2,000 feet (In Canada 4,500 FT/1370 M), the orifice fireplace (built to UBC 37 or ULC S628 standards) or factory built solid should be de-rated by 4% for every 1,000 feet to maintain the proper fuel, wood burning fireplace (listed to UL 127 or ULC S610) only. All ratio of gas to air. Improper orifice sizing may result in damage and exhaust gases must be vented outside the structure. Combustion air unsafe conditions. Changing the orifice should only be done by a quali- is drawn from outside the structure. When installing in a factory built fied service technician. Contact your Lennox Hearth Products dealer for fireplace, the fireplace grate must be removed and the damper must be proper orifice sizes. removed or secured open. If the factory-built fireplace has no gas access hole(s) provided, an access hole of 1-1/2 inches (38 mm) or less may be drilled through the lower SMOKE DETECTORS sides or bottom of the firebox in a proper workmanship like manner. This access hole must be plugged with a non-combustible insulation after the gas supply line has been installed. The installer must mechanically attach... -
Page 5: Codes And Approvals
CODES AND APPROVALS COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS (Massachusetts Approval #G3-0806-6) Certification These fireplaces are approved for installation in the US state of Mas- Gas appliances must be tested and certified by a nationally recognized sachusetts if the following additional requirements are met: testing and certification laboratory to ANSI (American National Standard Institute) gas appliance safety standards. • Install this appliance in accordance with Massachusetts Rules and Regulations 248 C.M.R. Sec. 5.08 2(a) through 2(e). This insert has been tested and certified by OMNI -Test Laboratories to ANSI Z21.88/CSA 2.33 Standard for Vented Gas Fireplace Heater and CGA • Installation and repair must be done by a plumber or gas fitter licensed 2.17-M91 and UL 307B Gas Burning Heating Appliances for Manufactured in the Commonwealth of Massachusetts. (Mobile) Homes in both USA and Canada. • The flexible gas line connector used shall not exceed 36 inches (92 centimeters) in length. It has met all necessary ANSI Standards and is fully certified for installa- tion in any community. If there are any questions or if you need further • The individual manual shut-off must be a T-handle type valve. substantiation either write to or call your Lennox Hearth Products dealer. If you have further questions, please contact Lennox Hearth Products. Massachusetts Horizontal Vent Requirements Check all local building and safety codes before installation. The instal- In the Commonwealth of Massachusetts, horizontal terminations installed lation instructions and appropriate code requirements must be followed less than seven (7) feet above the finished grade must comply with the exactly and without compromise. In the absence of local codes the fol- following additional requirements: lowing standards and codes must be followed. • A hard wired carbon monoxide detector with an alarm and battery back-up must be installed on the floor level where the gas fireplace is installed. The carbon monoxide detector must comply with NFPA 720, be ANSI/UL 2034 listed and be ISA certified. -
Page 6: Pre-Installation
Packaging List PRE-INSTALLATION To install a Medina insert, an insert body, face, surround (flange) kit are required. Features Insert Body Packaging List Installation Options 1 Insert Body with Burner Cassette Residential - Vented Vertical Only 1 Log Set Manufactured (Mobile) Home 1 Bag of Embers Natural Gas Or Propane (LP) 1 Fasteners: 6 slotted 1/4" truss screws Bedrooms 6 speed nuts Optional Wall-mounted Or Remote Thermostat 9 spring clips 3 plastic adhesive wire restraints Electrical 1 Installation and Operation Manual The blower motor requires 120 Volts AC for operation. The fireplace is not Decorative Face Kits - One Required dependent on the blower or an outside electrical supply to operate. (kit is shipped in boxes) Millivolt Valve • Black Traditional Face, Surround, 27" x 39", and Black Trim This insert is operated with a millivolt valve and therefore burns even • Arched Black Face, Surround, 27" x 39", during a power outage. and Black Trim Fuel Surround Components Include: 1 Top Surround This insert comes from the factory equipped to burn natural gas at a speci- 2 Side Surrounds fied elevation. The insert can be converted to burn LP (liquid propane) by... -
Page 7: Insert And Fireplace Dimensions
Insert Dimensions Minimum Fireplace Cavity 31-1/4”(794mm) Air Intake 16”(406mm) Flue 2-1/2” 7-1/4” (64mm) (184mm) 14-1/2” 15-3/4” (368mm) (400mm) 13” (330mm) Top View Figure 1 Figure 3 CAUTIONS 15-1/4” (387mm) • Trim panels or surrounds must not seal ventila- tion openings in the existing fireplace that the appliance is installed in. • The fireplace in which this gas insert is to be installed must be thoroughly cleaned if it has been used to burn wood or synthetic logs. Have 17-1/4” the chimney and all inside surfaces of the fire- (438mm) place brushed and vacuumed so that no soot, embers, or loose combustion deposits can be drawn into the heat circulation blower and blown 7-1/2” into the living area. (191mm) •... -
Page 8: Clearances To Combustibles
Minimum Clearances to Combustibles Facing and Mantel Clearances Minimum clearances include any projections such as shelves, window sills, mantels, spacers/standoffs or surfaces to combustible construction etc. above the appliance. Paint or lacquer used to finish the mantel 3"/76mm must be heat resistant in order to avoid discoloration. 3"/76mm The letters below, E through J, correspond to Figure 4 showing minimum 3"/76mm clearances required from the appliance to combustibles and the minimum Facing and 1-1/2” projection of the hearth extension. Mantel 38mm Side View E = 31-1/2" (800 mm) from Top Facing to Bottom of Insert F = 25-1/2” (648 mm) from Center of Glass to Side Facing or Side 39-1/2” 33-1/2” Wall 1003mm 851mm J = 39” (991 mm) from 10.5” (267 mm) Mantel to Bottom of Insert 31-1/2” 36-1/2” Hearth Protection 927mm 800mm G = Minimum Hearth Protection from Front of Insert* H = Vertical Distance from Insert Bottom to Combustible Material. 13”(330mm) 10”(254mm) 0”(0mm) -
Page 9: Installation
INSTALLATION The existing fireplace chimneys may take The standard cap in Ter- various contours which the flexible liners will mination Kit TKDVI, and in accommodate. However, keep the flexible liner Vent Kit DV3FK35 is a high Venting Installation as STRAIGHT as possible, avoid unnecessary wind cap bending. Your Lennox Hearth Products gas insert must be vented to the outside in accordance with the current edition of the National Fuel Gas Code Vertical Cap ANSI-Z223.1 (In Canada, the current CAN/CSA B149.1 installation code). The insert must not be connected to a chimney flue serving a separate solid fuel burning appliance. Termination This gas insert requires a 3” diameter listed flex liner. The vent should Connector terminate with a listed direct vent termination cap. The chimney should Liner Requirements:... -
Page 10: Zero Clearance Fireplace Installation
Zero Clearance Fireplace Installation This insert may be installed in a masonry or factory built/zero clearance (ZC) fireplace. When installing in a ZC fireplace, the ZC grate must be removed and the ZC damper must be removed or secured open. The ZC doors, screen, refractory or masonry lining, baffles and smoke shelf may be removed if necessary to install the gas insert. However, do not cut Screws or alter the fireplace components. The removal of any parts to facilitate installation must not alter the integrity of the inner or outer shells of the fireplace cabinet. Any parts removed must be replaceable if the insert is taken out of the fireplace or the fireplace must be clearly marked with the metal label that states: "This fireplace has been altered and is no longer safe to operate." The insert is designed to fit into a ZC fireplace with a minimum firebox height of 17-1/4" (438mm). To facilitate this the hood will need to be removed and discarded (Note: The screws should be replaced in the insert body). Installation of the flue collar is removable (see Flue Collar Connection). Figure 7 If the factory-built fireplace has no gas access hole(s) provided, an ac- cess hole of 1-1/2" (37.5 mm) or less may be drilled through the lower sides or bottom of the firebox in a proper workmanship like manner. This access hole must be plugged with a non-combustible insulation after the gas supply line has been installed. The installer must mechanically attach the marking supplied with the gas fireplace insert to the inside of the firebox of the fireplace into which the Rear Log gas fireplace insert is installed. Log Set Installation If logs are not installed according to the log installation instruc- tions, flame impingement and improper combustion could Retainer occur and result in soot and/or excessive production of carbon monoxide (CO), a colorless, odorless, toxic gas. -
Page 11: Surround Panels Installation
4. Fasten top surround panel with the remaining two truss screws. Install front logs Tighten all six truss screws after adjusting the surround panels to on retainer slots eliminate space between side and top surround panels. 5. Assemble the surround trim by inserting the elbowed retainer in the rectangular slot in the ends of the longest piece of trim and secure by tightening the screw in the retainer. Slide the mitred ends of the two side trim pieces onto the elbowed retainer and secure by tightening the retainer screw. 6. The fastened trim pieces should now be horseshoe shaped. Slide the trim down over the surround panels so the edge of the surround panel fits just behind the rounded edge of the trim. 7. Install three spring clips (found in parts bag in firebox) in each piece of trim by inserting them between the rear of the surround panel Front Logs and the channel of the trim. The spring clips will push the trim tight to the surround panel. Figure 10 Spring Handle Latches Top Log Door Mounting Plates Ports Figure 12 Place Top Log On Pin Face Installation Figure 11 The faces come with hooked brackets. To install the face, hang the hooked brackets on the surround brackets per instructions provided in decorative face kit (C in Figure 12). -
Page 12: Gas Line Installation
Gas Line Installation Fuel Inlet Pressure Manifold Pressure Type Desired Minimum Maximum On Hi On Lo After leveling, position the insert in the fireplace - holding it about six Fire Fire inches out from its final location. Natural 7" WC 5" WC 10.5" WC 3.5" WC 1.7" WC CAUTION: Specific hearth requirements apply (see Clearances to Combustibles). LP Gas 11" WC 10.5" WC 13" WC 10" WC 5.4” WC The Medina™ gas insert must be connected to the gas line in accordance with local codes and/or the National Fuel Gas Code, ANSI Z223.1 (In Canada, the current CAN/CSA B149.1 installation code). The insert comes with Robertshaw Millivolt Gas Valve an 8" nipple attached to the supply side of the gas valve. After connect- ing the gas line, all joints in the line and connections at the valve should be checked for leaks before final positioning of the unit. Conduct a gas leakage test of the appliance piping and control system downstream of the shutoff valve in the supply line to the appliance. TP/TH Inlet (Supply) The Manifold Gas Pressure Requirements Pressure Tap (Outlet) Tap... -
Page 13: Operating Instructions
FOR YOUR SAFETY READ BEFORE OPERATING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROP- ERTY DAMAGE, INJURY, OR LOSS OF LIFE. CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN, FURNITURE, GASOLINE AND OTHER LIQUIDS WITH FLAMMABLE VAPORS AWAY. NEVER OPERATE UNIT WITH GLASS OFF OR ATTEMPT TO REMOVE THE GLASS WHILE HOT. A. This appliance is equipped with a piezo ignition device to light See Detail Shutter Figure 14 Adjustment the pilot. When lighting the pilot, follow these instructions exactly. B. BEFORE LIGHTING, smell around the appliance area for gas. Be sure to smell next to the floor, because some gas is heavier than air and will settle on the floor. Moving shutter bracket WHAT TO DO IF YOU SMELL GAS: to the right will open shutter, to the left will close shutter. DO NOT try to light the appliance. DO NOT touch any electric switch, DO NOT use any phone in the building. Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions. If you cannot reach your gas supplier, call the fire... - Page 14 5. Locate the pilot by looking over the top of the left front log. A WARNINGS blue flame will be seen when the pilot is lit. 6. Turn the gas control knob counter-clockwise to the • Improper installation, adjustment, alteration, "PILOT" position. service or maintenance can cause injury or 7. Push the knob all the way in and hold in that position. Imme- property damage. For assistance or additional diately light the pilot by pressing the igniter button several information, consult a qualified installer, service times until pilot is lit. Continue to hold the knob in for about agency or your gas supplier. 30 seconds after the pilot is lit. Realease knob and it will pop • Operation of this appliance when not connected back out. Pilot should remain lit. If it goes out, repeat steps to a properly installed and maintained venting 4-8 holding knob in an additional 15 seconds after pilot is lit. system can result in carbon monoxide (CO) If knob does not pop out when released, stop and immediately poisoning and possible death.
-
Page 15: Flame Color And Behavior
Quiet Operation Flame Color and Behavior As the Medina™ gas insert is burning, a number of normal operational Your Medina™ gas insert is designed for maximum heating efficiency. sounds may be heard. The flow of gas through the gas valve and orifice Therefore, upon lighting of the main burner the flames will be semi- may make a rushing or whistling noise. If this noise is objectionable, transparent or “bluish.” After 10-20 minutes of operation the logs will it can be reduced by turning down the flame. Turning down the flame heat up and the flames will become a yellow/orange color. can reduce total heat output by more than 30%. When the blower turns on, the sound of rushing air may be heard. The blower sounds may be Adjusting the insert to cause the flames to turn orange sooner may result reduced by adjusting the speed control located on the blower assembly. in poor combustion, sooting and a hazardous situation. See the drawing Also, a slight clicking sound may be heard as the gas valve or blower to the right showing proper flame appearance. switch turn on and off. When testing for proper operation - If an optional thermostat is installed adjust it to its highest temperature setting. Visually determine that main Blower Operation burner gas is burning properly: i.e., no floating, lifting or flashback. Adjust the primary air shutter(s) as required. Check for proper main Your Medina gas insert comes equipped with a 150 CFM blower with a burner operation at both high and low flame. -
Page 16: Operating Options
Operating Options The thermostat, remote control and rocker switch will turn the burner on and off independently. Be sure to set the rocker switch to the “OFF” The rocker switch on your Medina™ gas insert is used to turn the burner position when using the thermostat or remote control and set the ther- on and off while the pilot is on. The rocker switch can be installed in the mostat or remote control to the lowest temperature when you wish to use the rocker switch only, otherwise one may override the other. If a hole in the right side of the top surround panel or in the hole in the panel remote thermostat is to be used with the insert, do not place the receiver to the left of the igniter button. The hole in the panel is covered by a label under the firebox. which must be carefully cut out before installing the rocker switch. The switch must be disconnected from the coil of wire to which it is attached, the plastic nut unscrewed from the back side of the switch and then the switch can be inserted into the hole at either location. If the switch is to Thermostat Wire be located in the surround, route the wire behind the igniter bracket and Wire Size Maximum Length through the hole in the lower right side of the insert. Attach the three plastic adhesive wire restraints (found in the bag in the firebox) to the 1 Gage 100 Feet side surround panel. Feed the wire through these restraints and up to the 14 Gage 64 Feet switch. Care should be taken to ensure the wire does not come in contact 16 Gage 40 Feet with the hot surfaces of the firebox. Reconnect the wires to the switch. 18 Gage 5 Feet A wall-mounted switch, a millivolt wall thermostat, or a remote control, can be used to supplement the rocker switch. The gas valve is powered 0 Gage 16 Feet by millivolts generated by the pilot assembly. This millivolt system is very sensitive to electrical resistance, therefore, make sure all connections are tight, clean and free from corrosion. Do not splice any millivolt wires. Millivolt Control System Consult the table on this Page to determine the proper gage of wire for the thermostat or wall switch connections. This table refers to the total... -
Page 17: Maintenance And Servicing
Millivolt and System Checks MAINTENANCE AND SERVICING Check Connect Thermostat Meter Read- Test Test Meter Connects Maintenance Checklist Leads to Should Be Terminals The following should only be performed by a qualified service Complete & 3 Closed 100 MV technician. System or More Thermopile 1 & Open Greater Than CAUTION: Label all wires prior to disconnection when servic- Output 35 MV ing controls. Wiring errors can cause improper and dangerous System & 3 Closed .5 Ohms operation. Verify proper operation after servicing. Resistance 1. Annual inspection should be made and the following checks per- Proper Pilot Flame Appearance formed: oWhen unit is cool, remove glass and inspect burner for dirt, soot and lint accumulations and remove if necessary. If excessive soot accumu- lation is present on burner, have a qualified service technician adjust the burner for proper combustion. -
Page 18: Door Removal
Glass Door Removal Fuel Conversion CAUTION: Do not slam or strike glass door or damage may Converting your Medina™ gas insert between natural gas and LP can occur. be accomplished by installing a conversion kit (valve regulator and burner orifice). Only a qualified service technician should perform the Do not remove the glass door while the insert is hot. To remove the glass conversion. door, pull forward and up on the top latches. Lift the glass door up and Conversion Kit: Please see instructions provided with conver- off the lower spring latch. Be careful not to damage or scratch the glass sion kit. while handling. To reinstall the glass, reverse the removal steps. Do not operate the insert with the glass removed. Blower Removal Unplug the power supply cord from the electrical outlet prior to remov- ing the blower. The blower can be accessed through the back wall of the firebox. CAUTION: Label all wires prior to disconnection when servic- (A) Spring Handle Latches ing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing (see the blower... -
Page 19: Troubleshooting
TROUBLESHOOTING NOTE: When troubleshooting the gas control system, be sure the external gas shut off valve, located at the gas supply inlet is in the “ON” position. IMPORTANT: Call your gas supplier or plumber for additional help with any gas control problem. Valve system troubleshooting should only be accomplished by a qualified service technician. SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Thin black coating (soot) Improper log or ember See Log Set Installation on Page 10. If there is soot in one specific location, the forms on the viewing placement rockwool below this location needs to be adjusted. This can be done by pulling embers glass, logs, or firebox forward slightly. If the flames have soot tails, the shutter will need to be opened. Improper air shutter setting If sooting continues open air shutter (see Air Shutter Adjustment on Pages 12 and 13). Not enough combus- Check for debris obstructing air flow in valve compartment under insert or in front of tion air lower venting. Humming or whistling Normal operating noise See Quiet Operation on Page 15. The noise may be reduced by slightly turning down the coming from insert. flame. Turning the flame down will reduce the heat output of the insert. Obstructed orifice If noise is excessive or is “whistling” have your gas supplier check the regulator and opening orifices and replace if necessary. A change in flame appear- A change in gas pres- Have your gas supplier check for correct gas pressure (7" W.C. / po. C.E. [1.74 kPa] natu- ance or burner operation. sure ral gas; 11" W.C. / po. C.E. [2.74 kPa] LP gas). NOTE: NEVER BLOCK OR OBSTRUCT AIR INTAKE OR OUTLET VENTS. Improper ember place- See Log Set Installation on Page 10. - Page 20 REPLACEMENT PARTS - Medina™ (MED) ACCESSORIES Contact an Authorized Lennox Hearth Products dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards. Remote Wall Controls Control Thermostat Part Number Description H6033 Cassette Assembly, NG Cat. No. Model Description (if LP, also requires H5464 conversion kit) H6010 Main Burner Assembly 70005 RT-AC Remote Thermostat AC H5922 Pilot Assembly, Convertible NG or LP (ref. form #775280M) H5938 Gas Control Valve, NG H051 RCL-STAT Remote Control, RCL-STAT, Deluxe (if LP, also requires H5941 regulator kit) Thermostat DC (ref. form #750129M) H5939 Regulator, NG H4635 DWTK Wall Thermostat, Digital...
- Page 21 Face / Surround Panel Kits (ref. form #775256M) Inset Kits (Required) - Includes Black Face, Surround and Black Trim (Arched Faces Only) (ref. form #775256M) Cat. No. Model Description Arched Black Face, Surround, H7017 MED-ARCHFP-B 7" x 39" and Black Trim Pacific™ Aspen™ Traditional Black Face, Surround, 7563 MED-TRADFP739-B 7" x 39" and Black Trim Napa™ Tuscan™ Cat. No. Model Description 75306 AI30-ASPEN-BLK ASPEN Black 75308 AI30-ASPEN-GOLD ASPEN Gold 75307 AI30-ASPEN-BRNKL ASPEN Brushed Nickel 75309 AI30-ASPEN-BKNKL ASPEN Black Nickel 75330 AI30-NAPA-BLK NAPA Black...
- Page 22 TESTÉ SELON LA NORME ANSI Z21.88-2005/CSA 2.33-2005 «FOYER RADIANT AU GAZ», UL307B, CSA P.4.1-02, ET CGA 2.17-M91. MANUFACTURED BY / FABRIQUÉ PAR: CET APPAREIL DOIT ÊTRE INSTALLÉ CONFORMÉMENT AUX EXIGENCES DES CODES RÉGIONAUX ET DU CODE D’INSTALLATION LENNOX HEARTH PRODUCTS ANSI NFPA 54-DERNIÈRE ÉDITION (ETATS-UNIS), OU CAN/CGA-B149.1-DERNIÈRE ÉDITION (CANADA). CET APPAREIL DOIT ÊTRE PO BOX 987 Report No.
-
Page 23: To Turn Off Gas To Appliance
LIGHTING LABEL FOR YOUR SAFETY READ BEFORE OPERATING POUR VOTRE SÉCURITÉ, LIRE AVANT L’ALLUMAGE WARNING: AVERTISSEMENT: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING SI VOUS NE RESPECTEZ PAS RIGOUREUSEMENT LES INSTRUCTIONS CI-DESSOUS, VOUS POURRIEZ ENCOURIR UN RISQUE D’INCENDIE ET/OU PROPERTY DAMAGE, INJURY OR LOSS OF LIFE. -
Page 24: Replacement Parts
WARRANTY Normally, all parts should be ordered through your Lennox Hearth Products distributor or dealer. Parts will be shipped at prevailing prices at time of order. Your gas insert is covered by a limited warranty (provided with appliance). Please read the warranty to be familiar with its coverage. When ordering repair parts, always give the following information: Retain this manual. File it with your other documents for future refer- 1. The model number of the appliance. ence. . The serial number of the appliance. PRODUCT REFERENCE INFORMATION 3. The part number. 4. The description of the part. 5. The quantity required. We recommend that you record the following important information 6. The installation date of the appliance. about your appliance. Please contact your Lennox Hearth Products dealer for any questions or concerns. For the number of your nearest Lennox If you encounter any problems or have any questions concerning the Hearth Products dealer, please call 1-800-9-LENNOX. installation or application of this system, please contact your dealer. REPLACEMENT PARTS LENNOX HEARTH PRODUCTS 1110 West Taft Avenue See Page 20 for a complete replacement parts list. Use only parts sup-...
