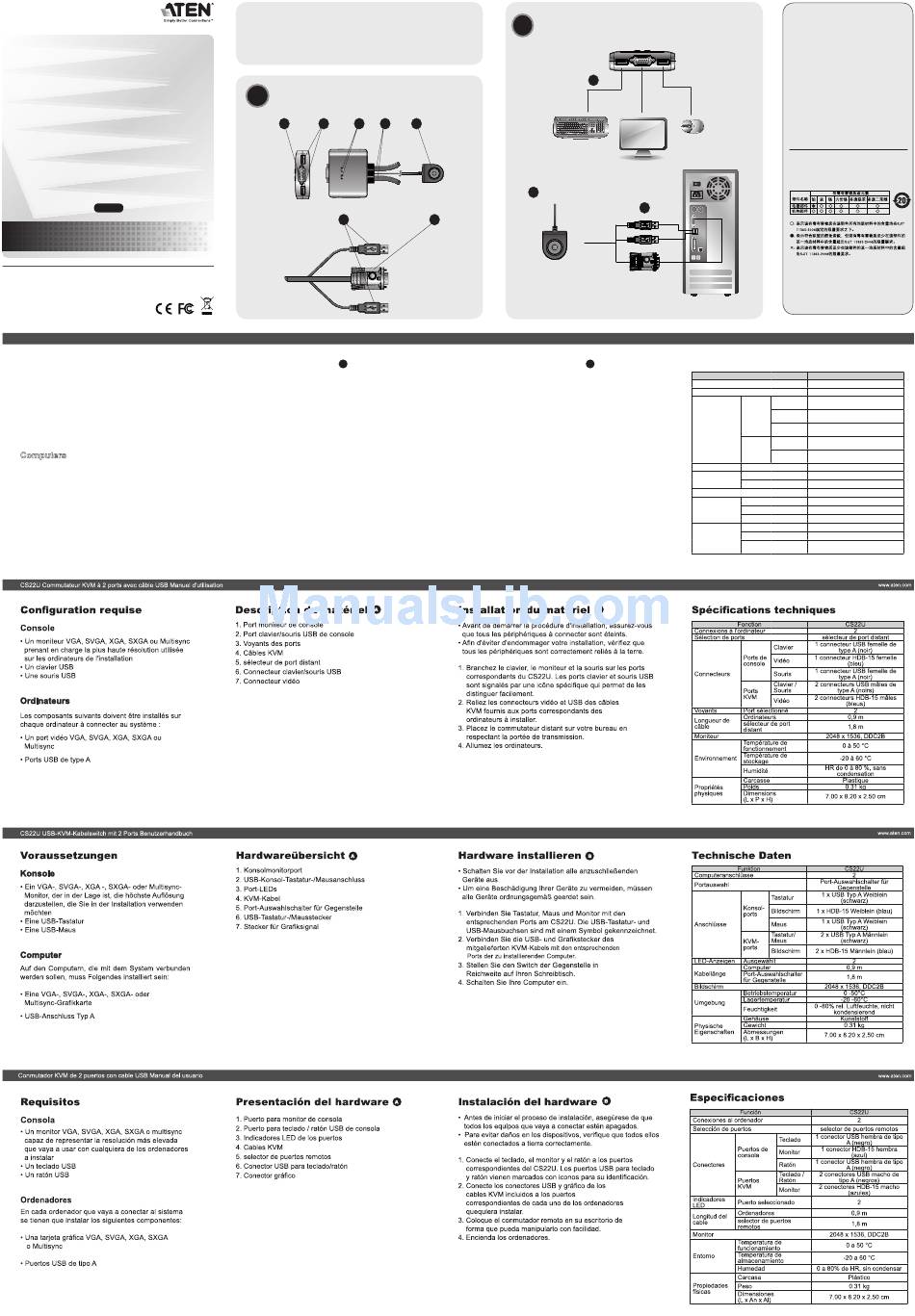

ATEN CS22U User Manual

2-Port USB Cable KVM Switch 2-Port USB Cable KVM Switch
CS22U CS22U
User Guide User Guide
© Copyright 2010 ATEN ® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other
trademarks are the property of their respective owners.
This product is RoHS compliant.
Part No.PAPE-1285-U03G Printing Date: 07/2010
CS22U 2-Port USB Cable KVM Switch User Guide
Requirements
Console
• A VGA, SVGA, XGA, SXGA, or multisync monitor
capable of the highest resolution you will using in
the installation
• A USB Keyboard
• A USB Mouse
Computers
The following must be installed on each computer
that is connected to the system:
• A VGA, SVGA, XGA, SXGA, or Multisync
video port
• USB Type A ports
Package Contents
• 1 CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
User Guide
• 1
A

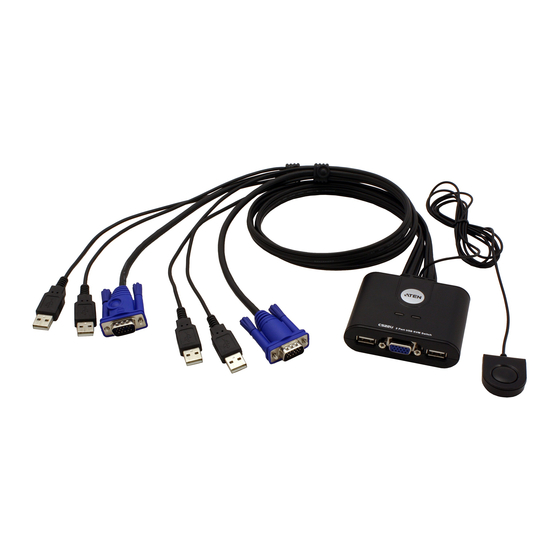

Hardware Review
1 2 3 4
6
Hardware Review
A
1. Console Monitor Port
2. Console USB Keyboard / Mouse Port
3. Port LEDs
4. KVM Cables
5. Remote Port Selector
6. USB Keyboard and Mouse Connectors
7. Video Connector
B

Hardware Installation

5
3
7
Hardware Installation
• Before beginning the installation procedure, ensure that all
equipment to be connected is powered off.
• To prevent damage to your installation, make sure that all
devices are properly grounded.
1. Plug your keyboard. Monitor, and mouse into their ports on
the CS22U. The USB keyboard and USB mouse ports are
labeled with an icon to distinguish them.
2. Plug the USB and video connectors of the attached KVM
cables into their respective ports on the computers you are
installing.
3. Position the Remote Switch within reach on your
desktop.
4. Turn on the power to the computers.
1
2
Specifications
B
Function
Computer Connections
Port Selection
Console
Ports
Connectors
KVM
Ports
LEDs Selected
Computers
Cable Length
Remote Port Selector
Video
Operating Temp.
Environment Storage Temp.
Humidity
Housing
Physical Weight
Properties
Dimensions
(L x W x H)
Online Registration
International:
http://support.aten.com
North America:
http://www.aten-usa.com/product_registration
Technical Phone Support
International:
886-2-86926959
North America:
1-888-999-ATEN Ext: 4988
United Kingdom:
44-8-4481-58923
The following contains information that relates to China:
www.aten.com
CS22U
2
Remote Port Selector
Keyboard 1 x USB Type A Female (Black)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (Black)
Keyboard /
2 x USB Type A Male (Black)
Mouse
Video 2 x HDB-15 Male (Blue)
2
0.9 m
1.8 m
2048 x 1536, DDC2B
0–50°C
-20–60°C
0–80% RH, Non-condensing
Plastic
0.31 kg
7.00 x 8.20 x 2.50 cm
