INSTALLATION
& OPERATION
MANUAL
79SCBZ
Read all instruction and warnings before installing and using.
IMPORTANT:
INSTALLER:
This manual must be delivered to the end user of this equipment.
1

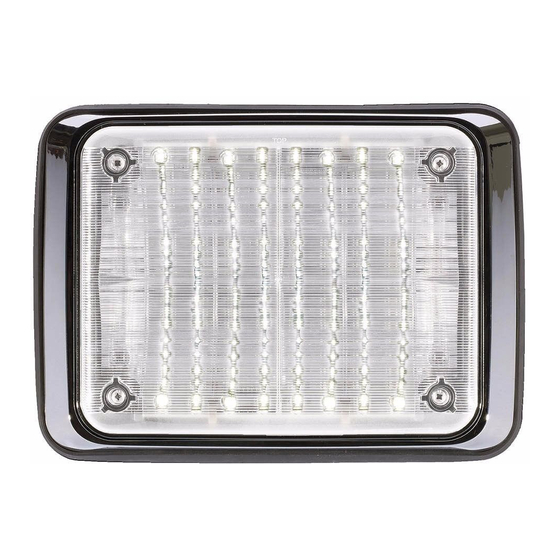

7 x 9 Scene Light
Contents:
General Description....................................................2
Installation & Mounting.................................................2
Electrical Connections..................................................3
Maintenance...............................................................3
Warranty.....................................................................4
79SCBZ
Advertisement
Table of Contents
Related Manuals for Code 3 79SCBZ
Summary of Contents for Code 3 79SCBZ
- Page 1 INSTALLATION & OPERATION MANUAL 79SCBZ 79SCBZ 7 x 9 Scene Light Contents: General Description............2 Installation & Mounting..........2 Electrical Connections..........3 Maintenance...............3 Warranty..............4 Read all instruction and warnings before installing and using. IMPORTANT: INSTALLER: This manual must be delivered to the end user of this equipment.
-
Page 2: General Description
ESSENTIAL TO INSURE THE SAFETY OF EMERGENCY PERSONNEL AND THE PUBLIC. GENERAL DESCRIPTION The 79SCBZ is a self-contained, high intensity LED light designed for mounting to the exterior of a vehicle. This product is designed for operation on 12VDC. After unpacking the light, inspect it for damage that may have occurred in transit. The unit can be checked electrically by following the instructions in the Electrical Connections section of this manual. - Page 3 ELECTRICAL CONNECTIONS The Scene Light is designed to operate on 12VDC. Two 12-inch long lead wires are supplied for making electrical connections to the Scene Light. Using 18-gauge (minimum) wire, connect the red (+) lead to the positive power source terminal and the black (–) lead to the negative power source terminal.
- Page 4 *Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair; nor for the packaging, handling, and shipping: nor for the handling of products returned to sender after the service has been rendered.
