ASSEMBLY INSTRUCTIONS (CONT.)
• SAVE ALL INSTRuCTIONS
4. Locate axle and slide axle through holes in frame.
Secure one wheel to each end of axle with supplied M8
nuts. Ensure that small plastic washer is placed
between frame and wheel. Tighten nuts with provided
wrench.
5. Remove M6 bolts from upper handle and attach panel
to upper handle with M6 bolts. Tighten with Allen
wrench provided.
6. Remove screws from lower frame assembly and
attach wand holder to frame assembly with these
supplied screws.
7. Roll unit off of carton and discard carton.

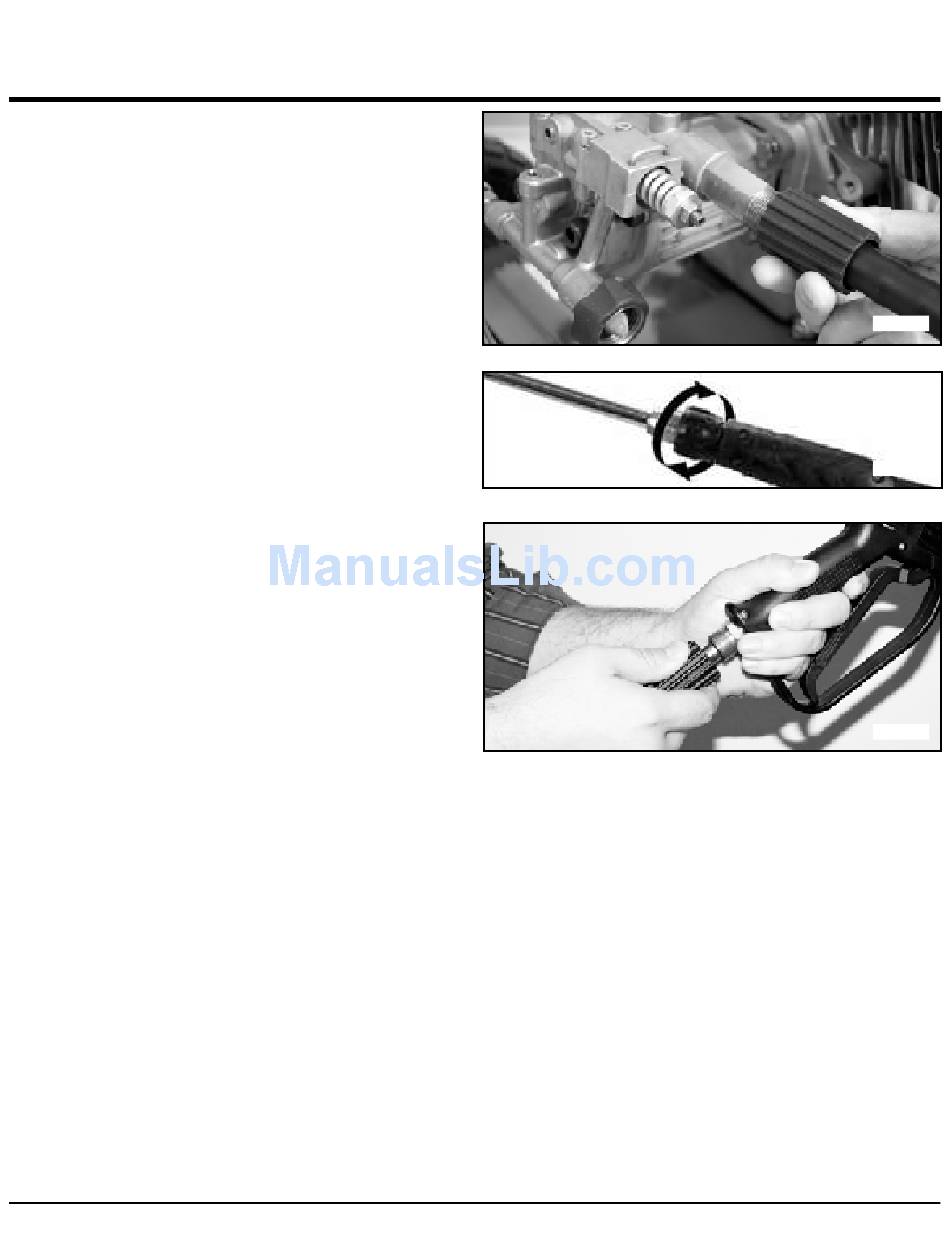

8. Connect high-pressure hose to pump inlet and tighten
securely. (Fig. 4)
9. Connect wand to gun and tighten securely. (Fig. 5)
10. Attach high-pressure hose to gun. Tighten securely.
(Fig. 6)
E106534 7 - ENG Copyright © 2013 MAT Industries, LLC
FIG. 4
FIG. 5
FIG. 6
