Excell EPW2123100 Operation Manual
  1. Manuals
  2. Brands
  3. Excell Manuals
  4. Pressure Washer
  5. EPW2123100
  6. Operation manual

Excell EPW2123100 Operation Manual

Hide thumbs

Advertisement

Quick Links

x
Download this manual
10
Engine and Pump Features
11
Start-Up Procedure
11
Chemical Injection
13
Maintenance
16
Troubleshooting Guide
Table of Contents
Record All Information and attach sales
receipt here for future reference:
Purchase Date:__________________________
Serial #: ________________________________
Questions? 1-888-895-4549
Refer to the website for electronic
manual and parts book.
www.powermate.com

TABLE OF CONTENTS

Safety Guidelines/Definitions ........................... 2
Consumer Safety Information .......................... 2
Important Safety Instructions .......................... 2
Safety Features ............................................... 6
Specifications .................................................. 6
Assembly instructions ..................................... 7
Spray Nozzle Selection .................................... 9
Before Operation ............................................. 9
Engine and Pump Features ........................... 10
Operating Connections.................................. 10
Operating Instructions ................................... 11
IMPORTANT: Please make certain that the person who is to use this equipment carefully reads
and understands these instructions before operating.
10/31/2016
PRESSURE WASHER
OPERATION MANUAL
Start-Up Procedure ....................................... 11
Chemical Injection ......................................... 11
Cleaning Techniques ..................................... 12
End of Cleaning Operation ............................ 12
Maintenance .................................................. 13
Storage .......................................................... 14
Warranty ........................................................ 15
Troubleshooting Guide .................................. 16
Français ......................................................... 17
Español .......................................................... 33
PRINTED IN CHINA
for model EPW2123100
Part No. E110166// Rev. 0

Advertisement

loading

  Related Manuals for Excell EPW2123100

  Summary of Contents for Excell EPW2123100

  • Page 1: Table Of Contents

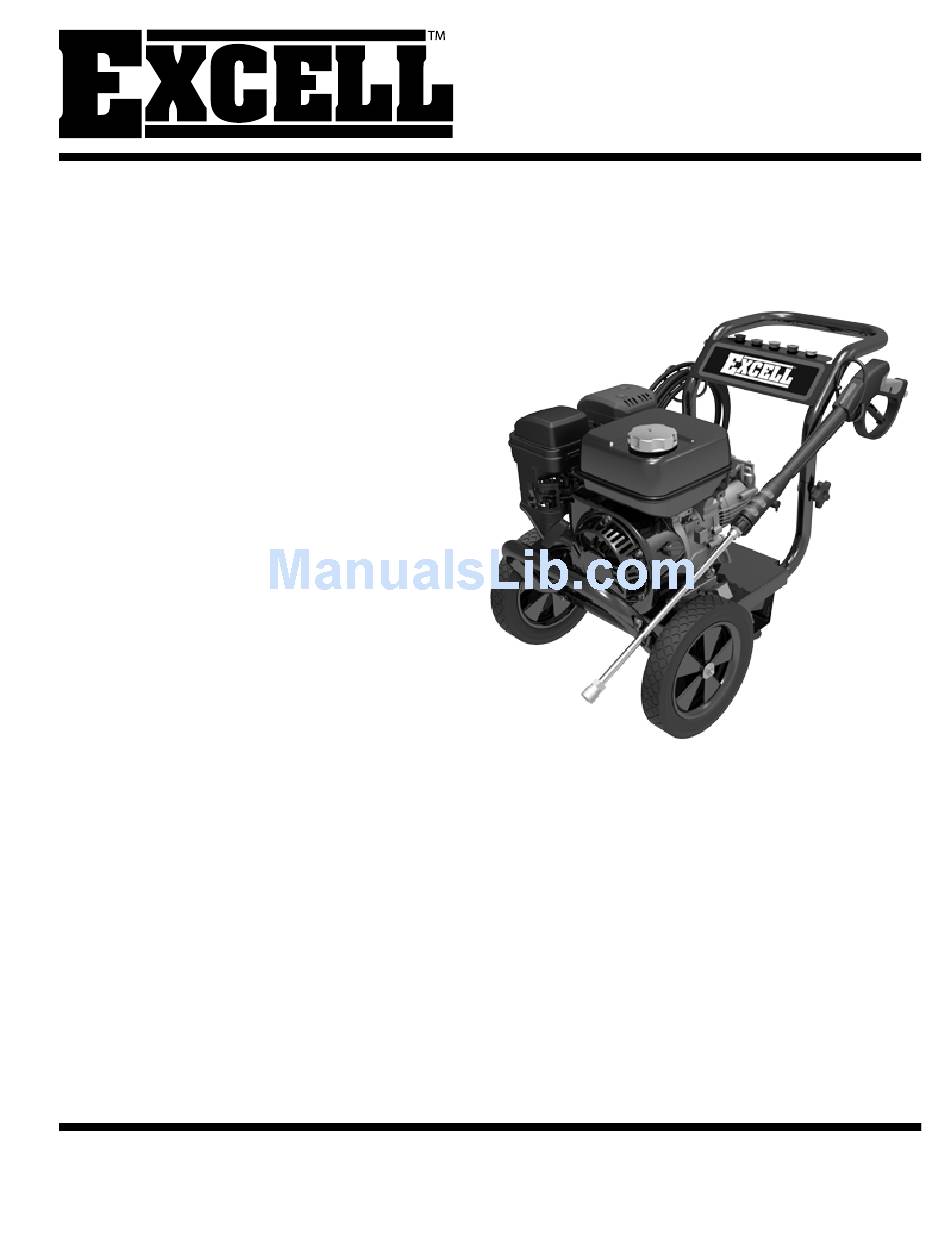

    PRESSURE WASHER OPERATION MANUAL for model EPW2123100 Record All Information and attach sales receipt here for future reference: Purchase Date:__________________________ Serial #: ________________________________ Questions? 1-888-895-4549 Refer to the website for electronic manual and parts book. www.powermate.com TABLE OF CONTENTS Safety Guidelines/Definitions ......2 Start-Up Procedure ........

  • Page 2: Safety Guidelines/Definitions

    SAFETY GUIDELINES - DEFINITIONS • SAVE ALL INSTRUCTIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these symbols. DANGE R CAUTIO N Indicates an imminently hazardous situation which, if not...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS (CONT.) • SAVE ALL INSTRUCTIONS RISK OF EXPLOSION FOR FIRE (CONT.) DA NG ER WHAT CAN HAPPEN HOW TO PREVENT IT • Materials placed against or near the pressure washer • Never operate pressure washer in an area containing dry can interfere with its proper ventilation features causing brush or weeds.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS (CONT.) • SAVE ALL INSTRUCTIONS RISK OF INJURY FROM SPRAY DANGE R WHAT CAN HAPPEN HOW TO PREVENT IT • High-velocity fluid spray can cause objects to break, • Always wear ANSI-approved z87.1 safety glasses. propelling particles at high speed. Wear protective clothing to protect against accidental •...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS (CONT.) • SAVE ALL INSTRUCTIONS RISK OF HOT SURFACES WA RNING WHAT CAN HAPPEN HOW TO PREVENT IT • During operation, touch only the control surfaces of the • Contact with hot surfaces, such as engine's exhaust pressure washer.

  • Page 6: Safety Features

    SAFETY FEATURES • SAVE ALL INSTRUCTIONS THERMAL RELIEF VALVE LOW-OIL SHUTDOWN A thermal relief valve is provided to protect the The unit is equipped with a low oil sensor. If the pump from overheating if the spray gun is engine oil level becomes lower than required, closed for an extended length of time or the the pressure washer will automatically shut off.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS • SAVE ALL INSTRUCTIONS 1. Place the unit on its back and insert wheel axle into front tube. Use (1) M6 washer and (1) M6 x 15mm long hex head screw to assemble wheel axle to frame using the supplied open-end wrench.
  • Page 8 ASSEMBLY INSTRUCTIONS (continued) • SAVE ALL INSTRUCTIONS 4. Remove the handle and rotate 180 degrees and re-insert into the frame. Re-assemble both knobs and screws. 5. Assemble the lower gun hook using (1) M6 x 45mm long socket head cap screw, (1) M6 nut, and the supplied hex wrench and open- end wrench.

  • Page 9: Spray Nozzle Selection

    BEFORE OPERATION • SAVE ALL INSTRUCTIONS NOTE: The engine and pump on your FUEL EXCELL™ Pressure Washer will often have Fill the tank with clean, fresh unleaded improved performance after a break-in automotive gasoline. (See Figure 1). Regular period of several hours.

  • Page 10: Engine And Pump Features

    ENGINE AND PUMP FEATURES - FIGURE 1 • SAVE ALL INSTRUCTIONS OUTLET SIPHON CONNECTION INJECTOR FUEL FILL INLET AIR FILTER CONNECTION THERMAL RELIEF VALVE THROTTLE LEVER FUEL FILTER OIL FILL CHOKE LEVER OIL DRAIN FUEL ON/OFF RECOIL ENGINE STARTER ON/OFF SWITCH OPERATING CONNECTIONS •...

  • Page 11: Operating Instructions

    OPERATING INSTRUCTIONS • SAVE ALL INSTRUCTIONS START-UP PROCEDURE STARTING THE ENGINE 1. Ensure water supply is connected and (See Figure 1, page 10) turned on. 1. Check oil and fuel level. 2. Release gun safety lock. 2. Adjust choke as necessary. 3.

  • Page 12: Cleaning Techniques

    CLEANING TECHNIQUES • SAVE ALL INSTRUCTIONS When cleaning with the pressure washer, 2. Allow chemical to remain on the surface many cleaning tasks can be solved with water for a short time before rinsing. alone, but for most tasks it is advantageous to 3.

  • Page 13: Maintenance

    MAINTENANCE • SAVE ALL INSTRUCTIONS CONNECTIONS WATER SCREEN Connections on pressure washer hoses, gun The pressure washer is equipped with a water and spray wand should be cleaned regularly inlet screen to protect the pump. If the screen and lubricated with silicon grease to prevent is not kept clean, it will restrict the flow of leakage and damage to the o-rings.

  • Page 14: Storage

    STORAGE • SAVE ALL INSTRUCTIONS PUMP STORAGE ENGINE STORAGE If you must store your pressure washer in a When the pressure washer is not being location where the temperature is below 32°F, operated or is being stored more than one you can minimize the chance of damage to month, follow these instructions: your machine by utilizing the following...

  • Page 15: Warranty

    LIMITED WARRANTY • SAVE ALL INSTRUCTIONS Always specify model number when contacting the manufacturer. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied. MAT Industries, LLC warrants this pressure washer and any parts thereof, to be free from defects in material and workmanship for two (2) years (90 days for commercial use or for reconditioned unit) from the date of first purchase from an authorized dealer, provided that the product has been properly maintained and operated in accordance...

  • Page 16: Troubleshooting Guide

    TROUBLESHOOTING GUIDE • SAVE ALL INSTRUCTIONS Problem Cause Correction Engine will not start or 1. Low-oil shutdown. 1. Fill engine with oil. stops while operating 2. Engine switch not in the “ON” position. 2. Turn switch “ON”. 3. Pressure build up in hose. 3.
