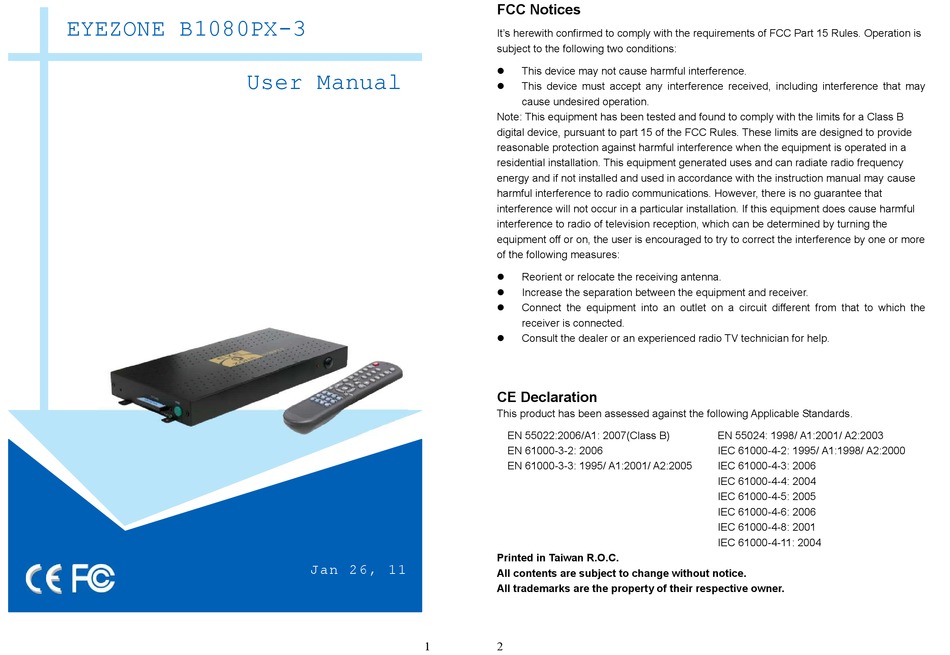

EYEZONE B1080PX-3
User Manual
Jan 26, 11
FCC Notices
It's herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
residential installation. This equipment generated uses and can radiate radio frequency
energy and if not installed and used in accordance with the instruction manual may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio of television reception, which can be determined by turning the
equipment off or on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio TV technician for help.
CE Declaration
This product has been assessed against the following Applicable Standards.
EN 55022:2006/A1: 2007(Class B)
EN 61000-3-2: 2006
EN 61000-3-3: 1995/ A1:2001/ A2:2005
Printed in Taiwan R.O.C.
All contents are subject to change without notice.
All trademarks are the property of their respective owner.
1
2
EN 55024: 1998/ A1:2001/ A2:2003
IEC 61000-4-2: 1995/ A1:1998/ A2:2000
IEC 61000-4-3: 2006
IEC 61000-4-4: 2004
IEC 61000-4-5: 2005
IEC 61000-4-6: 2006
IEC 61000-4-8: 2001
IEC 61000-4-11: 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B1080PX-3 and is the answer not in the manual?

Questions and answers

Related Manuals for EYEZONE B1080PX-3

Summary of Contents for EYEZONE B1080PX-3

  • Page 1 FCC Notices EYEZONE B1080PX-3 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. User Manual  This device must accept any interference received, including interference that may ...

  • Page 2: Table Of Contents

    10. Schedule Function……………..…..……..……….………….. 35 10.1 Install the Schedule Software…….……..……………….. 35 The B1080PX-3 is an ideal for advertising, retail displays, digital poster, museum exhibits 10.2 Start the Schedule Software…..……………...………….. 36 and other applications. 10.3 Apply the Schedule on the B1080PX……………..…….. 40 11.

  • Page 3: Features

    3. FEATURES 4. HARDWARE OVERVIEW  Supports 3D contents playback for 3D TV or projector.  The source of HD WMV9 MP@HL (Main Profile / High Level) supports resolution up to 1920x1080 (1080P) and the maximum bit rate is 40Mbps. ...

  • Page 4: Remote Control

    5. REMOTE CONTROL 6. START THE B1080PX Turn On  Power on/ off  Insert the CF memory card that has Picture, Music, Movie or WMV9 files. Select the output mode  Connect the provided power adapter and turn on the power switch, then the B1080PX will Numeric Key power on automatically.

  • Page 5: Setting Up

    Assign IP Address: If the B1080PX is connected to a network without a DHCP server or you  7. SETTING UP want to use Local FTP Server function, please manually enter the fixed IP address, Mask, Gateway and DNS for the B1080PX. In the main menu, using the “▼”...
  • Page 6 7.1.2 Setting the Network from the IP Detect Tool Step3: Double click on the icon to start the tool. Step4: Click on the “Auto Detect” button, then the tool will show all available B1080PX in the local area With the bundle tool “IP Detect”, user could search B1080PX on the local area network (LAN). You network.

  • Page 7: Ftp Setup

    7.2 FTP SETUP Step6: The default IP mode of B1080PX is DHCP. If you want to assign a static IP address to B1080PX, you should change the mode to “Manual”. Then enter the preferred “IP”, “Net Mask” and “Gateway” in the “Network Setting”.

  • Page 8: Video Setup

    Local Time: Set the system time manually. NOTE: GMT and applied regions ② NOTE: If the B1080PX is already connected to the network, and the NTP Server Time Zone Region Time Zone Region and Local Time have been set, the NTP Server will be the first priority. (GMT-12:00) Eniwetok, Quazalen (GMT+02:00)

  • Page 9: Other Setup

    7.4 OTHER SETUP (continued) 7.4 OTHER SETUP Export Setting File: Press the Enter button to export the configuration value to the memory  card. Step1: Copy the file “HDPlayerSetting.txt” on memory card to your PC. Use the “Wordpad” to open the file, and you can see all the configuration value of B1080PX.

  • Page 10: Scrolling Text Setup

    7.5 Scrolling Text Setup 8. USING THE B1080PX 8.1 PLAY MEDIA FILES ON THE MEMORY CARD Step 1: Insert the memory card with media files, then turn on the B1080PX and press the “ENTER” button on the remote control when “’mnt/CF” is highlighted to take you into the memory card. Multiple Display: ...

  • Page 11: 3D Videos Playback

    8.1.1 Using the Remote Control When Media File Is Playing PAUSE/STEP: Pause the playback or play frame by frame.   SETUP: Press the button to adjust the brightness, contrast or saturation while the video or picture ZOOM: Zoom in/ out on the movie or picture. ...
  • Page 12 8.3 MULTI-ZONE DISPLAY FUNCTION 8.3.2 Advance Mode (create your own custom layout via XML) 8.3.1 Simple Mode (include one video, one image and scrolling text) This section provides the playlist that created the provided demo file, so you can see how the playlist controls the provided demo file.
  • Page 13 Zone 1 (Video Zone) Zone 4, 5 & 6 (Image Zones)   <VideoFormat x="40" y="122" height="387" width="588" /> <bitmap name="Banner1-1" file="Banner1-1.bmp" x="679" y="117" /> <bitmap name="Banner2-1" file="Banner2-1.bmp" x="39" y="560" /> x="40" y="122": Sets the location of the video zone on the screen. height="387"...

  • Page 14: Rs-232 Function

    8.4 RS-232 FUNCTION (RS-232 cable is optional) 8.5 LOG FUNCTION Step1. Please turn on the Log Function first. (Refer to 7.4 Other Setup) Step1: Using the RS-232 cable (optional) to connect the B1080PX to your PC. Step2 .The new log files are automatically generated every day (the log files will be stored in the “syslog”...

  • Page 15: Http Command Function

    9.1 STATUS 9. HTTP COMMAND FUNCTION Confirm that the B1080PX is already connected to the network. (Refer to 7.1)  Confirm the “Local HTTP Server” function has been enabled, and the “Local HTTP Server  Setup” set has been completed (refer to 7.2). Set your router or firewall, and open a port 80 for the B1080PX.

  • Page 16: Control

    9.2 CONTROL 9.3 NETWORK Control: Select one of the control command s, and press the “Send” to control the B1080PX  immediately. Network  Stop: Stop playback Enable: Enable or disable the network function. Play: Start playback. Interface: Select your network connection Ethernet (wired) or Wireless. Pause: Pause the playback.

  • Page 17: Server

    9.4 SERVER 9.5 VIDEO Download from FTP Server  Enable: Enable or disable the FTP auto download function. Port: The default port for FTP is 21. In most cases you should not change this number. If TV Standard: Set TV to NTSC system or PAL system ...
  • Page 18 9.6 MISC 1 9.7 MISC 2 Play OSD Display: Turn On/Off message on display Multiple Display: Select Multiple Display zone style   SlideShow Interval: Select Picture Interval time Picture Slide: Select png files in Multiple Display zone slide by time or by movie change ...

  • Page 19: Time

    9.8 TIME 9.9 FEATURES Web Interface NTP Server   Enable: Enable or disable the HTTP command function. Enable: Enable or disable the NTP server function. Port: Enter the port of the B1080PX (default port: 80) GMT Server: Enter the NTP server IP address like: 66.187.233.4. User ID: Enter the user name of the B1080PX (default ID: root).

  • Page 20: Install The Schedule Software

    10.2 START THE SCHEDULE SOFTWARE You might double click the “Schedule Maker” icon on your desktop for opening the “Schedule  10. SCHEDULE FUNCTION Generator”. Or you might click on <Start> → <Programs> → <Schedule Maker 20090217> → < Schedule Maker > for starting the program. There are two parts of program: “Basic Schedule”...
  • Page 21  Modify: Click this button to modify the file in the list. SAVE: Press the “SAVE” button and a pop-up window will appear. Select the path, then click the   Select the file that you want to modify in the list, and press the “Modify” button. “SAVE”...

  • Page 22: Apply The Schedule On The B1080Px

    10.2.3 Explanation of the Warning Message Step 2: Click the “Add” button in the “File Setup” section to open the “Schedule File Editor” window. No any schedule!！Can’t Save!  Click the “Browser” button to select a file that you want to play. You can also set up the “Play Times” of There is no schedule file in the “Basic Schedule”...

  • Page 23: Optional Auxiliary Equipment

    11.2 PLAY-BUTTON BOX 11. OPTIONAL AUXILIARY EQUIPMENT Using the play-buttons to control the video playback (press one of the play buttons (up to 12  play-buttons) to play the corresponding file). 11.1 LED BUTTON BOX Dimension (L/ W/ H): 116x81x22mm. ...

  • Page 24: Touch-Sensor Buttons

    11.3 TOUCH-SENSOR BUTTONS 11.3.4 Play the Demo Files Step1. Insert the memory card to the B1080PX, and the B1080PX will play the default file automatically 11.3.1 Features of the Touch-Sensor Buttons while powered on. The number of touch-sensor buttons can be customized to 12, 24 or 36 for OEM project. ...

  • Page 25: Usb Auto-Copy Function

    Using the PIR Sensor  12. TROUBLESHOOTING Step1. Set the repeat mode to the “Repeat Default” option. Situation Check Point Check power cable and power switches. Ensure the video cables are connected between the player and the B1080PX. Press the “TV MODE” button on the remote control to select the No picture correct output mode.
  • Page 26 Situation Check Point Use the special type of RS232 cable to connect the B1080PX to PC’s serial port. Note the direction: There is a identifying mark close to Pin 1 Read the system information via RS232 Use the terminal program (such as Tera Term) to read the system information of B1080PX (baud rate: 19200).
