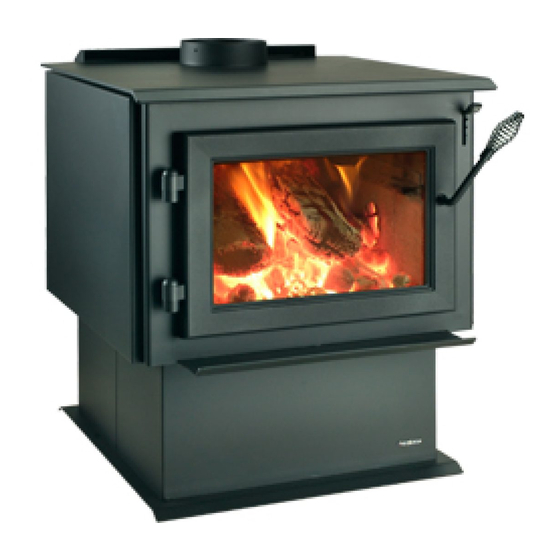

Ws18 wood burning stove
Hide thumbs Also See for EcoChoice ECO-ADV-WS18:
Table of Contents

Advertisement

Model:
ECO-ADV-WS18
Wood Burning Stove
Important operating
and maintenance in-
structions included.
If the information in these instruc-
tions is not followed exactly, a fi re
may result causing property dam-
age, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfi re and generate
poisonous gases (i.e. carbon monoxide).
www.heatilator.com
Consumer Care 1-877-427-3316 - Prior to calling, please have the model and serial number of the unit you are calling
about. This information can be found at the front of the unit.
DO NOT DISCARD THIS MANUAL
• Read, understand and
follow these instructions
for safe installation and
operation.
WARNING
Heatilator • ECO-ADV-WS18 • 7056-138C • September 15, 2011
WS18
NOTICE
• Leave this manual with
party responsible for
use and operation.
Hot glass will cause burns.
Do not touch glass until it is cooled
NEVER allow children to touch glass
Keep children away
CAREFULLY SUPERVISE children in same room as
fi replace.
Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
fl ammable materials.
Keep clothing, furniture, draperies and other fl ammable
materials away.
Installation and service of this appliance should
be performed by qualifi ed personnel. Hearth &
Home Technologies recommends NFI certifi ed
professionals, or technicians supervised by an
NFI certifi ed professional.
Owner's Manual
Installation and Operation
WARNING
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
1

Advertisement
