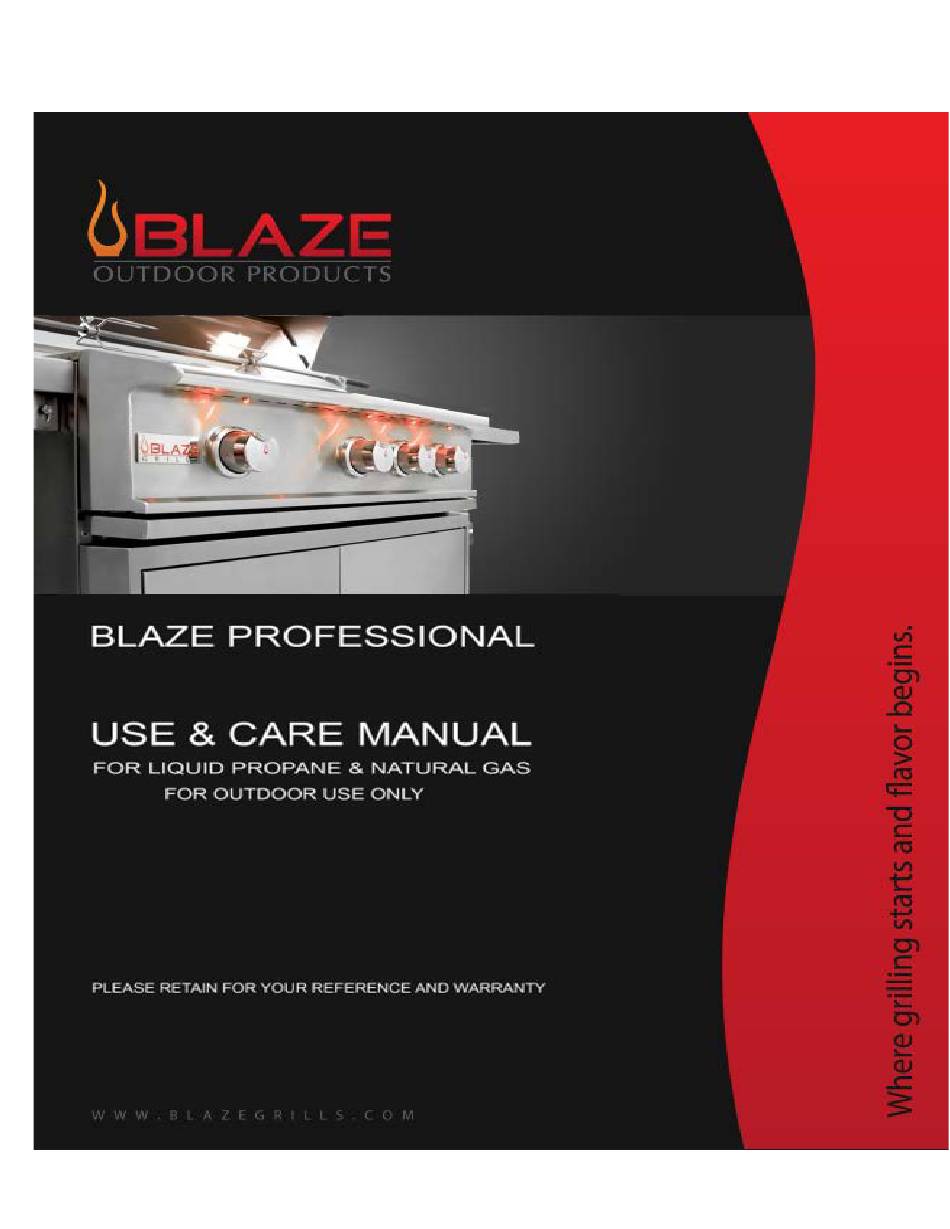

- Page 1 Blaze Outdoor Products Instructional Book Page | 1...
- Page 2 INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER. CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING OR OPERATING. - CONTACT INFORMATION - Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA 70805 USA Phone: 866-976-9510 CustomerService@BlazeGrills.com BLAZEGRILLS.COM...
-
Page 3: Table Of Contents
23-24 ii. Building BBQ Instructions 24-25 iii. Building BBQ Specifications iv. Installation Diagrams VII. First Time Operation i. Lighting the Appliance 28-29 ii. Manually Lighting the Appliance 29-30 iii. Flame Adjustment 30-31 Blaze Outdoor Products Instructional Book Page | 3... - Page 4 32-33 Fuel Conversion i. Gas Regulator ii. NG – LP Regulator Conversion iii. Main Burner iv. Rear Burner XI. Warranty Registration XII. Grill Parts XIII. Product Serial Number XIV. Blaze Product Registration Blaze Outdoor Products Instructional Book Page | 4...

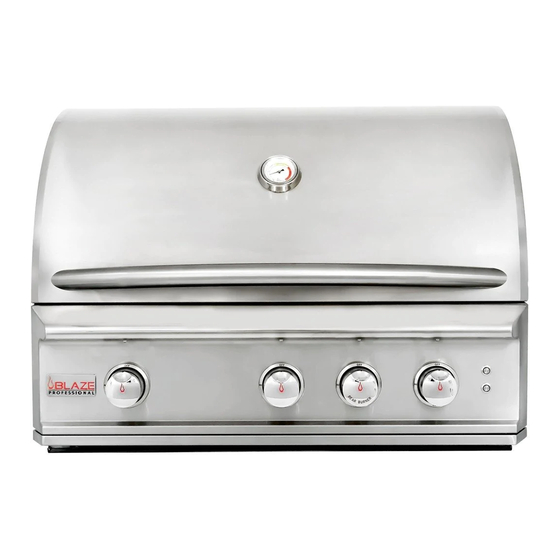

- Page 5 THIS MANUAL APPLIES TO THE FOLLOWING BLAZE GRILLS: Model: BLZ-3PRO / 3 BURNER Model: BLZ-2PRO / 2 BURNER 10 1/2″H x 24 7/8″W x 23 5/8”D 10 1/2″H x 32 1/4″W x 23 5/8”D Cutout Dimensions Cutout Dimensions /” / ″...
- Page 6 THIS MANUAL APPLIES TO THE FOLLOWING BLAZE GRILLS: Model: BLZ-4PRO / 4 BURNER 10 1/2″H x 42 1/2″W x 23 5/8”D Cutout Dimensions /” / ″ BTU Output 18,000 BTU per Burner x4 Infrared Back Burner 10,000 BTU Total BTU...
-
Page 7: Bbq Specifications
BBQ SPECIFICATIONS NOTE: ALWAYS have equipment measured by Contractor before beginning any project. 2 Burner 3 Burner 4 Burner Blaze Outdoor Products Instructional Book Page | 7... -
Page 8: General Safety And Installation Warnings
General Safety and Installation Warnings Safe operation of the BLAZE GRILL depends upon its proper installation. Only a qualified professional installer and service technician must perform adjustments and service of the grill. Proper location and proper use is essential to insure safe and continued trouble-free operation. - Page 9 When using your Blaze appliance, please read and follow these basic precautions: To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before installing/operating your appliance. APPLIANCE INSTALLATION This gas appliance must be installed in accordance with all local codes.
- Page 10 Although an obstructed burner tube not the only cause “FLASH-BACK” it is the most common cause, and frequent inspection and cleaning of the burner tubes is necessary. Blaze Outdoor Products Instructional Book Page | 10...
- Page 11 Use cooking utensils with wood handles and insulated oven mitts when operating the appliance. Do not store anything in the appliance. Make sure food is not forgotten in the appliance; forgotten items could Blaze Outdoor Products Instructional Book Page | 11...
-
Page 12: Location Of Appliance
Please note since hot air rises above the BLAZE GRILL while in operation, covered locations should be avoided. Do not locate the BLAZE GRILL where an overhang or awning may cover it. - Page 13 A minimum 6 foot of clearance is required between the countertop and the overhead construction. o When installed under a combustible overhead construction, the area above the Blaze appliance must be covered with a vent hood. The vent hood must provide protection for the combustible overhead construction.
-
Page 14: Electrical Safety And Installation Warnings
This appliance conforms to all uniform electrical safety codes and electrical grounding regulations. Install unit according to I.A.W. local codes or with National Electrical Code ANSI/NFPA 70 or CSA C22.1 in their absence. Blaze Outdoor Products Instructional Book Page | 14... -
Page 15: Gas Safety And Installation Warnings
SURFACE, SHARP OR ROUGH EDGES OF THE GRILL OR OUTDOOR KITCHEN CONSTRUCTION. DO NOT KINK THE GAS LINE WHEN INSTALLING. The self-contained LP system appliance is design certified to be used with a standard 20 lb., 12 1/4" diameter; 18" high Blaze Outdoor Products Instructional Book Page | 15... - Page 16 Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by BLAZE OUTDOOR PRODUCTS. Blaze Outdoor Products Instructional Book...
-
Page 17: Checking For Gas Leaks
The following diagram is intended to show what a leaking connection would look like. These two locations are not the only points to check nor the only potential areas for a gas leak to be present. Blaze Outdoor Products Instructional Book Page | 17... - Page 18 Ensure the leak test includes all valves, pipe connections, joints, lines and every point from the gas source to the burners. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS. Blaze Outdoor Products Instructional Book Page | 18...
-
Page 19: Unpacking Unit
An installer supplied gas shutoff valve must be installed in an accessible place. Liquid Propane (LP) Gas and Tank Requirement If your BLAZE Grill is for a Liquid Propane application, a LP regulator set for 11” WC must be used and is for Blaze Outdoor Products Instructional Book Page | 19... - Page 20 Never store any spare or extra gas cylinder(s) around or in the outdoor kitchen containing the BLAZE GRILL or any other open flame, heat-producing appliance(s) or heat source. Filling and Refilling LP Gas Cylinders: ...
-
Page 21: Transporting And Storing Lp Gas
6. To disconnect after you have used the appliance, turn the burner knobs to the OFF position. 7. Close the Cylinder Valve by turning the Hand Wheel counter-clockwise until it stops. 8. Disconnect the regulator from the LP cylinder after use. Blaze Outdoor Products Instructional Book Page | 21... -
Page 22: Installing The Appliance In A Bbq Island
This can back up the heat behind the control panel potentially creating a gas leak, damage to the product, and injury. A wind block behind the grill may be necessary. Blaze Outdoor Products Instructional Book Page | 22... -
Page 23: Outdoor Kitchen Ventilation
If a plenum wall is undesirable, Blaze offers a Propane tank drawer as an alternative. NG/Natural Gas: Natural gas is lighter than air and will rise to the highest levels of the outdoor kitchen. It is imperative to provide adequate cross ventilation for the areas where gas can accumulate at these higher levels of the island cavity. -
Page 24: Building Bbq Instructions
Before installing the grill into the island cutout, the main burner cotter pins may be removed for convenience of service, adjustments, and maintenance in the future. These are accessible from the outside rear of the grill. Blaze Outdoor Products Instructional Book Page | 24... - Page 25 Perform the leak test procedure as described earlier in this manual. • Connect the transformer to the grill, then into the electrical outlet. Be sure to follow all electrical safety and instruction found on page 14. Blaze Outdoor Products Instructional Book Page | 25...
-
Page 26: Building Bbq Specifications
(such as a combustible wall) be located behind the grill that the needed 5” for lid clearance doesn’t satisfy the distance required from a combustible surface. See diagram on next page. Blaze Outdoor Products Instructional Book Page | 26... -
Page 27: Installation Diagrams
Additional Hood Clearance Figure 1 Addition Hood Clearance Installation Diagram Installation Method for Low Pressure Gas (5 Gallon LP tank shown) Source- (Natural Gas Regulator Shown) Blaze Outdoor Products Instructional Book Page | 27... -
Page 28: First Time Operation
Repeat the procedure or try the manual lighting procedure below. If the burner does not light after several attempts, immediately close all gas valves and consult an Blaze Outdoor Products Instructional Book Page | 28... -
Page 29: Manually Lighting The Appliance
Wait five minutes until the gas clears before attempting to light it again. If the burner does not light after several attempts, immediately close all gas valves and consult an authorized service technician. Blaze Outdoor Products Instructional Book Page | 29... - Page 30 Inspect burners for proper flame appearance. The ideal flame appearance is one that is mostly blue and not lifting off of the burner surface. There is an air shutter found at the end of the burner (close to Blaze Outdoor Products Instructional Book Page | 30...
-
Page 31: Cleaning Your Appliance
After the first use, it is normal for your appliance to become discolored in certain areas from the heat produced by the burners. A video for cleaning your grill is located on the blaze website to assist with the below instructions, www.blazegrills.com Exterior Cleaning When cleaning your appliance, always scrub and polish in the direction of the stainless steel grain. -
Page 32: Optional Infrared Sear Burner
Optional Infrared Sear Burner How to Replace Conventional Burner with Infrared Sear Burner (A video for installing the infrared sear burner is located on the blaze website to assist with the below instructions, www.blazegrills.com 1. To install the optional infrared burner, begin by removing the far left cooking grid, flame stabilizing grid and zone divider. - Page 33 This allows any food particles or grease drippings to burn away. Once your appliance has cooled completely, use a soft brush or vacuum to remove any ash accumulation on the burner if necessary. Blaze Outdoor Products Instructional Book Page | 33...
-
Page 34: Fuel Conversion
Fuel Conversion CAUTION: This should only by performed by a licensed gas professional. A video converting your blaze grill is located on the blaze website to assist with the below instructions, www.blazegrills.com Convertible Gas Regulator (if applicable): Currently all Natural gas grills are supplied with a regulator which is appropriate for use with Natural Gas or Low Pressure Propane. -
Page 35: Gas Regulator
Blaze Outdoor Products Instructional Book Page |... -
Page 36: Main Burner
Fuel (Gas) Conversion Instructions for BLAZE Gas grills. CAUTION: This should only by performed by a licensed gas professional. Main Burners: You must remove all cooking grids and flame tamers to expose the main burners in the appliance. (unless they were On the bottom rear of each burner there are two cotter pins. -
Page 37: Warranty Registration
Warranty Registration If you have purchased a Blaze Series Grill you must register your product within 30 days of purchase to validate the warranty and maintain your original receipt to get parts for the appliance. You may register your appliance at blazegrills.com by selecting Support, and then selecting Register your Product. -
Page 38: Grill Parts
BLAZE Professional Grills 3-burner pictured below Blaze Outdoor Products Instructional Book Page |... -
Page 39: Product Serial Number
Locating the Product Serial Number: The serial number for your BLAZE appliance is located on the left hand outs ide of the Firebox (see picture on page 15.) You will need this number to properly register your appliance and activate coverage. Write this information in the space... -
Page 40: Blaze Product Registration
Please take a minute to let us know what you bought. This makes sure we keep you up to date and have your info ready if you ever need warranty help! You may register your product electronically on the blaze website vs mailing in the below paperwork, blazegrills.com.
