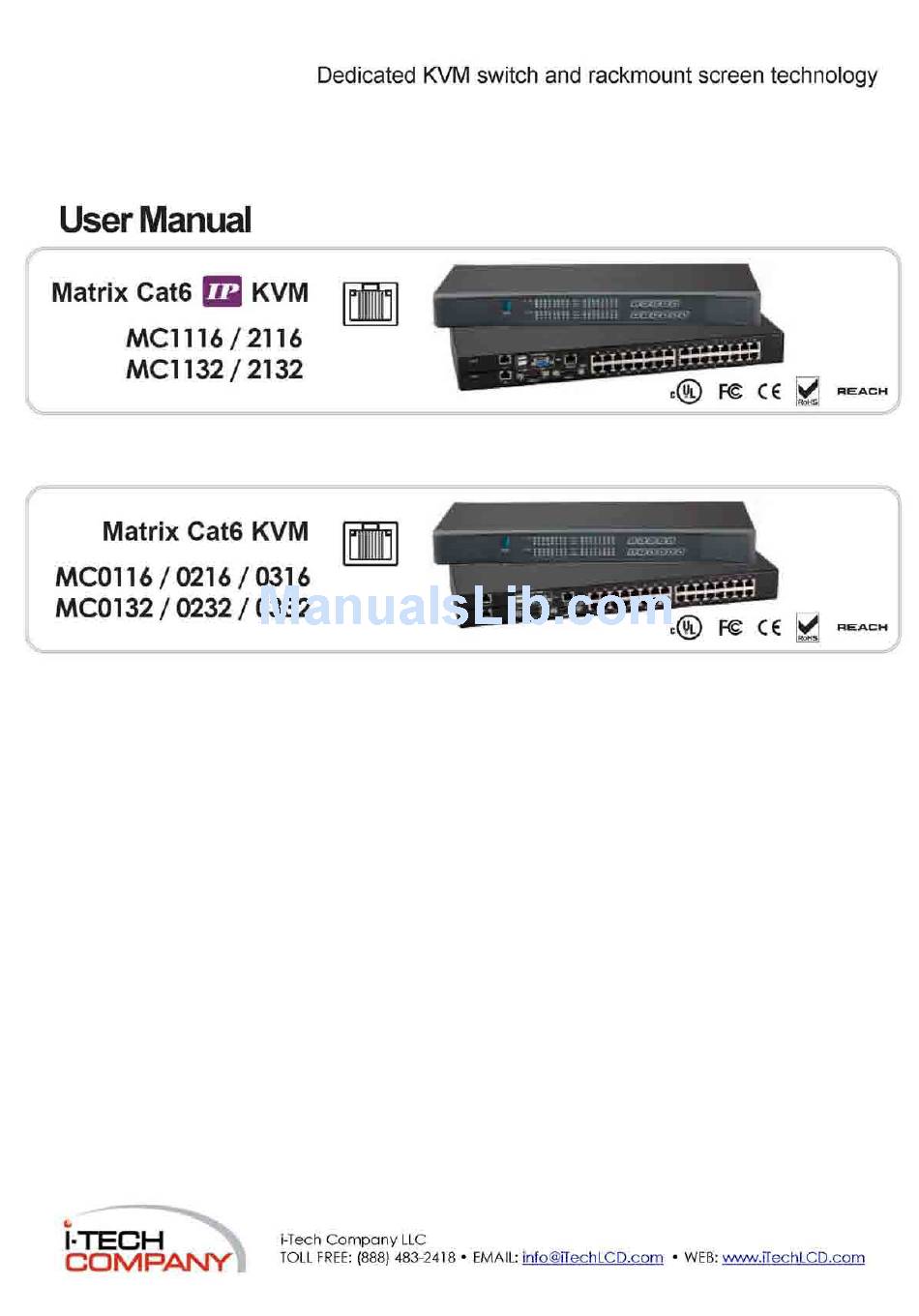

  • Page 1: User Manual

    Dedicated KVM switch and rackmount screen technology User Manual Matrix Cat6 mnrTR MC1116/2116 AAC1132/2132 Vk) F € CG S / Matrix Cat6 KVM rrirr i MC0116/0216/0316 MC0132/0232/0332 ce s/ F € |-T~E^j|"~I i-Tech Company LLC C^DN^RA^TY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
  • Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part 1 > Matrix Cat6 £Z3 MC1116 MC2116 MC1132 MC2132 Package contents KVM port & Cat6 dongle connection IP, Remote & Local console connection P. 3 IP console setting P. 5 KVM Cascade Specifications Resolution Support Information < Part 2 > Matrix Cat6 KVM...

  • Page 5: Before Installation

    Before Installation It is very important to mount the equipment in a suitable cabinet or on a stable surface. Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Package Contents

    Part 1. Matrix Cat6 UM KVM Matrix Cat6 IP KVM < 1.1 > Package Contents MC1116/MC1132 MC2116/MC2132 MC1116orMC1132or MC2116orMC2132 KVM unit x 1 Mounting set w/ bracket & screws x 1 Power adapter w/ power cord ( for KVM ) x 1...

  • Page 7: Kvm Port & Cat6 Dongle Connection

    < 1.2 > KVM port & Cat6 dongle connection Matrix Cat6 IP KVM USB Servers IF-DUSBD DVI-USB dongl scan CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port nnnnnnnn rYYYYYYY^ L JL JL A JL JL A A J L A JL JL JL JL JL JL J PS/2 Servers USB Servers IF-DUSB...

  • Page 8: Ip, Remote & Local Console Connection

    < 1.3 > IP, Remote & Local console connection Matrix Cat6 IP KVM \ < i t e r n e | [ Network device hub or router CAT 5 / 6 cable max. 100m Receiver CAT 5 / 6 cable max.
  • Page 9 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Receiver Local Computer Monitor Remote I/O Front 4[«ft. Power « & Rear H - - - - 1 |l - - - - 1 | Local Remote Mouse Button...

  • Page 10: Ip Console Setting

    9. Change the desired IP address / Subnet mask / Gateway, then click Setup Device to confirm the setting to IP KVM 10. The default address is as below:- ■ The single IP KVM model, such as MC1132 -http://192.168.L22 ■...

  • Page 11: Kvm Cascade

    Matrix Cat6 IP KVM < 1.5 > KVM Cascade Cascade up to 8 levels, 256 servers Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MC0116 / MC0132 or M018 / M0116. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 12: Specifications P7

    Matrix Cat6 IP KVM < 1.6 > Specifications MC1116 MC2116 MC1132 MC2132 ■ KVM Port Number of ports: 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable ■...

  • Page 13: Resolution Support Information

    < 1.7 > Resolution Support Information Matrix Cat6 IP KVM Max 4:3 Max 16:10 Remote console 1600x1200 1440x900 Local console 1600x1200 1440x900 IP console 1600x1200 Resolutions Capable Cat6 Dongle Cat6 Dongle Cat6 Dongle EDID EDID EDID Resolution Resolution Resolution 16:10 1024x768 1280x1024 | 1600x1200 1440x900...

  • Page 15: Part 2. Matrix Cat6 Kvm

    Part 2. Matrix Cat6 KVM Matrix Cat6 KVM < 2.1 > Package Contents MC0116/MC0132 MC0116 or MC0132 KVM unit x 1 Mounting set w/ bracket & screws x 1 Power adapter w/ power cord ( for KVM ) x 1 Receiver box for remote console x 1 Power adapter w/ power cord ( for receiver) x 1 NE-6 6ft Combo KVM cable for receiver box x 1...
  • Page 16 Matrix Cat6 KVM MC0116 Local Console Remote Console 1 ' r — — \ > I B I© Power f Y Y Y Y Y Y S I Jl Jl Jl A Jl Jl JO Cascade MC0132 f Y Y Y Y Y Y Y ^ f Y Y Y Y Y Y Y ^ I J I J U U U U I J U l A A A JUUIAJ MC0216...

  • Page 17: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM port & Cat6 dongle connection Matrix Cat6 KVM USB Servers IF-DUSBD DVI-USB dongl ■iim scan CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port V Y V V Y v i n r Y Y Y Y Y Y Y l PS/2 Servers USB Servers IF-DUSB...
  • Page 18 < 2.3 > Local console & remote console connection Matrix Cat6 KVM CAT 5 / 6 cable max. 150m CAT 5 / 6 cable max. 150m § Remote Local Remote Cat6 Cat6 Console 3 console Console 1 2» taBl J..,L f Y Y Y Y Y Y YJ5 f Y Y Y Y Y Y Yl □□□□□□□□...
  • Page 19 How to use a receiver to connect a remote console Matrix Cat6 KVM Receiver Local Computer Monitor Remote I/O Front 4[«ft. Power « & Rear H - - - - 1 |l - - - - 1 | Local Remote Mouse Button Button...

  • Page 20: Kvm Cascade

    < 2.4 > KVM Cascade Matrix Cat6 K V M Cascade up to 8 levels, 256 servers Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MC0116 / MC0132 or M018 / M0116. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 21: Specifications

    Matrix Cat6 KVM < 2.5 > Specifications MC0116 MC0216 MC0316 MC0132 MC0232 MC0332 ■ KVM Port Number of ports: 16 or 32 Connector: RJ-45 DVI-D / VGA connector dongle up to 40 meters (132 feet) via Connectivity: Cat6 / Cat5 cable ■...

  • Page 22: Resolution Support Information

    < 2.6 > Resolution Support Information Matrix Cat6 KVM Max 4:3 Max 16:10 Remote console 1600x1200 1440x900 Local console 1600x1200 1440x900 IP console 1600x1200 Resolutions Capable Cat6 Dongle Cat6 Dongle Cat6 Dongle EDID EDID EDID Resolution Resolution Resolution 16:10 1024x768 1280x1024 | 1600x1200 1440x900 Hard-coded...

  • Page 23: Part 3. Usage

    Part 3. Usage Matrix Cat6 KVM Usage 3.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications 16 ports o o o o o o o o...

  • Page 24: Password

    Matrix Cat6 KVM Usage Password The password is enabled by default, the default password is "00000000" eight zeros (Do not use "0" on number pad) ■ Enable password 1. Press the KVM hotkey Scroll Lock + Scroll Lock + U Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P In SUPERVISOR level, enter "00000000"...

  • Page 25: Kvmosd

    KVMOSD Matrix Cat6 KVM Usage OSD Menu PORT NAME BANK:1 F1 :MENU F1 :MENU cmEHEEB E l F2 : LOGOUT F2 : LOGOUT F3:PREV 0 2 # SYSTEM ESC : QUIT 0 3 # SYSTEM ENTER : COMPLETE 0 4 # SYSTEM * / # :SELECT 05&...

  • Page 26: Kvm Hotkey / Remote Console Hotkey

    Matrix Cat6 KVM Usage 3.4 KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +...
  • Page 27 I-TECH i-Tech C o m p a n y LLC C O M P A N V TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: w w w . i T e c h L C D . c o m...
