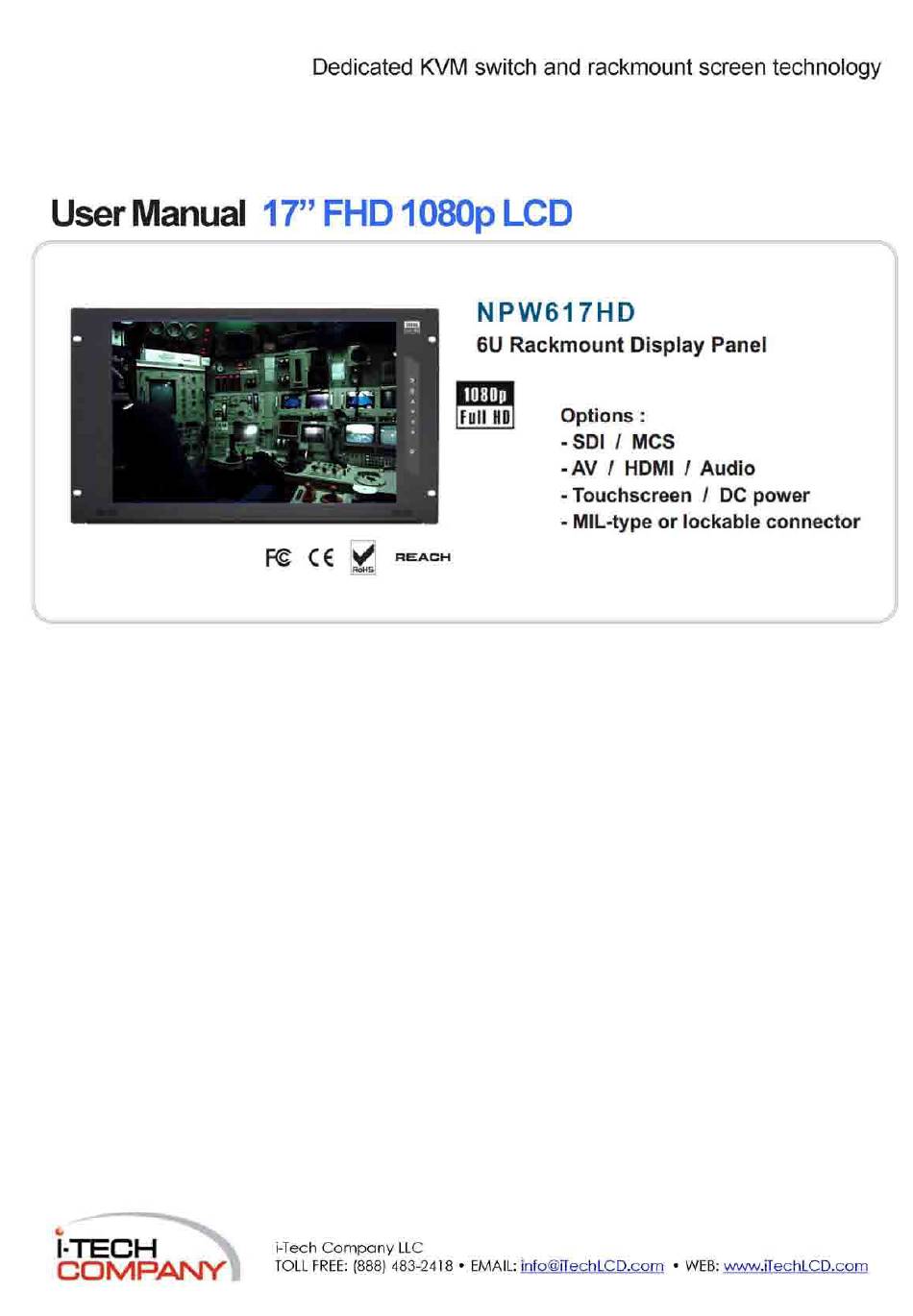

- Page 1 - SDI / MCS -AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector F @ C€ 3 R E A C H i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NPW617HD Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.8 - 9... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Npw617Hd
< Part 1 > < 1.1 > Package Content NPW617HDunit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view LCD panel ( D LCD membrane ©... - Page 6 Model (W x D x H) (W x D x H) Weight Weight 4.5 kg 6 kg 480 x 48 x 266 mm 529x124x451 mm NPW617HD 20.8 x 4.9 x 17.8 inch 9.9 lbs 13.2 lbs 18.9x 1.9x 10.5 inch...
-
Page 7: Installation
< 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step O Fix the LCD into the rack. -
Page 8: Product Specifications
< Part 2 > < 2.1 > Product Specifications 17.3-inch Widescreen TFT color LCD Panel Size ( diagonal) 1920x1080 Display pixel ( dots x lines ) Brightness (typ.) Contrast Ratio (typ. ) 600:1 1.07 Billion, 10-bit Color 89/89/89/89 Viewing Angle (L/R/U/D) Response Time ( ms ) 0.199 Dot pitch ( mm ) - Page 9 Temperature 0 to 50°C degree Environmental Operating Operating Conditions 20-90%, non-condensing Humidity Storage Storage Storage Storage Temperature -5 to 60°C degree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random Physical Physical Physical Physical Physical Product ( W x D x H ) Product ( W x D x H ) 480 x 48 x 266 mm Specification...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off nczi Display the OSD menu DCZI Act as an Enter key to select screen setting options A V < Scroll through menu options and adjust >... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) © PC Auto adjust Automatically adjust sizes, centers and fine tunes the ajto adjust video signal to eliminate waviness and distortion. Clock Clock : Adjust the clock value [> Phase Phase : Adjust the phase value H positive H.
-
Page 12: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSDMenu -> MISC -► PIP Mode -> Large / Small / OFF Main screen Sub screen Position... - Page 13 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSDMenu -> MISC -> PIP Mode -► PBP Sub screen Main screen Size LCD Monitor Main / Sub screen 1920x1200 955x716 1920x1080 955x716 1440x900...
- Page 14 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCDs' SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 15: Part. 3 > Options
< 3.2 > Options : MCS ( Multi-display Control) More control is always good. Especially when it is necessary and easy. i T e c h L C D provides MCS solution to control the OSD of various N e t V i e w LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy... -
Page 16: Av3.0 Upgrade
< 3.3 > AV3.0 Upgrade Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) DVI-D Power BNC S-Video HDMI ^ ^ 2-2-9... - Page 17 < 3.4 > Options : Touchscreen & driver F17" USB Touchscreen Specification Model Model Model Model Model Model Model Model Model Model Model Model Model e-Resistive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology 5-Wire Resistive Touch Point Touch Point Touch Point...
- Page 18 < 3.5 > Options : DC Power ofeTelo Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 - 1 8 V 1 8 - 3 6 V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
-
Page 19: Mil-Type Or Lockable Connector
MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. I-TECH i-Tech C o m p a n y LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: w w w .
