Detection Systems DS7400Xi User Manual

Ds7400xi (version 3+) security system when used with a ds7447 or ds7445 keypad
Hide thumbs Also See for DS7400Xi:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
DS7400Xi (version 3+) Security System
DS7447
Armed
Status
Power
Fire
1
2
4
5
7
8
0
*
Alpha "English Display" Keypad
User's Guide
An instruction guide for your alarm system
when used with a DS7447 or DS7445 keypad
On
Off
3
Perimeter
6
Only
No
9
Entry
#
Bypass
System
Reset
DS7445
Armed
Perimeter
Status
Supervisory
1 2 3 4 5 6 7 8
Power
Bell Silenced
Fire
Trouble
1
2
4
5
7
8
0
*

LED Keypad

On
Off
3
Perimeter
6
Only
No
9
Entry
#
Bypass
System
Reset

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS7400Xi and is the answer not in the manual?

Questions and answers

Related Manuals for Detection Systems DS7400Xi

Summary of Contents for Detection Systems DS7400Xi

  • Page 1: Led Keypad

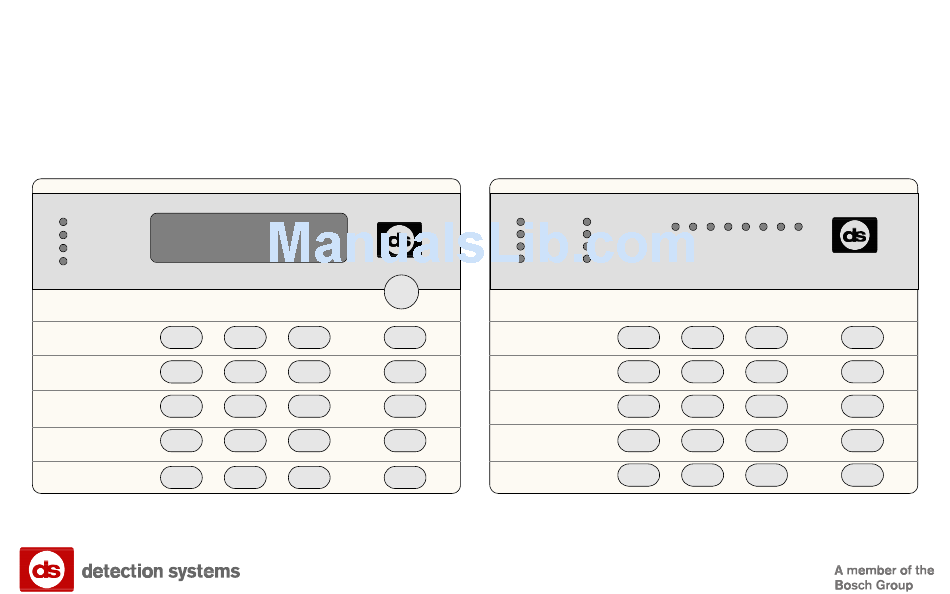

    DS7400Xi (version 3+) Security System User’s Guide An instruction guide for your alarm system when used with a DS7447 or DS7445 keypad DS7447 DS7445 Armed Armed Perimeter Status Supervisory Status 1 2 3 4 5 6 7 8 Power Bell Silenced...

  • Page 2: System Overview

    Congratulations on the installation of your new security system. No other investment can provide such peace of mind. Welcome to the DS7400Xi intrusion/fire control system. Since each installation is unique, yours will contain some, but not necessarily all of the features mentioned in this guide.

  • Page 3: Table Of Contents

    Personal Identification Numbers ........27 Table of Contents General Information ............27 Change a PIN..............28 System Overview ..............2 PIN Authority Levels ............29 Table of Contents ..............3 Error Displays ..............30 Important ................3 System Faults ..............31 Day to Day Operations ............

  • Page 4: Day To Day Operations

    Day to Day Operations Understanding the DS7447 and DS7445 Keypads This chart will help you understand what each Light/LED on a Standard keypad represents. (For Master keypad operation, see page 37.) Armed Armed Perimeter Status Status Supervisory 1 2 3 4 5 6 7 8 Power Power Bell Silenced...
  • Page 5 Understanding the DS7447 and DS7445 Keypads (continued) These Lights Present on the DS7445 Only: Light Flashing Perimeter Panel is disarmed or This Light will not flash. The perimeter is armed. (yellow) is not armed Perimeter. Supervisory There are no supervisory A supervisory condition exists.

  • Page 6: Turning On (Arming) Your System

    Turning ON (arming) your System This chart explains the five normal ways to arm the system from a Standard keypad. (For a Master keypad see page 37.) The green Status Light must be on steady and the display* must read “Ready to Arm” in order to arm the system with one of these commands.
  • Page 7 Command Type of Arming Desired What to Do What will Happen Sequence The red Armed Light will begin to flash. “Perimeter On” will be displayed.* Perimeter Arming “Exit Now” will be displayed during the exit delay interval.* The green Status Light will turn on steady. Move freely Someone still on the [PIN] +...

  • Page 8: Quick Arming Your System

    Quick Arming your System This chart explains four ways to quick arm the system from a Standard keypad. If Quick Arming is not used, a PIN must be entered at the beginning of all arming command sequences. When Quick Arming is used, the following short-cuts are available: Type of Arming Quick Arming Command Sequence Normal Arming...

  • Page 9: Turning Off (Disarming) Your System / Silencing Alarms

    Turning OFF (disarming) your System / Silencing Alarms This chart explains proper procedures for disarming and/or silencing alarms from a Standard keypad. (To disarm from a Master keypad, see page 40.) Please read the section about Emergency Procedures prior to being confronted with an emergency event. If you have entered the building through a perimeter door, you may hear a steady pre-alert tone from the keypads.

  • Page 10: Force Arming Your System

    Force Arming your System This chart explains the procedure for Force Arming your WARNING system if one or more zones are faulted. Bypassing or Force Arming removes some of your building’s protection because it excludes the faulted zones from arming. When one or more zones are faulted, the system may be Force Therefore, an intrusion may not be detected or the detection Armed (if programmed) by bypassing the faulted zones.

  • Page 11: Zone Bypass

    Zone Bypass This chart explains the procedure for bypassing a faulted zone prior to arming the system. There may be occasions when it is desirable or necessary to temporarily bypass one or more zones prior to arming the system. Bypass commands only work when the control panel is disarmed. For instance, an open window may cause the DS7447 dis- play to read “Not Ready”...

  • Page 12: Automatic Arming

    Automatic Arming Each partition can be programmed to automatically arm once per day. To program the Automatic Arming time, perform the following: Setting the Automatic Arming Time Notes Setting the Automatic Arming Time can only be performed in the Master Enter a [Master PIN] + [#] + [0] Programming Mode.

  • Page 13: Automatic Disarming

    Automatic Disarming Each partition can be programmed to automatically disarm once per day. To program the Automatic Disarming time, perform the following: Notes Setting the Automatic Disarming Time Setting the Automatic Disarming Time can only be performed in the Master Enter a [Master PIN] + [#] + [0] Programming Mode.

  • Page 14: Delaying Automatic Arming

    Delaying Automatic Arming This section explains how to delay the Automatic Arming Time. To inform occupants that the system is about to arm, a pre-arming period will begin 15 minutes before the system arms auto- matically. The keypad sounders, and any outputs programmed to follow the keypad sounders, will pulse five times every minute. During the last five minutes before arming, these sounders will be on steady.

  • Page 15: Delayed Arming

    Delayed Arming This section explains how to cause the system to arm after a specified number of hours. Delayed arming is simply causing the system to arm after a specified number of hours. To program the system for delayed arming, perform the following steps: Delaying Arming Notes Enter a [PIN]...

  • Page 16: Chime Mode

    Chime Mode This chart explains the procedure for turning ON and turning OFF Chime Mode. Chime Mode causes the keypad sounders to beep each time a Perimeter or Entry/Exit zone is violated while the control panel is off (disarmed). The [#] [7] command is used to turn Chime Mode both off and on. This will only activate or de-activate the keypad(s) in the partition you are entering from.

  • Page 17: Access Control

    Access Control This chart explains the procedure for activating devices that require an Access Control PIN. Your system may use a keypad key sequence to activate other electrical devices. The special PIN required to perform this function is known as an Access Control PIN. This feature can be used in armed or disarmed modes.

  • Page 18: Changing The Date

    Changing the Date This chart will guide you through the steps necessary to Change the System Date. You should write down your entries before you enter the Master Code Programming Mode and have them with you as you begin programming. Make your entries promptly. If a delay of 15 seconds or more occurs between your entries, the 3-beep error tone occurs and exits you from the programming mode.

  • Page 19: Changing The Expiration Date (For Temporary Pins)

    Changing the Expiration Date (for Temporary PINs) This chart will guide you through the steps necessary to Change the Expiration Date for Temporary PINs. You should write down your entries before you enter the Master Code Programming Mode and have them with you as you begin programming. Make your entries promptly. If a delay of 15 seconds or more occurs between your entries, the 3-beep error tone occurs and exits you from the programming mode.

  • Page 20: Changing The Time

    Changing the Time This chart will guide you through the steps necessary to change the Time displayed at the keypads. You should write down your entries before you enter the Master Code Programming Mode and have them with you as you begin programming. Make your entries promptly. If a delay of 15 seconds or more occurs between your entries, the 3-beep error tone occurs and exits you from the programming mode.

  • Page 21: Emergency Procedures

    Emergency Procedures Identifying Alarm Sounds Caution When Entering A Building An alarm has occurred if: Your alarm system may be programmed for a steady alarm sound • The bells and sirens are on, and/or or a pulsed alarm sound. It is important to learn the difference •...

  • Page 22: Turning Off (Disarming) Your System Under Duress

    Turning OFF (disarming) your System under Duress This chart explains the proper procedure for disarming under Duress. Ask your installer if the Duress feature has been activated. A Duress code is used when someone demands, by threatening your life or well-being, that the system be turned off. When used, the code will both turn off the system and report a silent Duress alarm if connected to a monitoring service.

  • Page 23: Emergency Keypad Alarms / Silencing Alarms

    Emergency Keypad Alarms / Silencing Alarms Armed Armed Perimeter Status Supervisory Status 1 2 3 4 5 6 7 8 Power Bell Silenced Power Fire Trouble Fire Perimeter Perimeter Only Only Entry Entry Bypass Bypass System System Reset Reset The Emergency Alarm Keys [A], [B], and [C] may generate Fire, Special Emergency and Panic Alarms if programmed by the installer.

  • Page 24: Fire Reset / Fire Trouble

    Fire Reset / Fire Trouble Fire Reset Fire Trouble During a fire alarm, exit the premises immediately. When you A Fire Trouble message with a zone number signifies a problem have determined there is no fire, you must silence the bells/ with the fire system, such as a break in the wiring that monitors sirens before you can initiate the System Reset command.

  • Page 25: Fire Safety

    Fire Safety WARNING: No fire detection device or system should be considered 100 percent foolproof. This fire alarm system can provide early warning of a developing For added early warning protection, it is recommended that fire. Such a system, however, does not ensure protection against detectors be installed in all separated areas including the property damage or loss of life resulting from a fire.

  • Page 26: Installation Considerations

    Fire Safety (continued) • Provide a barricade between family members and fire, smoke Installation Considerations and toxic gases (i.e. close all bedroom doors before retiring). Proper location of detection devices is one of the most critical • Children should be instructed on opening their bedroom win- factors in a fire alarm system.

  • Page 27: Personal Identification Numbers

    Personal Identification Numbers General Information User Number 001 is designated as a Master code. It can be used to add, delete, or change other PINs. It will always have When programming Personal Identification Numbers, it is help- access to all partitions regardless of how it is programmed. ful to know the following terms: User Number 001 is shipped from the factory with the PIN of 1 2 3 4.

  • Page 28: Change A Pin

    Personal Identification Numbers (continued) This chart will guide you through the steps necessary to change a PIN. You should write down your entries before you enter the Master Code Programming Mode and have them with you as you begin programming. Make your entries promptly. If a delay of 15 seconds or more occurs between your entries, the 3-beep error tone occurs and exits you from the programming mode.

  • Page 29: Pin Authority Levels

    Personal Identification Numbers (continued) PIN Authority Levels 4 = Temporary: Valid only for a specified time (the PIN will disappear upon 0 = Master: expiration date). It can arm and disarm the system, but can Can enter all commands, add or change PINs in assigned not perform any other functions.

  • Page 30: Error Displays

    Error Displays This chart explains the procedure for reading Error messages when the green Power Light is flashing. Clear the Error Display only on the advice of your installing company To Clear a display, enter [PIN] + [System Reset]. or if you are certain the problem has been remedied. Error Message Meaning DS7447...

  • Page 31: System Faults

    System Faults System Faults are designated as follows: System faults are designated as follows: [#] [8] [9] will display [#] [8] [7] will display RAM Fault System fault 01 ROM Fault System fault 02 EEPROM Fault System fault 03 Ground Fault System fault 04 2Ph/Bell Fault = loss of communication to DS7420i System fault 10...

  • Page 32: Testing Your System

    Testing your System This chart explains the procedure for performing a Zone Test. It is recommended that the system be tested weekly. The Zone Test is used to confirm that detectors will report alarms to the keypad. A Zone Test works on all zones, except 24-hour zones and fire zones. While the keypad is in a Zone Test, no control panel alarms will activate an alarm, except 24-hour zone alarms and fire alarms;...

  • Page 33: Battery Test

    Testing your System (continued) This chart explains the procedure for performing a Battery Test. If a power failure occurs, your control panel has a built-in battery that will continue to power the control panel for many hours. The control panel automatically recharges the battery when power is restored. In addition to an automatic battery test performed every 2 minutes, the battery may also be tested manually.

  • Page 34: Communicator Test

    Testing your System (continued) This chart explains the procedure for performing a Communicator Test. This test is available only if your system transmits alarms and system information to a monitoring service, and has been programmed by the security installing company to permit communicator tests. This test can be performed from a Master Keypad.

  • Page 35: Fire Walktest

    Testing your System (continued) This chart explains the procedure for performing a Fire Walk Test. This test is used to confirm that Smoke detectors will report alarms to the keypads. The Fire Walk Test tests all fire zones, including verified fire and waterflow. At the start of the Fire Walk Test a Fire Walk Test report, if programmed, is sent to the central station.

  • Page 36: Event History Readback

    Event History Readback This chart explains the procedure for performing an Event History Readback. The History Buffer stores the last 400 events in memory. The DS7447 can display all of these events. The DS7445 will only display those zones (1-8) that have alarmed since the last Event History Readback. Type of Command What will Happen...

  • Page 37: The Master Keypad General Information

    The Master Keypad - DS7447 only Your system may include a Master keypad. A Master keypad is a DS7447 keypad programmed to give a user access to all the partitions he has access to, not just the partition the Master keypad is in. This is different from a Standard keypad in that Standard keypads only give access to the single partition they are in.

  • Page 38: Master Keypad Displays

    Master Keypad Displays - DS7447 only This chart will help you understand what each Light function of the Master keypad represents. Light Flashing One or more partitions Armed All partitions are armed, and no alarms have All partitions are disarmed. are armed, or an alarm (red) occurred.

  • Page 39: Arming From The Master Keypad

    Arming from the Master Keypad - DS7447 only This chart will help you to Arm from the Master keypad. Arming from the Master keypad Arming all the Enter your PIN followed by one of the arming sequences. Partitions you have This will arm all of your partitions, even if some are already armed.

  • Page 40: Disarming From The Master Keypad

    Disarming from the Master Keypad - DS7447 only This chart will help you to Disarm from the Master keypad. Disarming from the Master keypad Disarming all the Enter your PIN followed by the [Off] key. Partitions you have This will disarm all of your partitions, even if some are already disarmed. access to You must enter Single Partition Mode to disarm the necessary partitions one at a time (see page 39).

  • Page 41: Single Partition Mode

    Single Partition Mode - DS7447 only Single Partition Mode is used to control partitions on a “one at a time/one by one” basis from the Master keypad. To enter the Single Partition Mode, enter your [PIN], then press the [#] key twice. This will call up the first partition you have access to.

  • Page 42: Glossary

    Glossary Access Control PIN common entry way to separate Entry Delay An Access Control PIN is a special partitions. A Master keypad would An Entry Delay is a predetermined code used to activate electric door normally be found in the Common Area. amount of time that allows entry into locks or other mechanisms connected A Common Area is only armed when...
  • Page 43 Glossary (continued) Installing Company Partitioning The Installing Company is the company Partitioning divides the system into 2, that physically installed the system. It 3, 4, 5, 6, 7, or 8 areas or partitions. may or may not be the same company This allows the system to act as 2, 3, who monitors the system.

  • Page 44: Index

    Index Entry Delay ........42 Master Keypad ..... 37, 38, 39, 40 Access Control ......... 17 Error Displays ......30, 31 Monitored System ......43 Access Control PIN ....17, 42 Event History Readback ....36 Monitoring Service ......42 Alarm Sounds ........

  • Page 45: Quick Reference Guide

    Quick Reference Guide Maintenance and Service The system should be tested weekly to ensure it is functioning properly. If problems are detected in testing or changes are noticed in normal operation, call your installing company for service. The manufacturer recommends replacing the system battery every 3 to 5 years.
  • Page 46 Quick Reference Guide (continued) Zone Protection Zone Protection Zone Protection Zone Protection Zone Protection 65 _______________ 78 _______________ 91 _______________ 104_______________ 117 _______________ 66 _______________ 79 _______________ 92 _______________ 105_______________ 118 _______________ 67 _______________ 80 _______________ 93 _______________ 106_______________ 119 _______________ 68 _______________ 81 _______________ 94 _______________...

  • Page 47: System Features Reference Guide

    System Features Reference Guide Audible Alarm Signalling Device Sounds Force Arming Intrusion ( ) Pulse ( ) Continuous Enter an arming command sequence followed by the [Bypass] Fire ( ) Pulse ( ) Continuous key. The maximum number of zones that can be forced armed is _____ Keypad Supplemental Alarm [B] Key ( ) Continuous...

  • Page 48: For Service

    Enter your [Access Code PIN] followed by [Off]. Please contact your Installing Company at the above numberr December 2001 Detection Systems, Inc., 130 Perinton Parkway Copyright © 2001 Detection Systems, Inc. Fairport, New York, USA 14450-9199 DS7400Xi (Ver. 3+) User’s Guide P/N: 32781D - 48 -...
