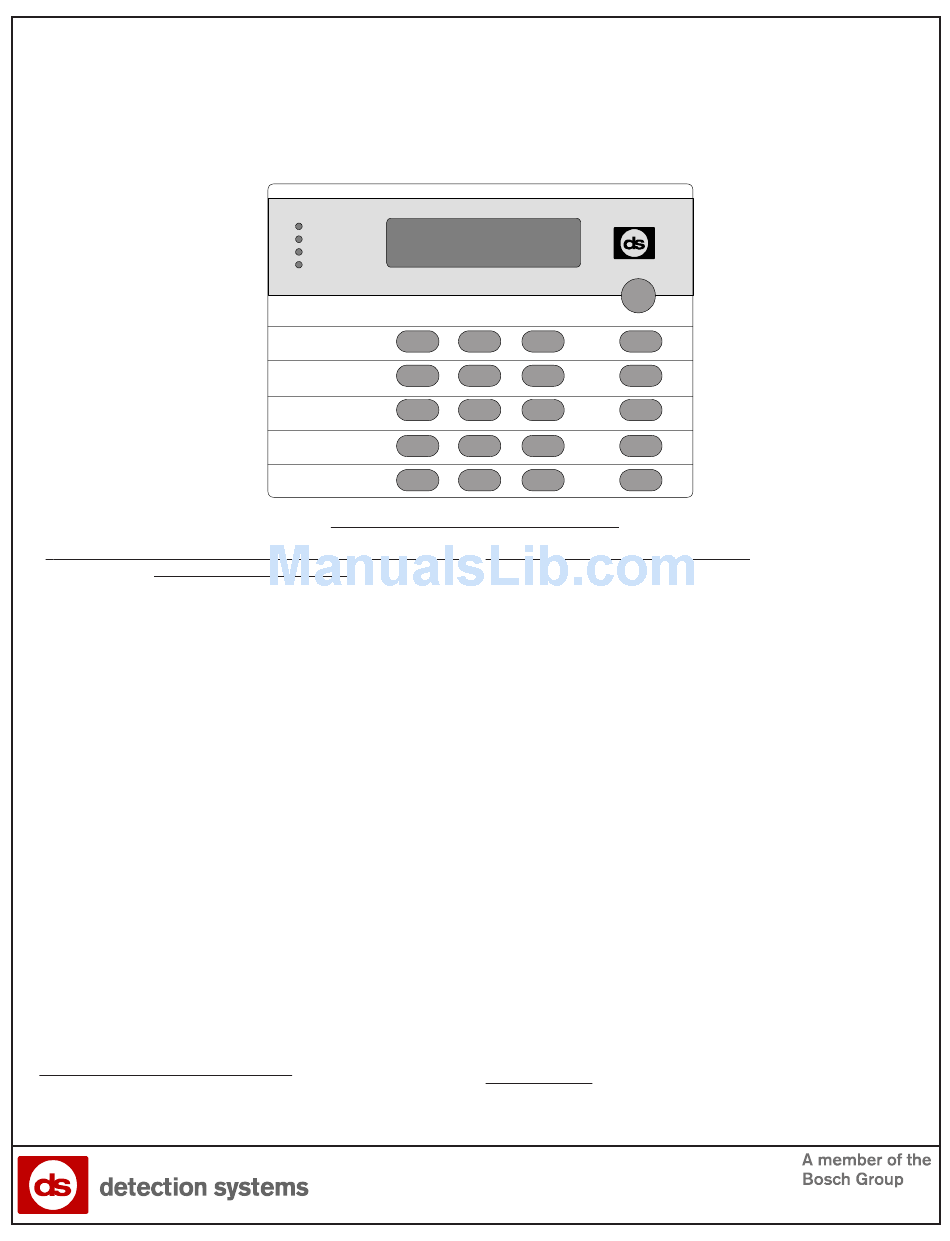

Reference Guide for the DS7400Xi (Version 3+) Control/Communicator Armed Ready To Arm Status Power Fire Perimeter Only Entry Bypass System Reset Keypad Quick Reference Guide Turning On (arming) your System using the DS7445/DS7445i Commands for other System Features or DS7447/DS7447E Keypad...
Users The total combined output cannot exceed the max. load current. The DS7400Xi system allows up to 90 individual users. Each user will have his own PIN number (the 4 digit code entered at the key- • Input power: 18 VAC, 50 VA, 50 Hz./60 Hz.
Loop Power + 500 mA 500 mA 1.16 Backup Battery Calculation • The following table is used to calculate the standby battery capacity required by NFPA when using the DS7400Xi: Standby Current Total Standby Current Alarm Current Total Alarm Current...
Page 7
Underwriters Laboratories, Inc. formats. The packages include the following: • Current Draw: 500 µA Standby, 560 µA Alarm. • DS7400XiF: DS7400Xi in large red enclosure (manufactured • MX280THL: Multiplexed Photoelectric Smoke Detector with a from 18 Ga., cold-rolled steel, and measures 15.0"...
Install the Control/Communicator The control is static sensitive. Make sure you touch The DS7400Xi control/communicator and the enclosure are shipped together. The control, however, still needs to be installed into the earth ground before handling the control. This will dis- charge any static electricity in your body.
• Zone - This zone is bypassed by Perimeter Instant or Perimeter arming. A Zone is an input to the DS7400Xi Control/Communicator. - There are 8 hardwired zones on the main circuit board. • Interior Instant: This is a zone programmed to activate an alarm - Additional zones may be added by using the DS7433 (8 zone even during the entry/exit delay periods.
Normally Open of each contact to terminal positions 13 - Multiplex Bus outputs can be bypassed using the bypass and 16 (one to terminal 13, the other to 16) of the DS7400Xi. function. If an output zone is bypassed while it is ON, it will turn - This output follows all partitions regardless of how data digit 2 OFF.
Arming/Disarming Commands For commands to Arm, Disarm, Bypass or set chime mode, see the front cover of this Reference Guide or consult the DS7400Xi Ver. 3+ User’s Guide (P/N: 32781). Changing the Date This chart explains the procedure for changing the date at the keypad.
*4 = E *5 = F Defaults The DS7400Xi is shipped from the factory as a working, pre-programmed control. Many of the programming addresses may already be Reverse Print set to the values you need. The default values are shown in Reverse Print.
See Glossary (section 6.13) for further details. Data Digit If the DS7400Xi Version 3+ is configured as a Commercial Fire Mode System (Address 0186 - section 1-*2) the AC Failure Report is sent on a random basis at any time...
11.29.1 Compatible Receivers Format The following table lists those Digital Alarm Communicator Receivers and Formats that are compatible with the DS7400Xi. Contact your central station regarding which format to use and if a special line card is required. Receiver ADEMCO: Model 685 F.B.I.: Model CP-220...
NFPA 72 for Household and Commercial Fire installations. 12.1.1 U.L System Configurations The following table shows the DS7400Xi system configuration for the various types of fire and burglar alarm service for which the product is U. L. Listed.
• Program Address 0185 must be programmed as: Data Digit 1=0, Required Accessories: Data Digit 2=0. • At least one Detection Systems, Inc. Model DS250 Series smoke detector with an MB Series base, DS280 Series, MX280 Series, 4. Alarm Output Programming: or another Listed compatible smoke detector.
• Program Address 0149 must be programmed as: Data Digit 1=8. Required Accessories: 12.4.1 Local Burglary Alarm • The control must be in the Detection Systems’ model AE3CC enclosure with a cover actuated tamper switch installed. A. Grade A Installations using Digital Alarm Communicator •...
Page 85
#87 display = AR Opt. Bus Err The panel can no longer communicate with Check the wiring between the DS7400Xi and the #89 display = System Fault 58 the ARDIS Module. ARDIS Module.
