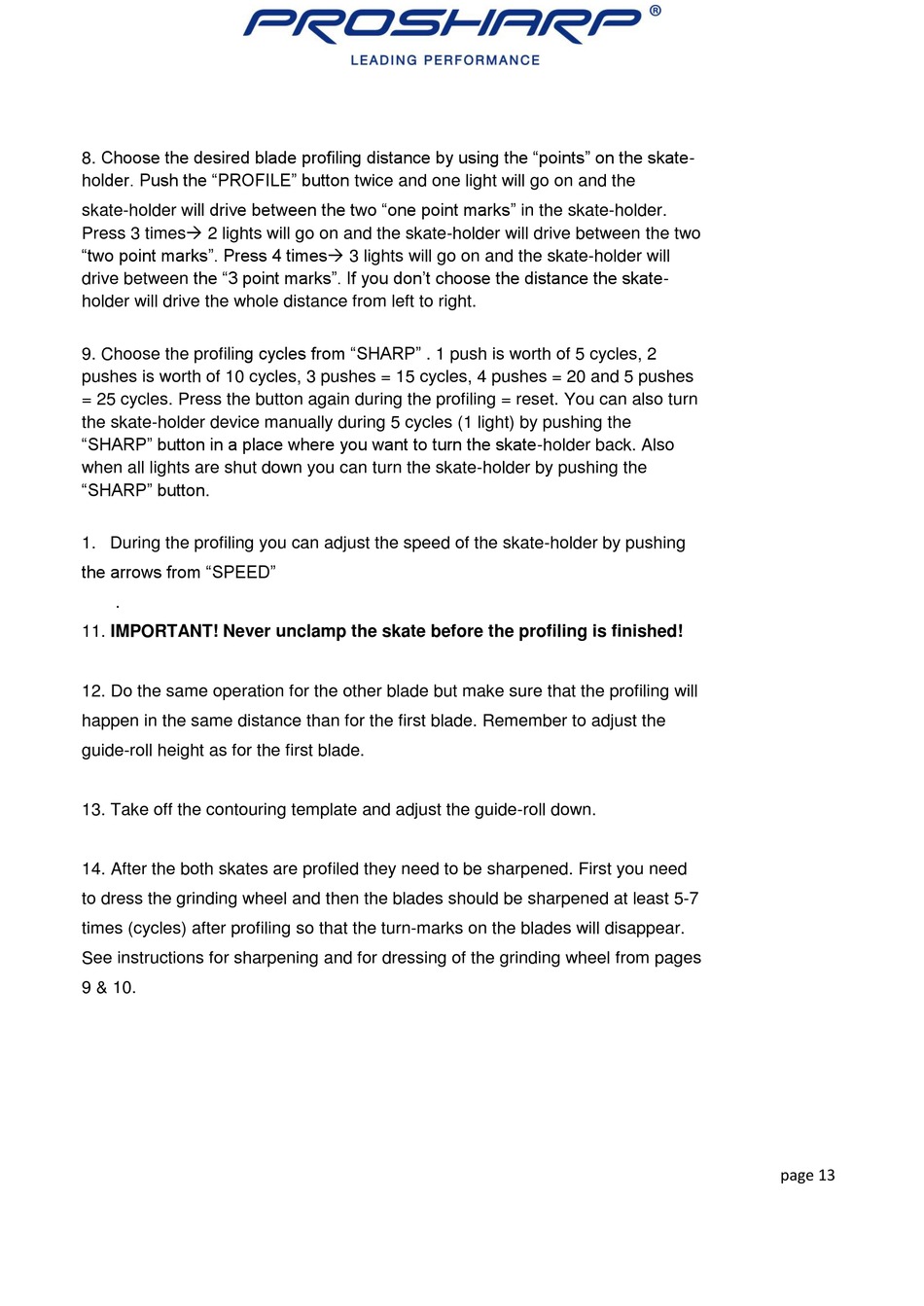

Prosharp AS 2001 Original Instructions Manual page 13

8. Choose the desired blade profiling distance by using the "points" on the skate-
holder. Push the "PROFILE" button twice and one light will go on and the
skate-holder will drive between the two "one point marks" in the skate-holder.
Press 3 times 2 lights will go on and the skate-holder will drive between the two
"two point marks". Press 4 times 3 lights will go on and the skate-holder will
drive between the "3 point marks". If you don't choose the distance the skate-
holder will drive the whole distance from left to right.
9. Choose the profiling cycles from "SHARP" . 1 push is worth of 5 cycles, 2
pushes is worth of 10 cycles, 3 pushes = 15 cycles, 4 pushes = 20 and 5 pushes
= 25 cycles. Press the button again during the profiling = reset. You can also turn
the skate-holder device manually during 5 cycles (1 light) by pushing the
"SHARP" button in a place where you want to turn the skate-holder back. Also
when all lights are shut down you can turn the skate-holder by pushing the
"SHARP" button.
1. During the profiling you can adjust the speed of the skate-holder by pushing
the arrows from "SPEED"
.
11. IMPORTANT! Never unclamp the skate before the profiling is finished!
12. Do the same operation for the other blade but make sure that the profiling will
happen in the same distance than for the first blade. Remember to adjust the
guide-roll height as for the first blade.
13. Take off the contouring template and adjust the guide-roll down.
14. After the both skates are profiled they need to be sharpened. First you need
to dress the grinding wheel and then the blades should be sharpened at least 5-7
times (cycles) after profiling so that the turn-marks on the blades will disappear.
See instructions for sharpening and for dressing of the grinding wheel from pages
9 & 10.
page 13
