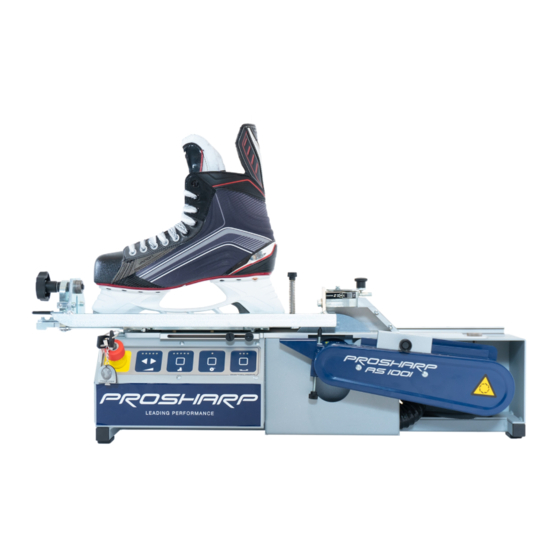

Skate sharpening machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

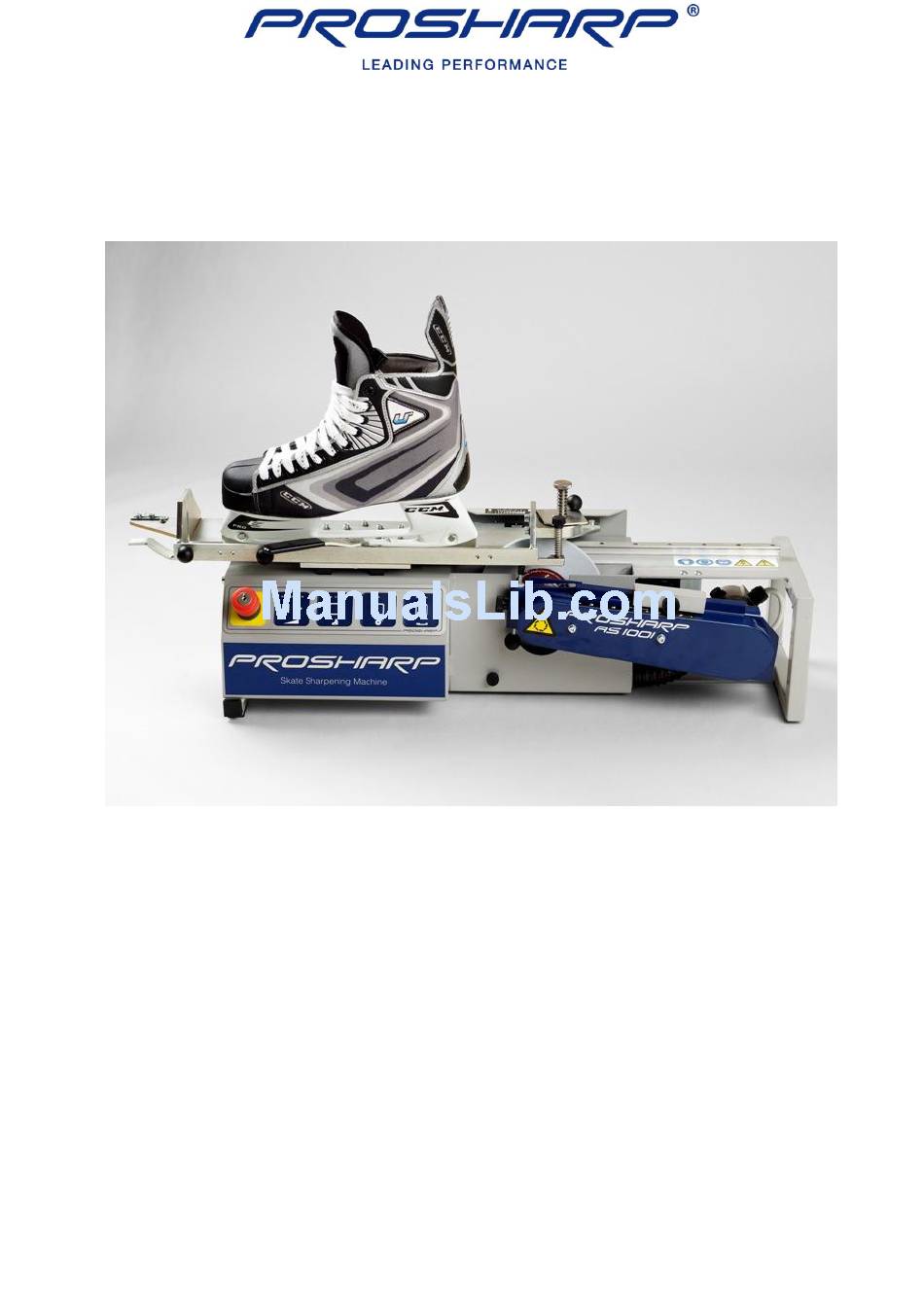

AS 1001- Portable
ORIGINAL INSTRUCTIONS
Read the installation and operating instructions carefully before using the machine.
Usage that is not in accordance with the instruction manual and/or disregard safety
instruction, may cause injury or death, and damage the machine.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS 1001-Portable and is the answer not in the manual?

Questions and answers

Related Manuals for Prosharp AS 1001-Portable

Summary of Contents for Prosharp AS 1001-Portable

  • Page 1 AS 1001- Portable ORIGINAL INSTRUCTIONS Read the installation and operating instructions carefully before using the machine. Usage that is not in accordance with the instruction manual and/or disregard safety instruction, may cause injury or death, and damage the machine. Page 1...
  • Page 2 5. Use the machine in a warm, dry and well lit room. 6. The AS 1001-Portable includes: 1 x transportation box, 1 x AS 1001-Portable skate sharpener, 1 x Grinding wheel MA70 (mounted), 1 x diamond tool NDT3 (mounted), 1 x instruction manual, 1 x power cord, 1 x 19mm wrench, 2 x key for emergency stop.
  • Page 3 5. Keep other persons away. Do not let persons, especially children, not involved in the work touch the machine or the extension cord and keep them away from the work area. Make workshop kip proof with padlocks, master switches, or by removing starter keys. Do not overreach.
  • Page 4 Control Panel Manual Page 4...
  • Page 5 Designation  ProSharp AS 1001-Portable is a skate sharpening machine and should be used only to sharpen ice skates. Safety Information and Recommendations  Before using the machine check the grinding wheel for cracks. If there are cracks in the wheel (can be caused in transport), change the wheel to a new wheel before grinding.
  • Page 6 For safety reasons, modifications of the machine or its design are not allowed. Maintenance  The ProSharp AS 1001-Portable is manufactured for low maintenance demands.  In your own interest and for your own safety, control and cleaning must be done before, during and after grinding.
  • Page 7 The ProSharp AS 1001- Portable delivery includes:  1 Skate sharpening machine ProSharp AS 1001- Portable  1 Grinding wheel MA70  1 Dressing-tool NDT3  1 Power cord  1 Key for grinding wheel change, 19mm  2 Keys for the use of the emergency button ...
  • Page 8 Notice: This is a technical machine and the operator must take notice that everything can happen earlier or later, bid defiance to number of pairs or real time. Please contact us for support about the machine! info@prosharp.net Page 8...
  • Page 9 Dressing of the grinding wheel 1. When dressing the grinding wheel always adjust the grinding wheel sideways to position 3.0 mm. See Picture 1. Never start to dress the grinding wheel if the Picture 1. skate is clamped into the machine. 2.
  • Page 10 Grinding 1. Adjust the grinding wheel sideways to the right blade thickness. See Picture 1. Always remember to measure both blades because there are sometimes differences even between the blades in same pair! HTC-tool is perfect for this! 2. Take the skate with your left hand and put the skate in to the skate-holder so that Picture 1.
  • Page 11 5. Important! If you wish to reset the grinding push quickly twice the “SHARP” button when the skate-holder is going from left to right. When the skate-holder is moving from right to left only one push is needed for “reset”. Never start the machine without a skate unless you are dressing the grinding wheel! 6.
