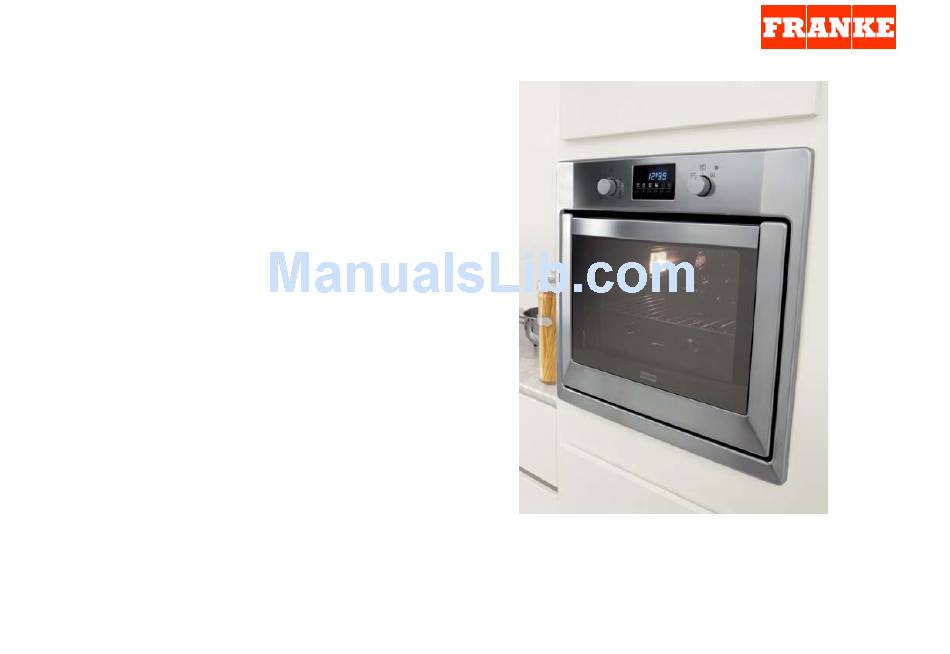

HANDBOOK
OVEN DESIGN METAL
UPDATED MARCH 2006
LIST SPARE PARTS DM74MXS
5600114
ESPLODED VIEW
WIRING DIAGRAM
5600116
LIST SPARE PARTS DM97MXA
ESPLODED VIEW
WIRING DIAGRAM
CLOSE-UP VIEW
7 COOKING MODES
9 COOKING MODES
ELECTRONIC COOKING PROGRAMMER
THE END COOKING TIME RUSTIC CLOCK
DISMOUNTING THE OVEN DOOR
AFTER SALE SERVICE LABEL SERIAL NUMBER
INSTALLATION
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DM74MXS 5600114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke DM74MXS 5600114

Summary of Contents for Franke DM74MXS 5600114

  • Page 1 HANDBOOK OVEN DESIGN METAL UPDATED MARCH 2006 LIST SPARE PARTS DM74MXS 5600114 ESPLODED VIEW WIRING DIAGRAM 5600116 LIST SPARE PARTS DM97MXA ESPLODED VIEW WIRING DIAGRAM CLOSE-UP VIEW 7 COOKING MODES 9 COOKING MODES ELECTRONIC COOKING PROGRAMMER THE END COOKING TIME RUSTIC CLOCK DISMOUNTING THE OVEN DOOR AFTER SALE SERVICE LABEL SERIAL NUMBER INSTALLATION...
  • Page 2 DM74MXS 5600114 3 GLASSES DOOR / Energy class A Inner dimensions of the oven : width mm440 depth mm 415 height mm Inner volume of the oven: 57 litres Consumption (convenction mode) : to reach 175° C: 0.32 kwh To maintain 175° 0,62 kwh...
  • Page 3 CODE POSITION DESCRIPTION SPARE PARTS 1992097 INSULATION CASING LAMP SIDE 1992009 MOTOR FAN/FAN AND NUT 1992010 GRILL+TOP ELEMENT 2250+556 W 1992011 CIRCULAR FAN ELEMENT 2000W 1992012 FAN DIFFUSER 1992013 INTERNAL OVEN CHIMNEY 1992014 OVEN LOW HEATING ELEMENT 1250 W 230V 1992015 LOWER PANEL 1992099...
  • Page 4 CODE POSITION DESCRIPTION SPARE PARTS 1992115 ASSEMBLY SURROUND OVEN DM 74MXS 1992121 RUSTIC PROGRAMMER SUPPORT DM 74 1992047 KNOB PEAP ST.STEEL 1992016 WIRE RACKS SIDE LEFT 1992019 WIRE RACKS SIDE RIGHT 1992017 SUPPORT WIRE RACKS SIDE 1992125 SUPPORT CONTROL PANEL DG/DM/GA 74 1992035 GLASS INSIDE 1992036...
  • Page 6 DM97MXA 5600116 3 GLASSES DOOR / Energy class A Inner dimensions of the oven : -9 COOKING MODES width mm440 depth mm 415 height mm -ADVANCED ELECTRONIC PROGRAMMER Inner volume of the oven: 57 litres - 3 GLASSES DOOR Consumption (convenction mode) : - 2 OVEN RACKS to reach 175°...
  • Page 7 1992005 GASKET 1992094 OVEN LAMP/ RECTANGULAR LAMP HOLDER DM74 1992095 WIRING HARNESS DM74 OVEN SIDE LAMP 1992096 LAMP 15 W 1992007 THERMOSTAT SAFETY TY 280° 16° 1992097 INSULATION CASING LAMP SIDE 1992009 MOTOR FAN/FAN/NUT 1992010 GRILL+TOP ELEMENT 2250+556W 1992011 CIRCULAR FAN ELEMENT 2000W 1992012 FAN DIFFUSER 1992013...
  • Page 8 1992056 DRIP TRAY 1992059 TANGENTIAL FAN 1 SPEED 14 W 1992060 OVEN BACK PANEL 1992061 PILOT LAMP 1992149 SUPPORT CONTROL PANEL DM97M 1992057 BRACKET FIXING FORNITURE 1992150 DOOR ASSEMBLY DM97MXA 1992135 ASSEMBLY SURROUND OVEN DM97MXA 1992243 KNOB SUPPORT 1992144 TELESCOPIC ARMS LEFT 1992145 TELESCOPIC ARMS RIGHT 1992146...
  • Page 10 All repairs should be carried out by specialised authorised staff. Contact your nearest after-sales service centre and request the use of original spare parts only. Your Franke oven is coated with a special enamel layer, which is easy to clean. Another good habit to get into is to clean it often and to avoid reheating caked on grease spots and food residue from previous uses.
  • Page 11 Cooling fan In order to cool down the door, control panel and sides of the appliance, this Franke oven is fitted with a cooling fan which turns on automatically when the oven is hot. When the fan is on, a normal flow of air can be heard exiting between the oven door and the control panel.

  • Page 12: Cooking Modes

    With this mode, you can also cook various dishes at the same time, as long as their respective cooking temperatures are the same. This is the most delicate of the ventilated modes available in this Franke oven, and is ideal for baking cakes and pastries in general, as it allows you to cook on three different rack heights simultaneously.
  • Page 13 In this case, the quick browning of the surface via infrared rays keeps the inside of the meat soft and tender; the grill mode can also be used to toast up to 9 slices of bread very quickly. Your Franke oven is perfectly safe, and has been designed for grilling food with the oven door completely shut.
  • Page 14 With this mode, you can also cook various dishes at the same time, as long as their respective cooking temperatures are the same. This is the most delicate of the ventilated modes available in this Franke oven, and is ideal for baking cakes and pastries in general, as it allows you to cook on three different rack heights simultaneously.
  • Page 15 The grill heating element situated at the top of the oven is tuned on. In this case, the quick browning of th( surface via infrared rays keeps the inside of the meat soft and tender; the grill mode can also be used tc toast up to 9 slices of bread very quickly. Your Franke oven is perfectly safe, and has been designed fo grilling food with the oven door completely shut.
  • Page 16 The end cooking time clock rustic The figure illustrates the programmer controls; knobs 1 (L/H) and 2 (R/ H) allow for all the necessary adjustments to be made. Knob 1 Use this knob to set the correct time. To do this, pull and turn the knob clockwise until the correct time is displayed. Knob 2 Use this knob to set the cooking time or to programme the oven for manual use.
  • Page 17 Electronic oven temperature control for model DM97MXS This feature allows you to program the oven or the grill as follows: • delayed start for a specific length of time; • immediate start for a specific length of time; • minute minder. Button Functions: minute minder with hours and minutes cooking time end cooking time...
  • Page 18 When a cooking mode is selected, the oven immediately starts the heating process, shown by the symbol of a hot pan on the display. For each cooking mode, the display suggests a recommended cooking C° temperature (SEE: Suggested cooking table); this temperature may be changed by the user using the knob: turn it anti-clockwise to decrease the temperature and clockwise to increase it.
  • Page 19 You will be informed that cooking has ended by an intermittent beeping (**) lasting one minute, which can be silenced by pressing the [+] key (or even the hot pan and stop , and the display will indicate. The oven suspends heating automatically, the fans will stay on to avoid any heat accumulation and the oven light will stay on so you can check cooking. However, the temperature inside the oven will remain high for several minutes.
  • Page 20 c° 1. Turn the selector knob , the display will suggest the recommended cooking temperature; use the temperature control knob ^c\ to change it if necessary. 2. Press the hot pan key and then press the [+] and [-] keys to set the desired cooking time, in this case 30 minutes. 3.
  • Page 21 DM74 MXS DM74MXT DM74MOA DM74MGF...
  • Page 22 DM97MXA...
  • Page 23 Dismounting the oven door To facilitate your task in cleaning the oven, the door can be dismounted at the hinges as follows: - The hinges (A) are fitted with two mobile U-bolts (B). Raise the U-bolt (B) to release the hinge from its seat. - Then lift the door upwards and pull it out;...
  • Page 24 A: PRODUCT CODE 5600110 B : SN SERIAL NUMBER : I = ITALY F= OVEN 03=PRODUCTION 2003 L=month of production 0000001= OVEN NUMBER C: OVEN MODEL CM72MXS...
  • Page 25 Assembly instructions Measure the width of the back panel (S) of the cabinet, which should usually be 16,18 or 20 mm. 16 mm back panel: place 2 tabs (T) indicating the number 16 on each fastening bracket (F). 18mm back panel: place 2 tabs (T) indicating the number 18 on each fastening bracket (F).
