Summary of Contents for Franke FCE60M5B

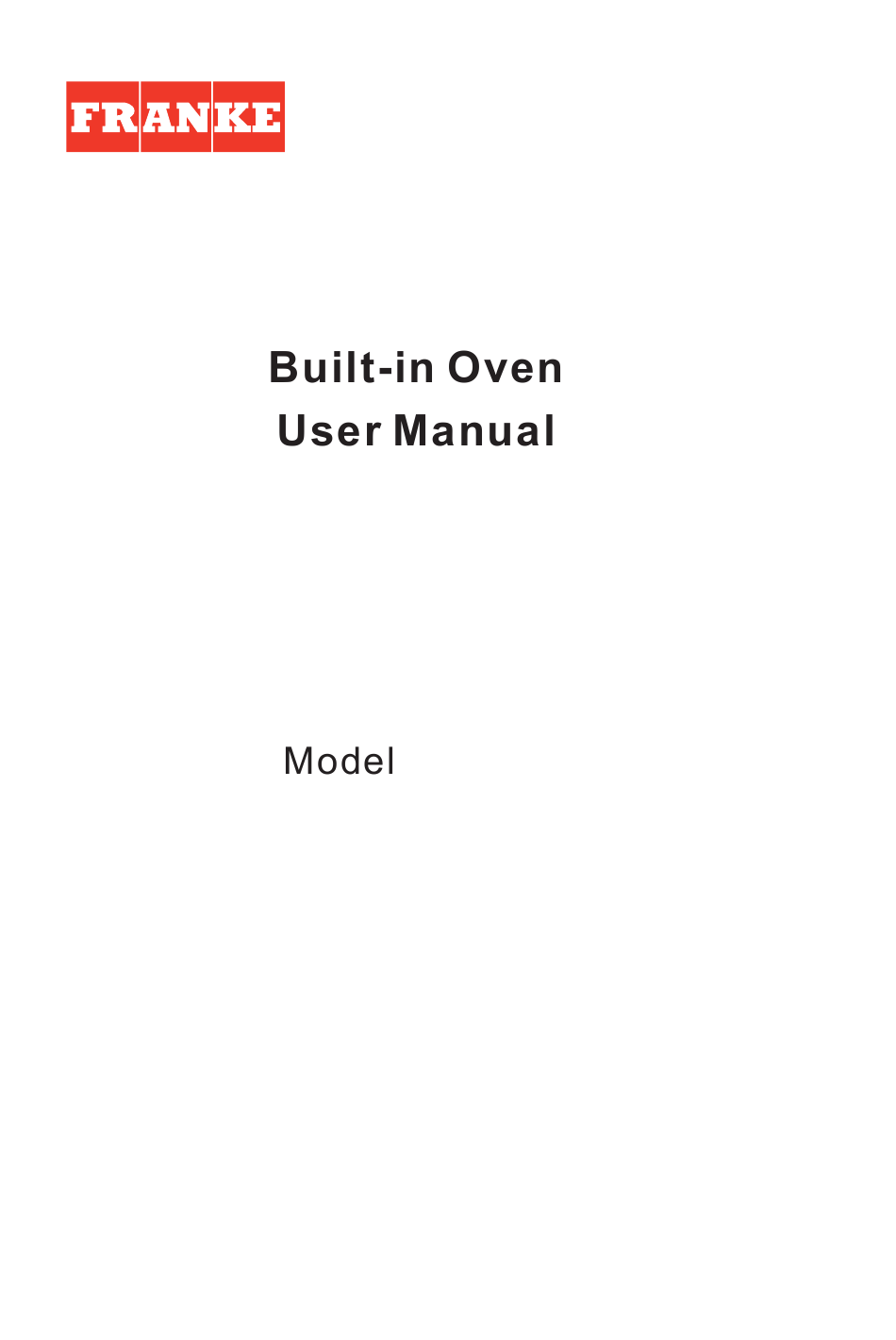

- Page 1 FCE60M5B...
-
Page 2: Safety Instructions
Using This Manual This Owner’s Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this Owner’s Manual before using your oven and keep this book for future reference. Safety Instructions Installation of this oven must be performed only by a licensed electrician. - Page 3 variation in temperatures. Do not pour water into the oven bottom when it is hot. This could cause damage to the enamel surface. The oven door must be closed during cooking. Do not line the oven bottom with aluminium foil and do not place any baking trays or tins on it. The aluminium foil blocks the heat, ...
- Page 4 Secure all loose garments, etc. before beginning. Tie long hair so that it does not hang loose, and do not wear loose fitting clothing or hanging garments, such as ties, scarves, jewelry, or dangling sleeves. When children become old enough to use the appliance, it is the legal responsibility of the parents or legal guardians to ensure that ...
-
Page 5: Disposal Instructions
● When the door is mounted, removing some of the parts (the door glass or some other part) from the door may result in injury. Attention The glass may break if you use excessive force especially at the edges of the front sheet. Accessories Wash all bakeware and accessories after each use and dry with a kitchen towel.To clean easily, soak in warm soapy water for about 30 minutes. - Page 6 of old appliances WARNING Before disposing of old appliances, make them inoperable so that they cannot be a source of danger. To do this, disconnect the appliance from the mains supply and remove the mains lead. To protect the environment, it is important that old appliances are disposed of in the correct manner. The appliance must not be disposed of with household rubbish.
-
Page 7: Close-Up View
Close-up view A. Control Panel B. Cooking mode selection knob C. Cooking temperature selection knob E. Oven indication light (only available on certain models) -When lit, it indicates the ovens is heating up to the temperature set F. Dripping Pan or Baking Sheet Oven Rack Guides for sliding the racks or dripping in and out End Cooking Time Knob... -
Page 8: How To Use Your Oven
How to use your oven This multi-function oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various features offered by the oven are selected by means of selector knob“B”... - Page 9 can balance the amount of heat between the top and the bottom of the oven .Select from among the various rack heights based on whether the dish needs more or less heat from the top . “Fast cooking”Mode 2175-2590W Position of thermostat knob “C”:Between 60℃and Max. The top and bottom heating elements, as well as the fan ,will come on ,guaranteeing constant heat distributed uniformly throughout the oven.
-
Page 10: "Defrosting"Mode
Grill 2385-2835W Position of thermostat knob “C” : Max. The top central heating elements comes on .The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender .The grill is also highly recommended for dishes that require a high temperature on the surface: beef steaks, veal, rib steak, filets, hamburgers etc …... - Page 11 In order to set the correct time, press the button first, then + or - button to carry forward or backward the figure until the exact time shows. Manual operation setting Press the button to remove the flashing of “AUTO”. If “AUTO”is flashing (automatic or semi automatic program has been set),press button to remove“AUTO”and then the manual operation process is on.
- Page 12 real time (hour, minute) will disappear. After the power is on again, three “ 0” and “AUTO” shows on the screen, the oven will automatically reset. 3-keys timer procedure baking mode (only available on certain models) Adjust the clock after switch on: Once it connected with electrical power, the display will show “12:00”...
-
Page 13: How To Keep Your Oven In Shape
time (hour, minute) and the square symbol above the “ ” begins to flash. In addition, the time countdown begins to work. When it reaches the set time, the square symbol above the “ ” flashes, and the alarm will ring, the square symbol will flash, To stop the ringing press any button. - Page 14 · Gently close the door until left and right hinge levers A are hooked to part B of the door (Dig.4); Reassemble the door by following the above procedures backwards. Fig.1 Fig.2 Fig.3 Fig.4 To dismantle the oven door (two methods) Method 1 remove and assemble procedure: ·...
-
Page 15: Practical Cooking Advice
Fig.1: Fig.2: Fig.3: Practical Cooking Advice The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience. - Page 16 bottom .For example, when cooking meat roasts together with other food, place the roast on the 2nd rack from the bottom and the more delicate food on the 4th rack from the bottom. · When cooking foodstuffs that require differing times and temperatures ,set a temperature that is somewhere between the two temperatures required ,place the more delicate food on the 4th rack from the bottom and take the food requiring less time out of the oven first .
- Page 17 Use less liquid, lower the temperature, and increase the cooking time. The Pastry sticks to the pan Grease the pan well and sprinkle it with a dusting of flour or use greaseproof paper. I used more than one level (in the function “ventilated oven ”) and they are not all at the same cooking point Use a lower temperature setting .It is not necessary to remove the food from all the racks at the same time.
- Page 18 Cream puffs (on 2 racks) 20-25 Biscuits (on 2 racks) 10-15 Sponge cake (on 1 rack) 15-20 Sponge cake (on 2 racks) 20-25 Savory pies 25-30 3 Top Oven Browning food to perfect Cooking 4 Defrosting All frozen food 5 Grill Soles and cuttlefish 8-10 Squid and prawn kebabs...
- Page 19 7 Baking Tarts 20-30 Fruit cakes 40-45 Fruitcake 40-50 Sponge cake 25-30 Stuffed pancakes) on 2 racks) 30-35 Small cakes (0n 2 rakes) 20-25 Cheese puffs (on2 cakes) 15-20 Cream puffs (on 3 cakes) 1-3-5 20-25 Biscuits (0n 3 racks) 1-3-5 20-25 Meringues (0n 3 racks)
- Page 20 N. B :Installation in compliance with the consumption declaration In order to ensure adequate ventilation ,the back panel of the cabinet unit must be removed .Installing the oven so that it rests on two strips of wood is preferable .If the oven rests on a continuous ,flat surface ,there must be an aperture of at least 45×560mm . The panels of the adjacent cabinets must be made of heat-resistant material .In particular ,cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100℃.
-
Page 21: Warranty And Service
pull open the cover of the terminal board. To install the cable, proceed as follows: · Remove the wire clamp screw and the three contact screws L-N - · Fasten the wires beneath the screw heads using the following color scheme :Blue (N) Brown (L) Yellow-Green ·... - Page 22 - A household fuse may have blown or a circuit breaker may have tripped. Replace the fuses or reset the circuit. If this happens repeatedly, call an authorised electrician. A noise can be heard after a The cooling fan remains switched on after the end of a cooking programme. cooking programme The lighting is not working Disconnect the appliance from the electricity supply:...
Need help?
Do you have a question about the FCE60M5B and is the answer not in the manual?
Questions and answers
How do I set the clock to normal time not the timer? I have the manual but it’s not happening
To set the clock on the Franke FCE60M5B to normal time instead of the timer, follow these steps:
1. Ensure the oven is connected to electrical power.
2. The display will show "12:00" with a square symbol above.
3. Press the "+" or "-" button to increase or decrease the time until the correct time is displayed.
4. After 5 seconds, the clock will set automatically, or you can press the function button to confirm the time.
This answer is automatically generated
