System Status

Use System Status to view system connections and
to conduct a unit self-test.
The following screens are displayed in turn when you
press the VIEW button when using System Status:
Self Test displays results from the internal diagnostic
self test, including unit serial number, Printed Circuit
Board (PCB) serial number, software revision, total
hours of operation and the input voltage.

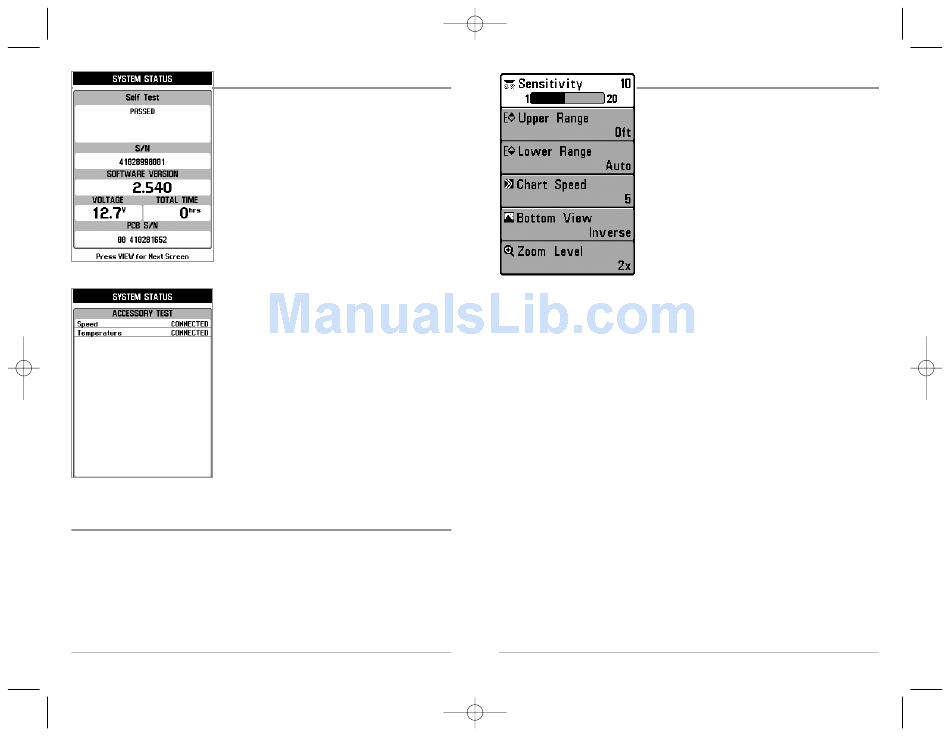

System Status Self Test Screen
Accessory Test lists the accessories connected to
the system.
NOTE: The speed accessory will be detected only if the
paddlewheel has moved since your Matrix™ Fishing
System was powered up.
Exit System Status by powering your Fishing
System off.
System Status Accessory Test Screen
PC Connect
Use PC Connect to update the software of the Matrix™ control head. This feature
requires the use of the PC Connect Cable. Complete instructions are included with
the PC Connect Cable accessory.
NOTE: The PC Connect Cable requires a separate purchase. For more information visit our
website at www.humminbird.com or contact our Customer Resource Center at 1-800-633-1468.
Exit PC Connect mode by powering the Fishing System off.
21
4:30 PM Page 26
• Self Test
• Accessory Test.
(With PC Connect Cable Only)
Sonar X-Press™ Menu
The Sonar X-Press™ Menu provides access to the
settings most frequently-used. Press the MENU key
once while in any of the Sonar Views to access the
Sonar X-Press™ Menu.
NOTE: Upper Range only appears in Advanced User
Mode when in Sonar, Split Sonar or Big Digits View.
NOTE: Zoom Level only appears in Sonar Zoom View.
Sonar X-Press™ Menu
