READ AND SAVE THESE INSTRUCTIONS
Range Hood User Guide
Euro Kitchen Appliances Inc.
Delta, BC Canada
www.KitchenHoods.ca
tel.604 8360517

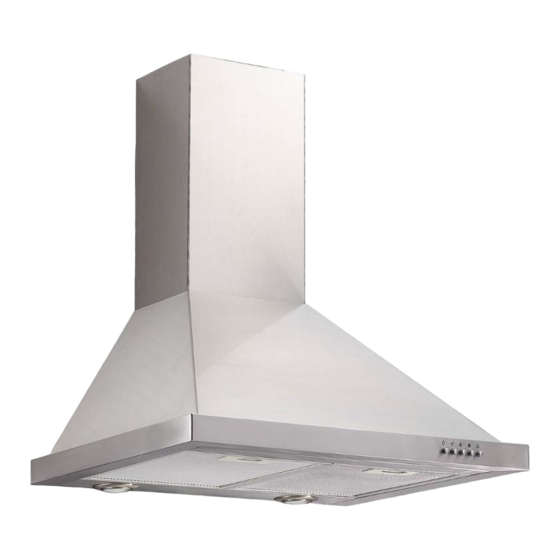

Model – 3503B2-30
The manufacturer disclaims all liability for any damage or injury
caused as a result of not following instructions for installation
contained in the following text.
The cooker hood is used on 120V/60Hz.
Advertisement
Related Manuals for Euro Kitchen Appliances 3503B2-30
Summary of Contents for Euro Kitchen Appliances 3503B2-30
-
Page 1: Read And Save These Instructions
Euro Kitchen Appliances Inc. Delta, BC Canada www.KitchenHoods.ca tel.604 8360517 Model – 3503B2-30 The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text. The cooker hood is used on 120V/60Hz. - Page 2 CONTENT 1…………………………IMPORTANT SAFETY INSTRUCTION 2………………………………INSTALLATION INSTRUCTION 3…………………………………….…….…………….. FEATURE 4…………………………………….………………..…………USE 5……………………………………….…………MAINTENANCE ABNORMITY AND SOLUTION 6……………………………… 7. ……………………………………………..WARRANTY CARD...
- Page 3 (1) IMPORTANT SAFETY INSTRUCTIONS WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally.
- Page 4 a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN – You may be burned. c) DO NOT USE WATER, including wet dishcloths or towels –...
-
Page 5: Grounding Instructions
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION - To reduce the risk of fire and to properly exhaust air, be sure to duct air outside - Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. - Page 6 d) Fix the mounting bracket on the wall(Note: The hood can be installed on both wood wall and brick wall), then secure the cooker hood to it, see Pic2. e) Install the metal duct onto the vent, and vent it outdoor, see Pic3. f) Put the two-pieces U-shaped duct cover on the cooker hood, then adjust the inner duct cover to the appointed height, see Pic4;...
- Page 7 (4) FEATURE 1. The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power low noise electric motor, centrifugal leaf which produces strong suction with low noise, and non sticky grease filter. Easy for cleaning. 3.
- Page 8 (6) MAINTENANCE 6.1 THE CLEANING OF THE CARBON GREASE FILTER MESH The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below. METHOD 1 Put the mesh into 40-50°C clean water, add detergent and soak for 2-3 minutes.
- Page 9 (7) TROUBLESHOOTING Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor does not work The motor jammed bearing Replace motor damaged The internal with of motor off or Replace motor a bad smell from the motor Beside the above mentioned, check the following: Light does not work,...
- Page 10 We will warrant this product free from defects in material and quality for one year from date of purchase. If any problems occur from correct usage, please contact the service department for under warranty service. This warranty does not cover the following: The filter mesh and bulb.
