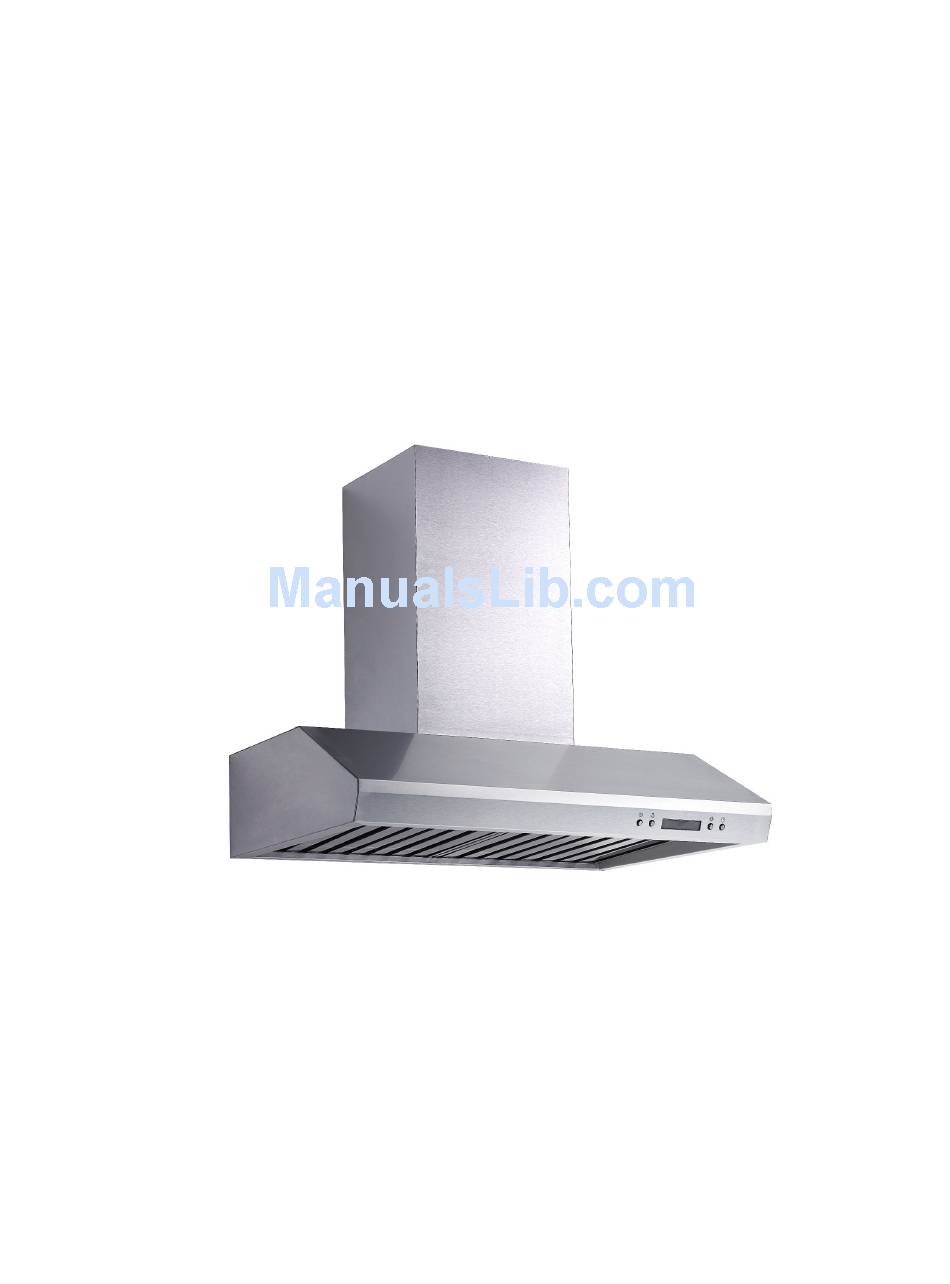

Euro Kitchen Appliances PS101-30 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

READ AND SAVE THESE INSTRUCTIONS

Range Hood User Guide
Imported by:
Euro Kitchen Appliances Inc.
Delta, BC Canada
www.KitchenHoods.ca
tel.604 8360517
Model - PS101-30, 36
The manufacturer disclaims all liability for any damage or injury
caused as a result of not following instructions for installation
contained in the following text.
The range hood is used on 120V/60Hz.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PS101-30 and is the answer not in the manual?

Questions and answers

Related Manuals for Euro Kitchen Appliances PS101-30

Summary of Contents for Euro Kitchen Appliances PS101-30

  • Page 1: Read And Save These Instructions

    Euro Kitchen Appliances Inc. Delta, BC Canada www.KitchenHoods.ca tel.604 8360517 Model - PS101-30, 36 The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text. The range hood is used on 120V/60Hz.
  • Page 2 CONTENT 1…………………………IMPORTANT SAFETY INSTRUCTION 2………………………………INSTALLATION INSTRUCTION 3…………………………………….…….…………….. FEATURE 4…………………………………….………………..…………USE 5……………………………………….…………MAINTENANCE 6………………………………ABNORMITY AND SOLUTION 7. ……………………………………………..WARRANTY CARD...
  • Page 3 (1) IMPORTANT SAFETY INSTRUCTION WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally.
  • Page 4 If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN – You may be burned. c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. d) Use an extinguisher ONLY if: 1) You know you have a Class ABC extinguisher, and you already know how to operate it.
  • Page 5 CAUTION - To reduce the risk of fire and to properly exhaust air, be sure to duct air outside - Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. (3) GROUNDING INSTRUCTIONS This appliance must be grounded.
  • Page 6 e) Install the metal duct onto the vent, see Pic4. f) Put the two-pieces U-shaped duct cover on the cooker hood, then adjust the inner duct cover to the appointed height, see Pic5; drill two Ø8 mm holes in a horizontal line for installation of the other mounting bracket and then fix the bracket .
  • Page 7 (5) FEATURES 1. The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power low noise electric motor, centrifugal leaf which produces strong suction with low noise, and non sticky grease filter. Easy for cleaning. 3.
  • Page 8 .when the motor at its high speed, press the key again, the motor will work at its normal condition. Of course, working at its high speed. 4 The Dec key ,also the switch that control the power-off. .Press the key once, the motor will shift down one level, Continually press the Dec key till the machine at no speed, then the switch control power-off.(the motor stop working),the speed indicator is put out.
  • Page 9 A. Press key ,the is displayed on the display screen, and the motor start work, it is the low position (power on position),and the key also lit. B. Press key once more at the low position, and it transfer to medium position.
  • Page 10 mode, and it is for the hour setting; Press it for the 2nd time: Setting for the minute; Press it for the 3rd time: For the time setting exit and confirm, and it will be repeated again and again (if the 1st time pressing doesn't exceed 2 seconds, then it can't run this operating procedure.) 2.The timer key is the timer setting key when the motor is working.
  • Page 11 METHOD 1 Put the mesh into 40-50°C clean water, add detergent and soak for 2-3 minutes. Wear gloves and clean with a soft brush. Please do not apply excessive pressure or it might be damaged. METHOD 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60°C.
  • Page 12 If the plug or cord is damaged, please replace it with special soft cord. (7) TROUBLESHOOTING Fault Cause Solution The leaf blocked Get rid of the blocking Light on, but motor The capacitor damaged Replace capacitor does not work The motor jammed bearing Replace motor damaged The internal with of motor off...
  • Page 13 Beyond the 12 months warranty period, the purchaser should pay for charge of components and call out. In the event of a service call, please provide the warranty card and receipt of date of purchase. Euro Kitchen Appliances Inc. ---------------------------------------------------------------------- #111-590 Ebury Place Delta, BC V3M6K7 , Canada www.KitchenHoods.ca...

This manual is also suitable for:

Ps101-36
