J7 - C - PREHEAT
J6 - T - TEMP LOCK
J5 - F - CELC / FAHR
J4 - P - 30/60 MINUTES
ADD JUMPER TO CHANGE SETTINGS
Note:
Note:
Note:
Note:
All power supply wires
All power supply wires
All power supply wires
All power supply wires
from control box to stove
from control box to stove
from control box to stove
from control box to stove
must be protected by
must be protected by
must be protected by
must be protected by
metal conduit.
metal conduit.
metal conduit.
metal conduit.
IMPORTANT!
IMPORTANT!
IMPORTANT!
IMPORTANT!
Loose connections or connectors
Loose connections or connectors
Loose connections or connectors
Loose connections or connectors
may cause electrical shortage.
may cause electrical shortage.
may cause electrical shortage.
may cause electrical shortage.
Make sure all connections and
Make sure all connections and
Make sure all connections and
Make sure all connections and
connectors are firmly secure.
connectors are firmly secure.
connectors are firmly secure.
connectors are firmly secure.
4
4
4
4
Commander Controls Installation & Wiring
Commander Controls Installation & Wiring
Commander Controls Installation & Wiring
Commander Controls Installation & Wiring
For supply connections, use suitable AWG wires suitable for at least
o
o
90 C (190 F).
Figure 3 3
Figure 3 3
Figure 3 3
Figure 3 3
Commander Controll KW2 - KW6 Power Supply
Commander Controll KW2 - KW6 Power Supply
Commander Controll KW2 - KW6 Power Supply
Commander Controll KW2 - KW6 Power Supply
Figure 4 4
Figure 4 4
Figure 4 4
Figure 4 4
CAUTION: THE MANUAL RESET LIMIT SHALL BE WIRED IN THE CIRCUIT
(use copper wire only) - Ground wire must be insulated.
(120v or 240v Maximum 1 Phase)
(120v or 240v Maximum 1 Phase)
(120v or 240v Maximum 1 Phase)
(120v or 240v Maximum 1 Phase)

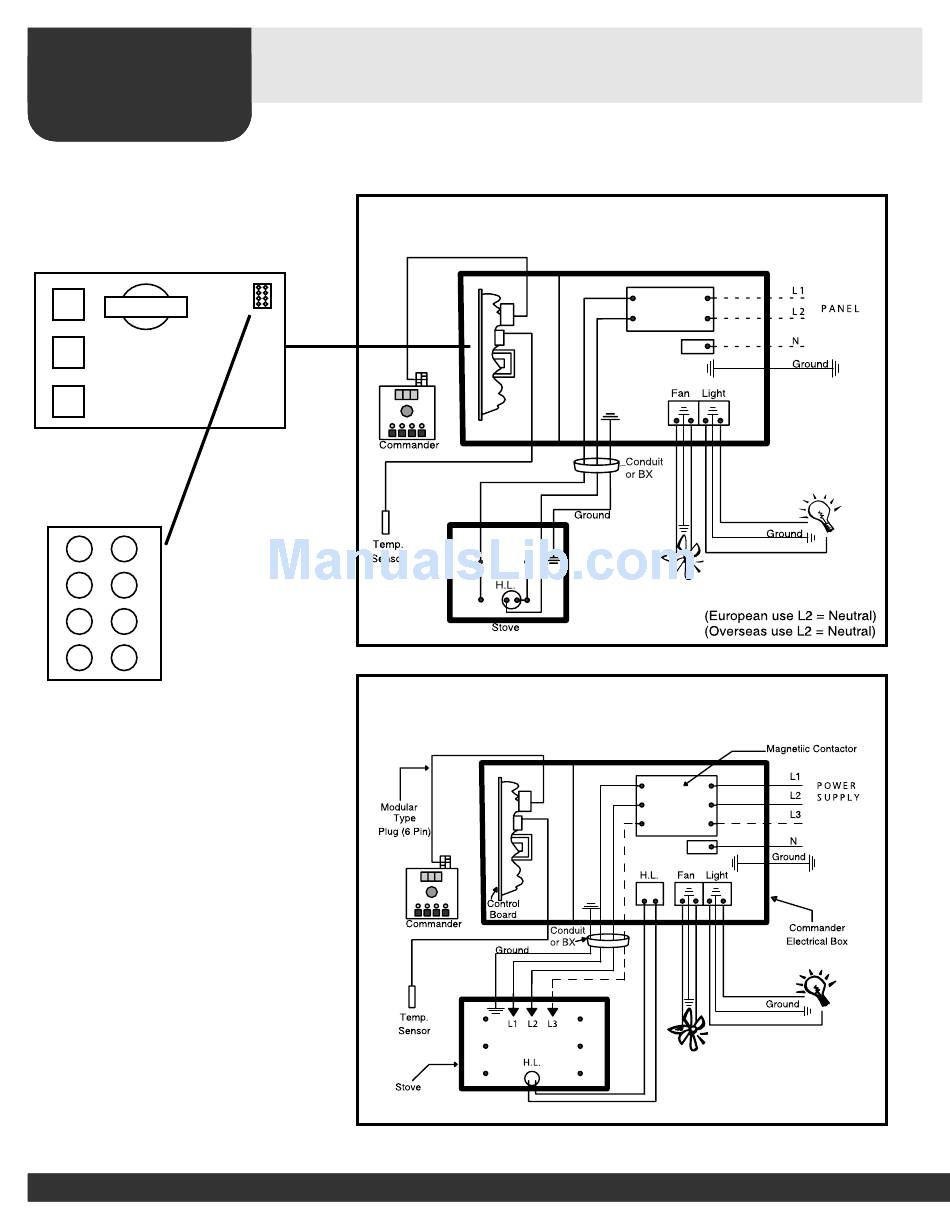

Commander Control Wiring Diagram
Commander Control Wiring Diagram
Commander Control Wiring Diagram
Commander Control Wiring Diagram
240v/208v 1 phase
240v/208v 1 phase
240v/208v 1 phase
240v/208v 1 phase
Over 30 Amps or Any 3 phase
Over 30 Amps or Any 3 phase
Over 30 Amps or Any 3 phase
Over 30 Amps or Any 3 phase
www.saunacore.com
www.saunacore.com
www.saunacore.com
www.saunacore.com
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the Heaters and is the answer not in the manual?
Questions and answers
What size wire to use from the controler to the heater (I.e. 14/2 )
The power supply wires from the Saunacore heater controller to the heater must use a suitable AWG wire rated for at least 90°C (190°F) and must be copper.
