SAUNACORE
Standar d Model
•
Special Edition Model
•
St eam Vaporizer Model

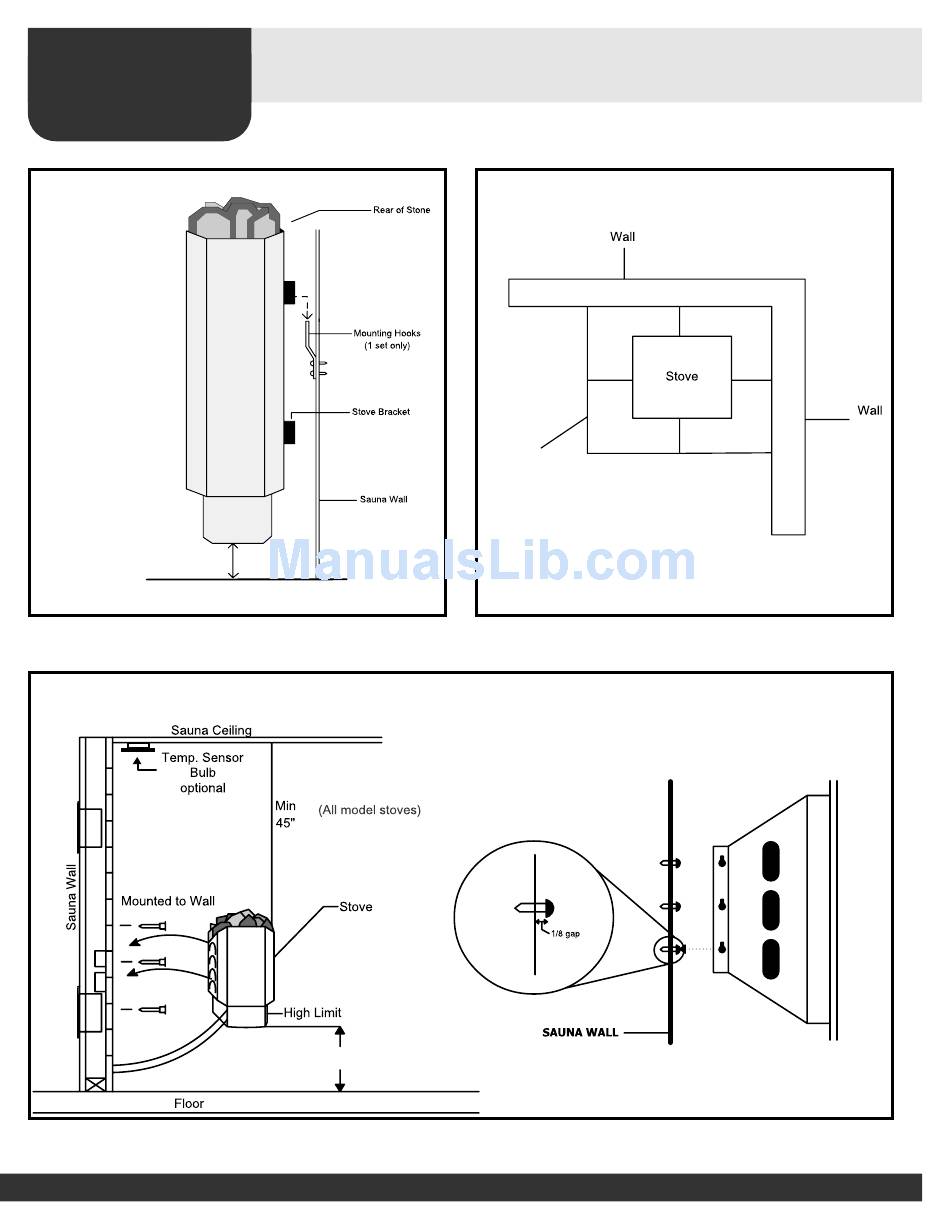

Mounting
•
Diagram for
Residential
Model
Sauna Room
A non-metallic guard rail must be away from the residential sauna heater models by a minimum
of 4 inches, and the residential heater models must be minimum 2 inches away from any vertical
surface. There must be a minimum of 45 inches clearance above the heater to the ceiling and
a minimum of 2 inches above the floor.
min 2 inches
Figure 1 1 7
min 2 inches
Standard HD & ULT C6+1
7.5"
9"
Heater Guard must
be from floor to ceiling
Stove must have:
A non metallic guard rail must be away from sauna heater by a minimum
of 9 inches, and the heater must be a minimum of 7.5 inches away from
any vertical surface. There must be a minimum of 45 inch clearance from
the top of the heater to the ceiling.
Mounting Diagram - Ultimate

Heater Mounting

7.5"
9"
(applies to Canadian application)
Figure 1 1 8
Figure 19
12
