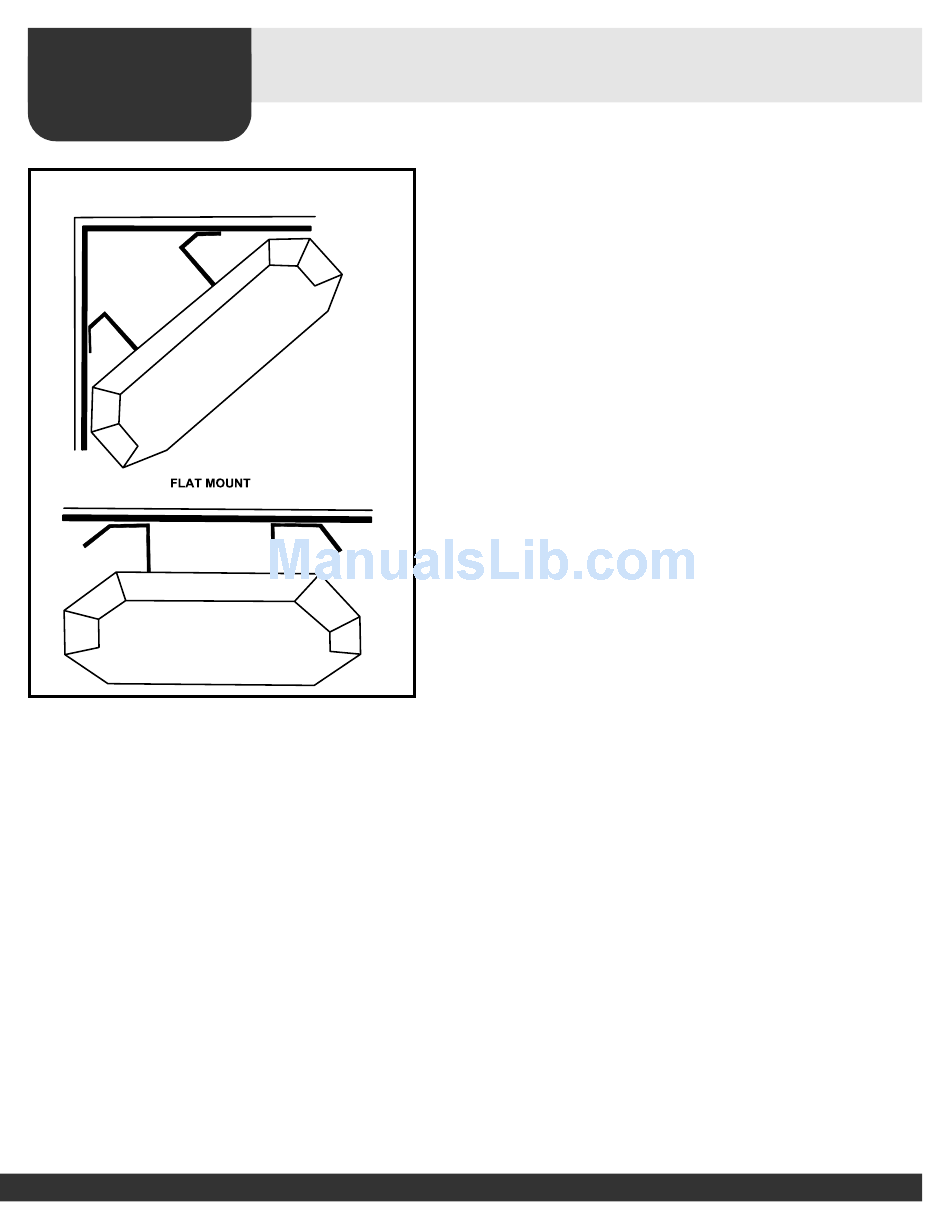

Top View of SAUNACORE Heaters
CORNER MOUNT
IT IS UNLAWFUL TO INSTALL THIS UNIT WITHOUT
FIRST OBTAINING A PERMIT FROM THE LOCAL
ELECTRICAL INSPECTION AUTHORITY
Sauna heater controls enclosure box and contactor
enclosure box are NOT supplied with the heating units.
Control Box: 3.5" deep x 3.75" high x 5-19/32" wide.
Volume (63 Cu.in.)
Contactor Box: min 6" wide x 6" high x 3" deep
Volume (108 Cu.in.) minimum
All electrical wiring between sauna heater, high power controls,
and magnetic contactor must be through a liquidtight metal
conduit raceway.
The liquidtight metal conduit must be CSA or UL certified and labelled.
With the following specifications:
105C/221F Dry Temperature Rating
Adequate for 600 volt and lower circuits
Hazardous location per NEC 501
In compliance with UL 360
In accordance with Article 350 of National Electrical Code
CSA/UL Certified & Labelled on Conduit
The total connected load should not be more then
80% of the rating of the overcurrent devices.
Figure 1
INSTALLATION INSTRUCTION FOR ALL SAUNACORE KW
HEATING UNITS
SAUNACORE KW is installed in a corner of the Sauna room or on
the straight wall by means of two mounting brackets (see
illustration).
The unit should be placed 2" inches (minimum) from the floor,
and not closer than 45 inches to the ceiling.
Lift the unit 2 inches (minimum) from the floor, hold it against
the corner or straight wall and mark the location. Fasten the
brackets with 1-1/2" mounting screws supplied. Be sure that the
mounting screws are fastened not only through the soft wood lining
of the sauna room but also into a solid piece of strapping, 2"x 4"
etc., to hold the weight of the unit (approximately 50lbs.with the
rocks).
First perform the electrical hook up. CAUTION: This work should be
done by a Licensed Electrician. Then slide the unit back onto the
brackets. The Saunacore heating units that do not have a control
built in should mount the control box on the outside wall of the
sauna room beside the door. The thermostat sensor bulb only, is to
be located inside the sauna room and is to be mounted on the
ceiling above the SAUNACORE heater.
For electrical hook up follow the wiring diagram. This work should
be done by a Licensed Electrician only.
Do not install a Showerhead or water spraying device above
the heating unit.
All wiring to the SAUNACORE heater must be routed away from any
direct radiation from the SAUNACORE Heating unit, and be
made with liquid tight conduit.

SAUNA ROCKS

After installation of the SAUNACORE Heating unit, carefully place all
the igneous Sauna rocks which are supplied onto the rock basket at the
top of the sauna stove. Rocks do not make contact with heating element
THIS UNIT MUST BE OPERATED WITH THE ROCKS IN PLACE.
SAUNA ROCKS
Placement of Sauna Rocks
Do not operate the sauna heater without the stones. Use only the
stones that are supplied with the sauna heater. Wash stones with
water and place them inside of the heater so that rocks are
between and around the heating elements onto adjustable tray.
Take care, however, not to force the rocks between the elements.
Use smaller stones first and continue to fill the heater with larger stones.
You may not need all of the stones. Make sure the adjustable rock tray
is not lower than level 3 in the heater cavity
STONES SHOULD BE PLACED LOOSELY WITHIN THE HEATER SO
THAT THERE IS AMPLE HEAT CIRCULATION AROUND THEM. STONES
SHOULD ALSO COVER THE HEATING ELEMENTS COMPLETELY!
POURING WATER DIRECTLY ON EXPOSED ELEMENTS COULD
GREATLY DECREASE THE LIFE OF THE ELEMENTS!

Installation Instructions

Certified to CAN/CSA Std. No. 164
Conforms to UL. Std. 875
(STANDARD, SPECIAL EDITION, STEAM VAPORIZOR MODEL)
