Heater Gaurd; Temp-Limiting Control; Electrical Outlets; Heater Guard - Saunacore Heaters Installation Manual & Owner's Manual

SAUNACORE
Sauna Room
STD, SE, SV, ULT Models
Sauna R
Standard HD & ULT C6 +1
(applies to Canadian application)
Note: Warranty is void on Saunacore heaters and
controls if the installer or electrician fails to
follow the necessary wiring information as
provided in this wiring diagram or fails to follow
any and all applicable codes pertaining to the
installation of this product.
2 2
2" min

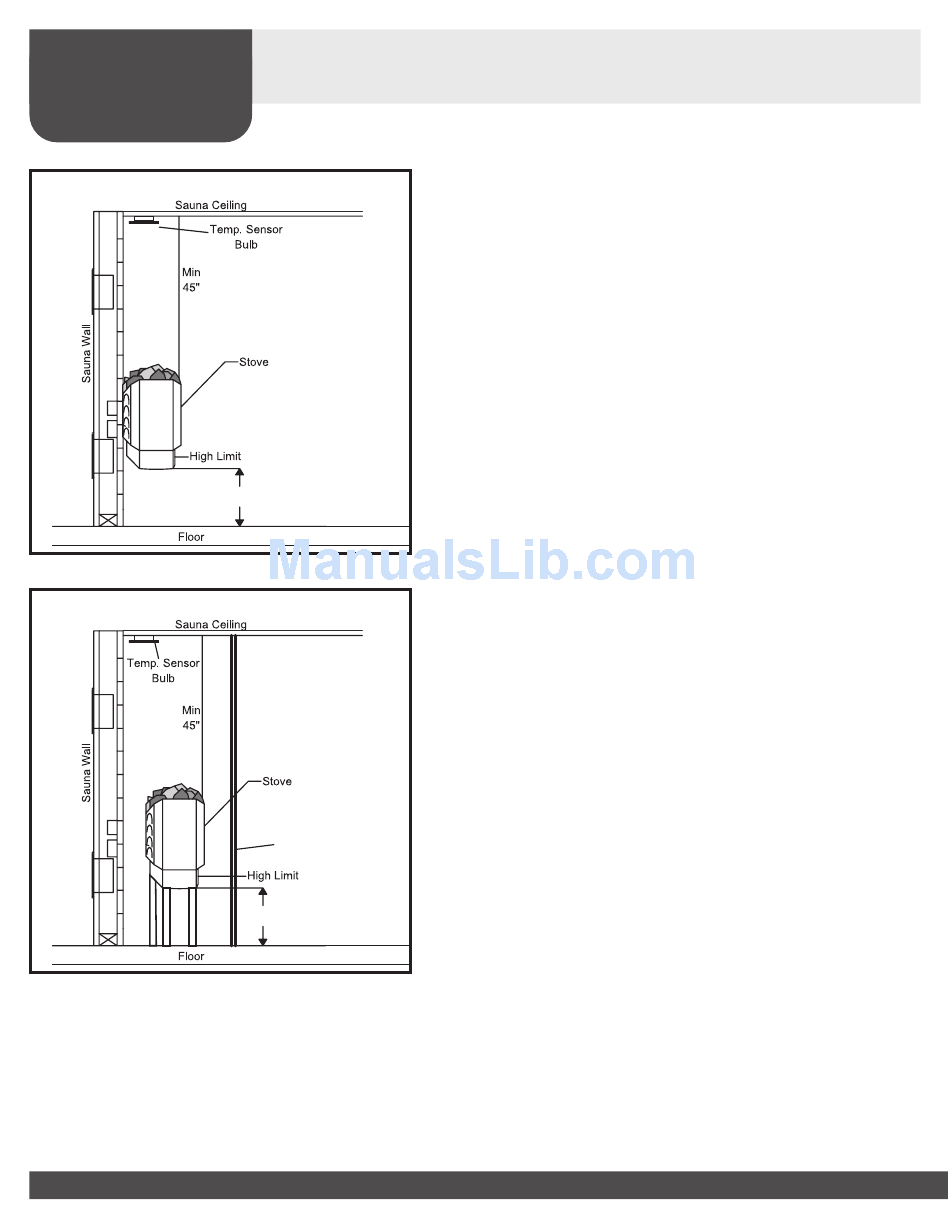

F F i i g g u u r r e e 2 2
oom

Heater Guard

2" min
F F i i g g u u r r e e 3
Installation Instructions

HEATER GAURD

A non metallic Guard shall be used and located not closer than 6"
from the SAUNACORE Heater.
CAUTION
If the manually-resettable Temperature-limiting Control (Hi-Limit)
trips frequently, a Qualified Serviceman should be contacted.

TEMP-LIMITING CONTROL

Each heater is equipped with a high limit control switch as a safety
device. If an abnormal heating condition should occur, the heater
will automatically shut off. The high limit switch will need to be
reset manually before the heater will operate. To reset the high
limit, locate the reset button (bottom front) and push inward until
the contactor engages. If the reset button continues to trip, contact
a qualified service person. If using GFI and tripping occurs heater
must be operated first with non GFI breaker to bake elements
(remove initial moisture that may cause GFI to trip)
(Hi-Limit Tripping Cause - Refer to Page 16)

Electrical Outlets

Electrical outlets are not permitted in a sauna room. If
speakers are installed in a sauna, they should not be installed
higher than 2 feet from the floor and should be located away from
the sauna heater.
Heater Guard
A heater guard rail is necessary to protect the sauna bathers from
the hot surfaces of the sauna heater. The guard rail should be
attached to the wall and should not be placed higher than the top
of the heater, below the rock line.
guard must extend up to ceiling. (Fig 3)
the
Warnings!
• Do not smoke, use alcohol, or exercise in the sauna.
• Do not exceed 30 minutes in the sauna at one time as
excessive exposure can be harmful to your health.
• Persons in poor health should consult a physician prior to
using the sauna.
• Do not place any combustible material on or over the sauna
heater.
• At no time should towels, bathing suits, buckets or dippers
or any other flammable material be placed on or over the
heater.
• Use only clean tap water on the sauna stones. Do not use
any chemically treated water (such as spa or pool water) on
the heater at any time. Use of chemically treated water can
result in rapid oxidation of the heater components, voiding
warranty.
heater
STD(HD) & ULTC6 (ED)
