Mechanical Controls—Wiring - Saunacore Heaters Installation Manual & Owner's Manual

SAUNACORE
European Connection
( L2 = N - "Neutral" )
For supply connections, use suitable
AWG wires suitable for at least 90 C
o
(Use copper wire only).
(190 F).
Ground wire must be insulated.
Mechanical control must be installed outside
of the sauna room, into a 3 gang masonry
electrical box.
When a magnetic contactor is used, it also
must be installed into an appropriate metal
electrical enclosure box outside the sauna.
(For control and contactor box sizes refer to
page 7 of this manual).
Inline Fuse: 5 amp 240 Volts MAX
(Offers Coil Protection)
Note:
All power supply wires
from control box to stove
must be protected by
metal conduit.
IMPORTANT!
Loose connections or connectors
may cause electrical shortage.
Make sure all connections and
connectors are firmly secure.

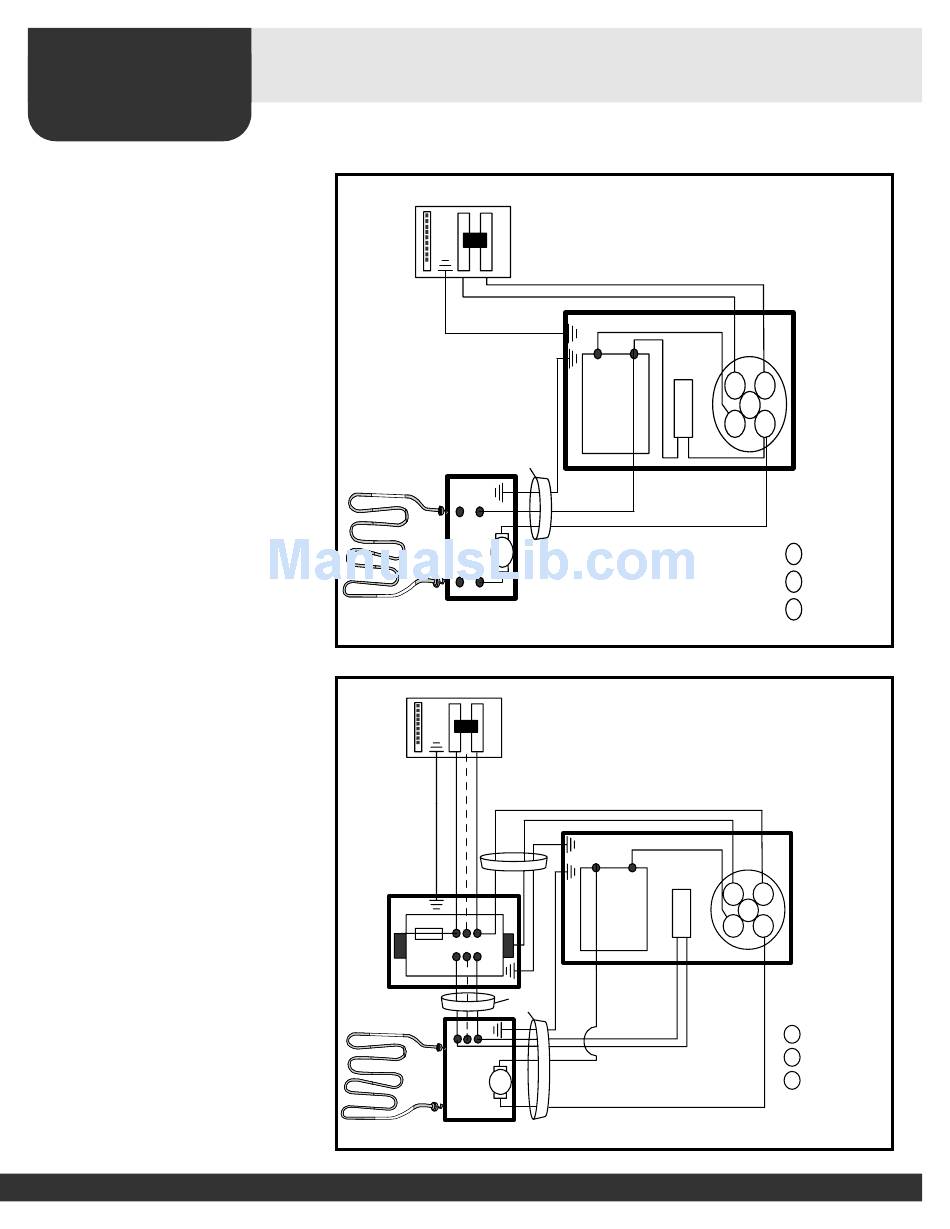

Mechanical Controls—Wiring
CAUTION: THE MANUAL RESET LIMIT SHALL BE WIRED IN THE CIRCUIT.
Figure 1 1 2
Breaker Panel
o
Figure 1 1 3
Breaker Panel
Ground
Inline Fuse
Coil
Mechanical Control
(120v/240v/1Phase 30 Amps and Under)
L2
L1
Ground
Ground
A
Conduit
or BX
H.L.
Heater
(240v/208v/1 Phase o
L3
L1 L2
Conduit
Ground
or BX
A
D
Ground
Conduit
or BX
H.L.
Heater
(wall or built-in)
L1 L2
B C
T1 T2
MECHANICAL
CONTROL
Thermostat Control
A
240v Pilot Light
B
Timer
C
Mechanical Control
v
er 30 Amps and any 3 Phase)
L2
L1
B C
T1 T2
MECHANICAL
CONTROL
Thermostat Control
A
240v Pilot Light
B
Timer
C
