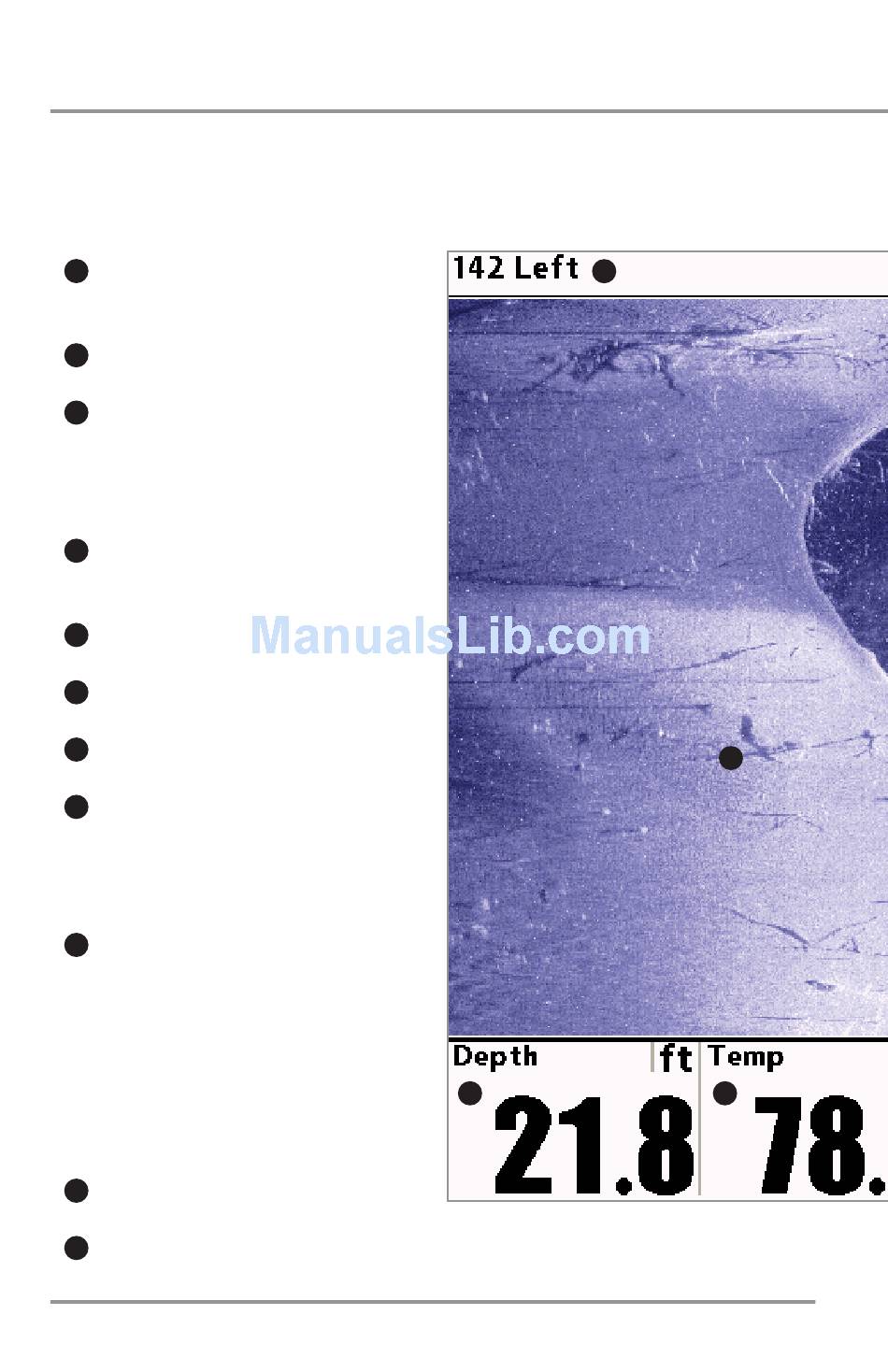

What's on the Side Imaging Display

(1197c SI Combo models only)
Side Imaging displays a number of easily recognizable features that allow for accurate interpretation of
sonar return. For example, rock and gravel provide a clearer sonar return than mud and sand because of
that face away from the transducer. You can find a number of easily recognizable features on the Side
following items:
1 Depth - water depth; can be set to alarm when the
water becomes too shallow.
Temperature - water surface temperature
2
Speed - if a Speed accessory or GPS Receiver is
3
attached, the 1100 Series™ can display the speed
of the boat, and can keep a triplog of nautical or
statute miles traveled.
Course - the current direction the boat is traveling
4
measured in degrees from North.
Voltage
5
Bottom Return
6
7 Topography Changes
The water column shows the relative depth of the
8
water under the boat at a given time. Variations in the
width of the water column show variations in the
distance to the bottom as the boat passes over.
9 Shadows result from a lack of reflected sonar from
a particular area, and can be more valuable for
interpretation than the sonar reflected by the object
itself. Use shadows to help you see the image in 3
dimensions, oriented in space. You can gain insight
into the actual shape of an object, or the depth to
which it has sunk into the bottom, through shadows
on the display.
Side Imaging Range
10
Boat Icon
11
1
54
10
9
2
