Humminbird 1157c Combo Installating And Operation Manual page 22

1 Gimbal Mounting Bracket
2 Grommet
3 Hole Cover
9. Thread the cables through the opening in the back of the cable collector cover.
10. Insert cable connectors into the proper recesses on the cable collector insert. The cable
connectors are keyed to prevent reverse installation, so be careful not to force the connectors into
the wrong slots. If you don't have a cable for every hole in the insert, install the blank plugs to
protect the control head from the weather.
1
3
11. Line up the cable collector insert and cover, with the keying feature, then slide the cover into
place on the insert.

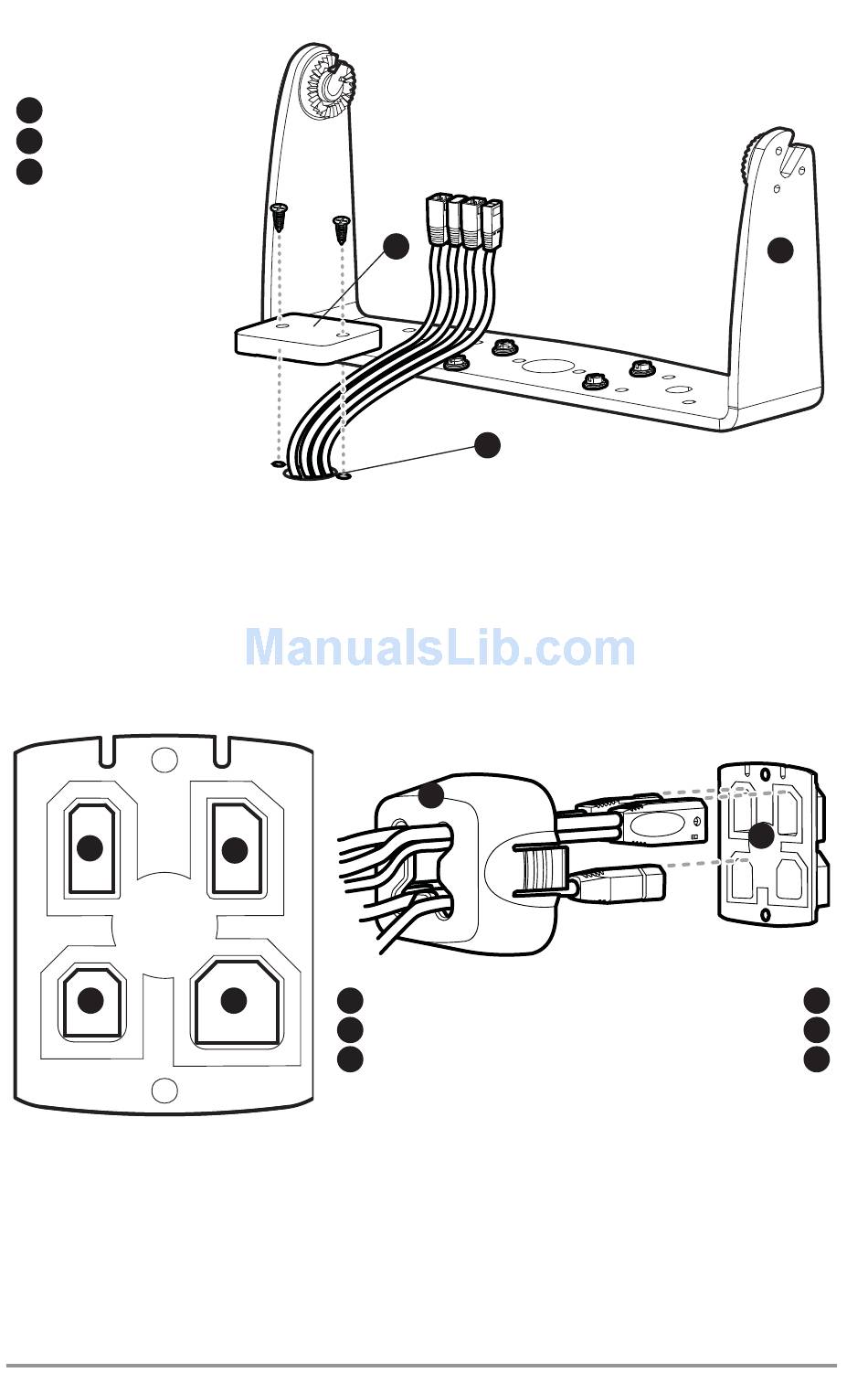

Cables Routed Behind Mounting Bracket
Inserting the Cables into the Cable Connector Insert
2
4 1 Power
2 Communications
3 Temp/Speed
3
2
5
12
1
6
Transducer 4
Cable Collector Cover 5
Cable Collector Insert 6
