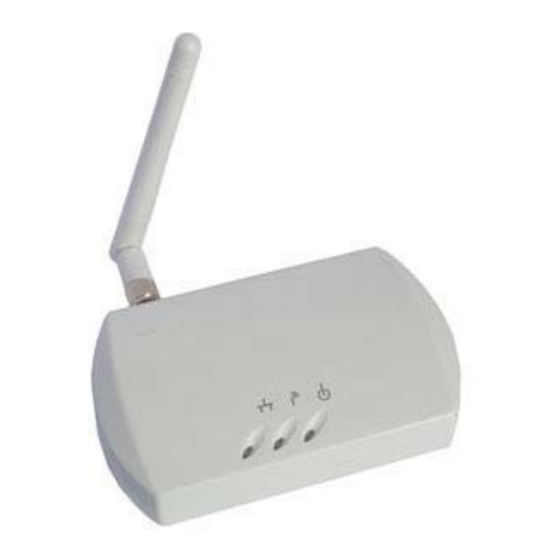

Z-Com XG-580 PLUS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

XG-580 PLUS
User's Manual
FW 4.1.8.0
1

Advertisement

Table of Contents
loading

Related Manuals for Z-Com XG-580 PLUS

Summary of Contents for Z-Com XG-580 PLUS

  • Page 1 XG-580 PLUS User’s Manual FW 4.1.8.0...

  • Page 2: Copyright

    Copyright There is no any clear or implicit assurance in the user's manual of our company, including the assurance of selling or installing for the special purpose . There are rival's volumes to carry on the power to alter or revise in our company, if alter and forgive me for not issuing a separate notice.

  • Page 3: Table Of Contents

    Table of Contents COPYRIGHT ........................2 FCC INFORMATION......................2 ABOUT THE MANUAL .......................2 1. XG-580PLUS INTRODUCTION ..................4 ........................4 PPEARANCE OF RODUCT ........................4 EATURES AND ENEFITS ......................5 EPRESENTATIVE PPLICATION ........................... 5 YSTEM EQUIREMENT 2. HARDWARE INSTALLATION ..................5 ............................5 RODUCT ........................

  • Page 4: Xg-580Plus Introduction

    1. XG-580PLUS Introduction Appearance of Product Features and Benefits Representative Application System Requirement The XG-580PLUS is quite a handy device to have around, with dedicated one LAN/WAN port, it can be communicate with other mobile devices enabled for 802.11g standard-base Wireless LAN connectivity.

  • Page 5: Representative Application

    Representative Application The XG-580PLUS offers a fast, reliable, high-speed, and high security solution for wireless clients access to the network in applications like these: 1. Remote access to corporate network information E-mail, file transfer and terminal emulation. 2. Difficult-to-wire environments Historical or old buildings, asbestos installations, and open area where wiring is difficult to deploy.

  • Page 6: Mechanical Description

    Use Manual*1 If any of the above items are not included or damaged, please contact your local dealer for support. Mechanical Description Connect the adapter to your Ethernet-enabled device A. Combine the antenna with the product to wirelessly connect to the 802.11g networks. B.

  • Page 7: Initialize

    Besides, this is also used when you forget the password. Hardware Installation Take the following steps to set up your Access Point. Site Selection Before installation, determine the Access Point location. Proper placement of the Access Point is critical to ensure optimum radio range and performance. You may use the Site Survey and Access Points Browser utility (The utilities included with the wireless PC Card) to choose a proper placement for your Access Point.

  • Page 8: Configuring Xg-580Plus

    3. Configuring XG-580PLUS Using the Web Management Using the Web Management The built-in Web Management provides you with a user-friendly graphical user interface to manage the AP. The AP with an assigned IP address (e.g. http://192.168.0.2) will allow you via web browser (e.g.
  • Page 9 The AP main page contains four items. Information: General: This item displays the general information of the AP such as the MAC address and Firmware Version.
  • Page 10 Configuration: General: You may make the settings on the AP such as Access Point Name, Radio mode, ESSID, channel and password etc.
  • Page 11 AP Name: In this field, you may enter any name. This will enable you to manage your AP more easily if you have multiple Access Points on the network. Besides, Access Point Name can be used to prevent you from forgetting an IP Address and fail to access the website. Try to type the nickname you like to identify the website, then press the button of “Apply”...
  • Page 12 ESSID: The ESSID is a unique ID used by Access Points and Stations to identify a wireless LAN. Wireless clients associating to any Access Point must have the same ESSID. The default ESSID is ANY. The ESSID can have up to 32 characters. Channel: Select a clear and available channel as an operational channel for your wireless station adapter when it performs as Ad-Hoc mode.
  • Page 13 more secure data protection than the WEP. Here you can select the WPA with PSK mode to improve the data security and privacy during wireless transmission. The present WPA supplied with this adapter is used in a pre-shared key mode, which does not require an authentication (Radius) server.
  • Page 14 Parameter Log The Parameter log item allows you to save settings to the local hard drive by clicking“Save”. When you click the “Browse” button, you can select the saved setting files.To click “Load”, the saved settings will be loaded back.
  • Page 15 Advanced...
  • Page 16 RTS Threshold: Request to Send Threshold. The packet size that is used to determine if it should use the CSMA/CD(Carrier Sense Multiple Access with Collision Detection)mechanism or the CSMA/CA mechanism for packet transmission. With the CSMA/CD transmission mechanism, the transmitting station sends out the actual packet as soon as it has waited for the silence period. With the CSMA/CA transmission mechanism, the transmitting station sends out an RTS packet to the receiving station, and waits for the receiving station to send back a CTS (Clear to Send) packet before sending the actual packet data.
  • Page 17 The Delivery Traffic Indication Message. Specifies the data beacon rate between 1 and 255. Default: 1 Preamble Type: A long transmit preamble may provide a more reliable connection or slightly longer range. A auto transmit preamble gives better performance. Enable Protection: The function protect link quality.
  • Page 18 Statistics General This item will allow you to monitor the connection status when set to AP mode such as the Mac Address, Link Status, Rate Type as well as RX/TX from Ethernet packets. When set to Client mode, you may also open the General page to view the available Access Points around your environment.
  • Page 19 Firmware Upgrade Here, you can upload the latest firmware of the wireless adapter. You may either enter the file name in the entry field or browse the file by clicking the “Browse” button. Then click the “Apply” button to begin to upgrade the process.

  • Page 20: Troubleshooting

    4. Troubleshooting Technical support Technical support If you meet difficulty and please contact our supplier in the course of installing and using the AP.

  • Page 21: Appendix

    Appendix Technical Specifications Glossary ASCII Technical Specifications Feature Description IEEE 802.11b/g WLAN Station Adapter Host interface One 10/100BaseT R-45 LAN port with Auto-MDIX Antenna One external dipole antenna 11g Mode: 54, 48, 36, 24, 18, 12, 9, 6 Mbps Data Rate 11b Mode: 11, 5.5, 2, 1 Mbps 11g: TX:650mA ;...
  • Page 22 Glossary The abbreviation of Access Point, refer in particular to the wireless access point. The abbreviation of Broadband Wireless Access Point, does not have the network bridge to refer in particular to broadband . IEEE 802.11 Include IEEE 802.11a/b/g。 Show that there is important information that reminds you with better using the Notice equipment.
  • Page 23 ASCII You can dispose sexadecimal number system counting or ACSII one yard of keys encrypted as WEP . Sexadecimal number system is made up by 0-9 and A-F (letter does not distinguish capital and small letter ); ACSII yard is by 0-9 figures , A-F , a-f (letter distinguishes capital and small letter), and the punctuation mark makes up .
