Dimensions 77 - MHG Heating ProCon 16 Installation And Operating Manual

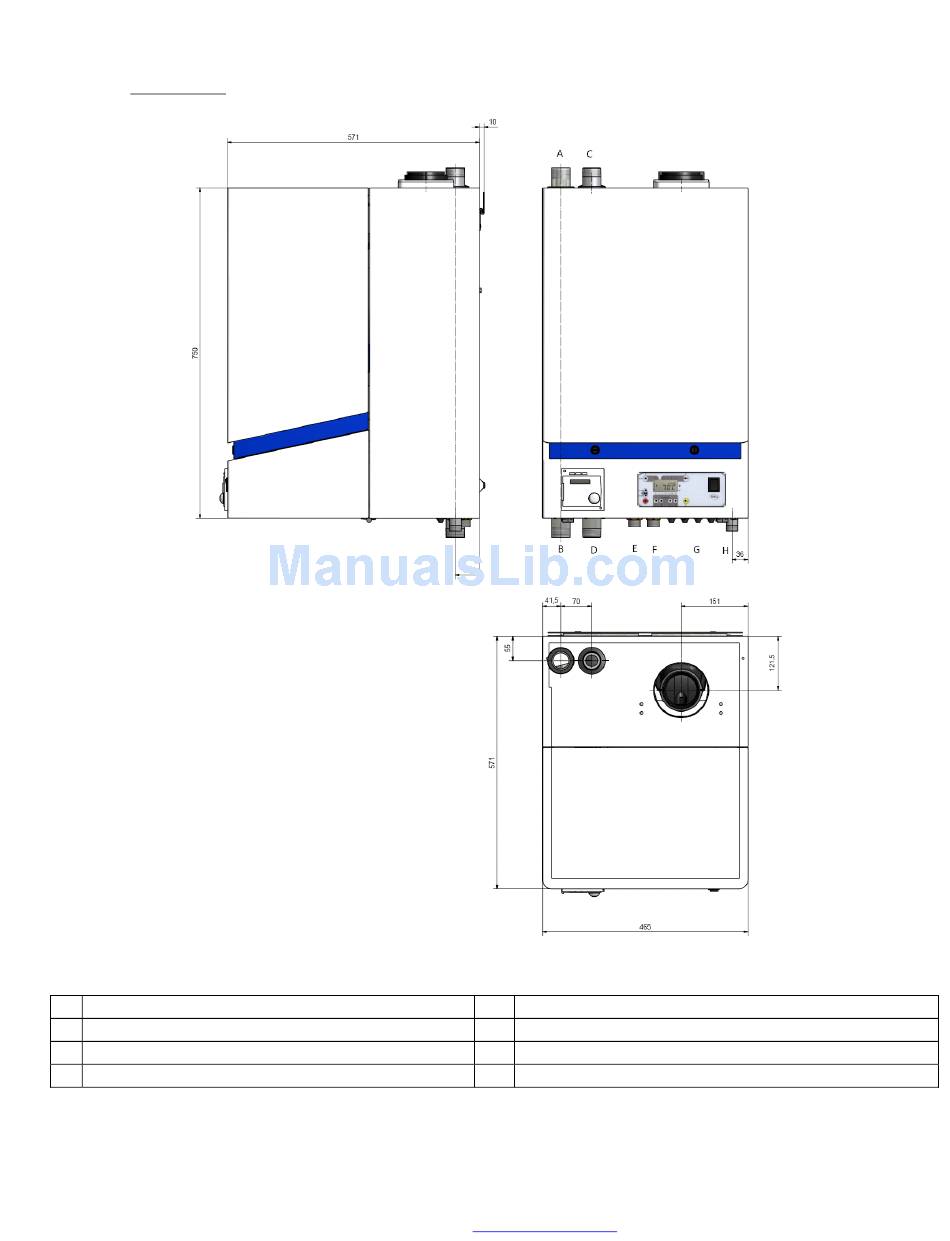

3.2 Dimensions. 77 Boiler
Legend
A Heating Return Top Connection Option 1 ¼"
B Heating Return Bottom Connection Option 1 ¼"
C Heating Flow Top Connection Option 1 ¼"
D Heating Flow Bottom Connection Option 1 ¼"
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone 08456 448802 Fax 08456 448803 Email
© MHG Heating Ltd
E
F Condensate Cleanout Connection ¾" Cap
G
H
info@mhgheating.co.uk
010109
Condensate Outlet ¾" BSP Plastic
Cable Entry Grommets
Gas Inlet ¾"
